INTRODUCTION
The EW2 scan doubler enables a VPE editor with CGA (TTL) video display to be connected to a standard VGA
/ XGA monitor. This applies to VPE-131 through VPE-251 editors. VPE-300 and DPE-500 series editors are
already VGA compatible.
CGA requires a monitor that will lock to a lower frequency horizontal scan than is supported by standard VGA
monitors. The EW2 scan doubler reads the original video signals into memory at the original frequency and
sends a signal out at twice the original rate. Due to the technology involved, occasionally pixels are misplaced.
The output signal is compatible with low-cost and easily available VGA monitors.
The EW2 module (3.9 in. x 2.3 in. x 1.1 in.) accepts CGA video input signals. It connects directly to the VPE
editor via a 9-pin D male to 9-pin D female lead supplied by Editware.
The following is the EW2 output when using an Editware Editor: Output standard = VGA 640x480 mode;
Resolution = 640 horizontal x 480 vertical pixels; Horizontal Sync Frequency = 31.5KHz; Vertical Sync
Frequency = 50Hz PAL and 60Hz NTSC.
Video is output via a 15-pin high density D female socket.
Power is supplied by a 9v to 12v external Power Supply on a DC coaxial connector with positive center pin.
The standard EW2 unit is programmed with default parameters suitable for a CGA input with a typical VGA
monitor output. It also has a range of manual adjustments to modify the signal capture and picture position.
These adjustments are made with the PS/2 style keyboard supplied by Editware. Adjustments made are stored
in non-volatile memory and retained when power is off (default settings can be restored if required).
For non-Editware editor applications, see EXTENDED EW-2 ADJUSTMENTS FOR NON-EDITWARE
EQUIPMENT at the end of this document.

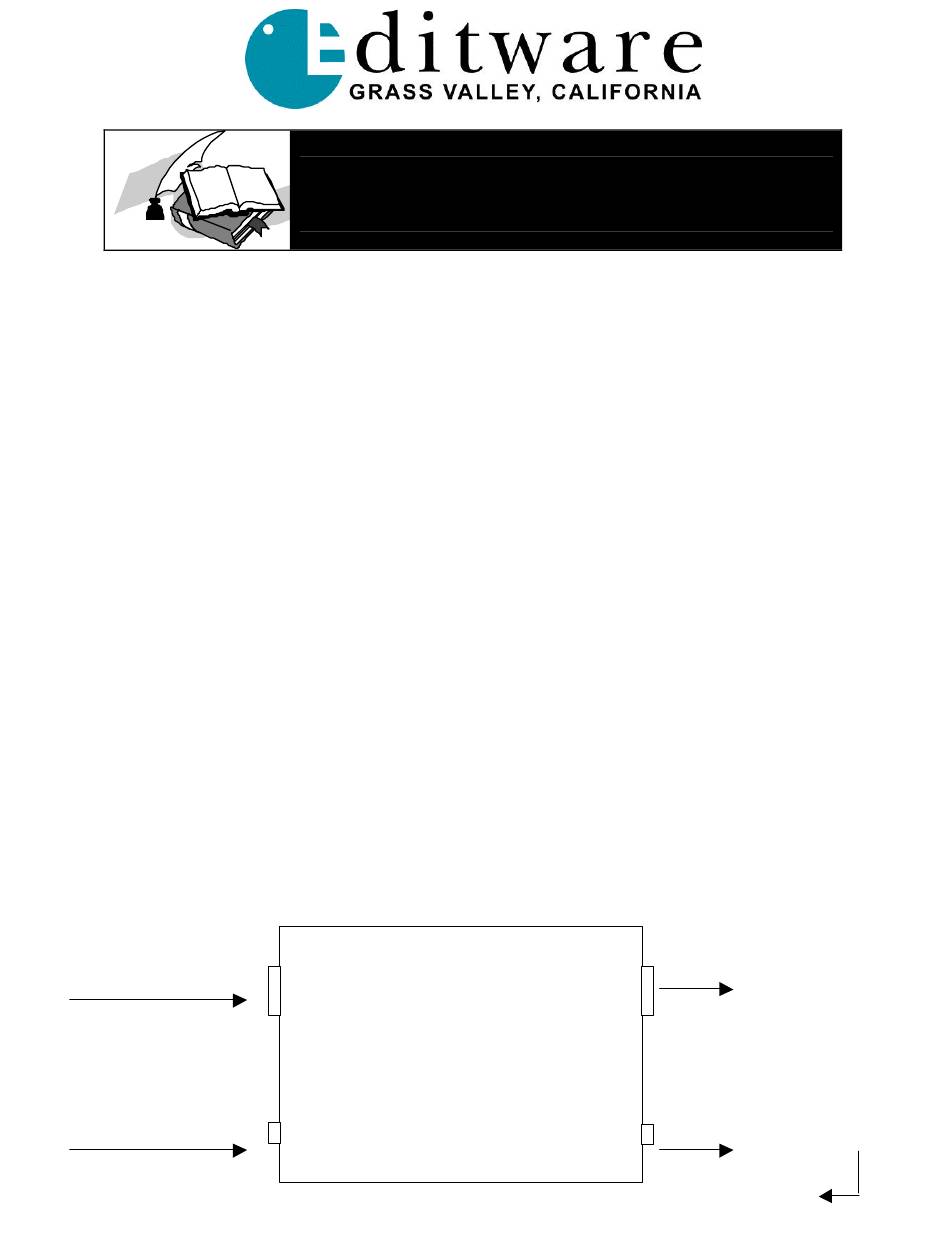

MAKING THE CONNECTION
CGA EDITOR OUTPUT
(Editware supplied cable)
/2
PS
KEYBOARD
(Editware supplied keyboard)
EW2 EGA/CGA
VGA
TO
EW2
CGA
9
PIN INPUT
/2
.
PS
KBD
PORT
CONVERTER
TECH NOTE
- CGA to VGA Converter
15
PIN
MONITOR
12
DC
V
1 of 3
Mod. 3/13/02
VGA MONITOR
AC INPUT
03/13/2002
Advertisement
Table of Contents
Related Manuals for Editware EW2
Summary of Contents for Editware EW2
- Page 1 The output signal is compatible with low-cost and easily available VGA monitors. The EW2 module (3.9 in. x 2.3 in. x 1.1 in.) accepts CGA video input signals. It connects directly to the VPE editor via a 9-pin D male to 9-pin D female lead supplied by Editware.
- Page 2 13. Press the [S] key. This will save your default settings. 14. Press the [Q] key. All three LED’s will go out. TO QUIT ANY MODE WITHOUT SAVING PRESS THE KEY THREE TIMES POWER DOWN AND THEN POWER UP EW2 EGA/CGA 2 of 3 03/13/2002 CONVERTER...
- Page 3 3.9 in. high x 2.3 in. wide x 1.1 in. deep 100mm high x 60mm wide x 28mm deep EXTENDED EW-2 ADJUSTMENTS FOR NON EDITWARE EQUIPMENT These adjustments are to be used only by NON-editor applications. Use these adjustment modes like the others but substitute the appropriate letter.
