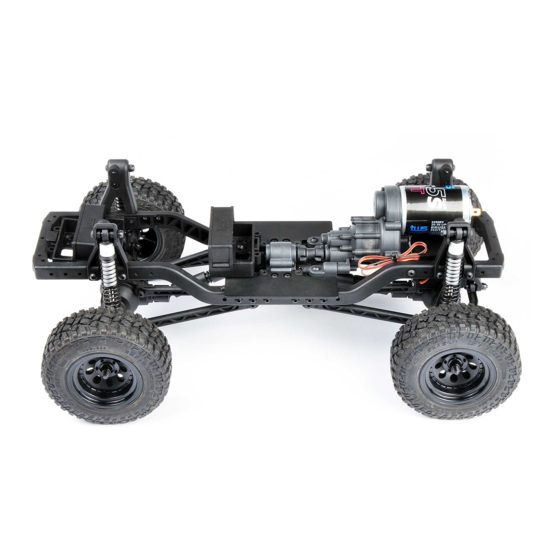

tws CTS CHASSIS User Manual

Rc 4wd high performance vehicle
Hide thumbs

Advertisement

Quick Links

Download this manual
CTS
CTS
CHASSIS
CHASSIS
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CTS CHASSIS and is the answer not in the manual?

Questions and answers

Summary of Contents for tws CTS CHASSIS

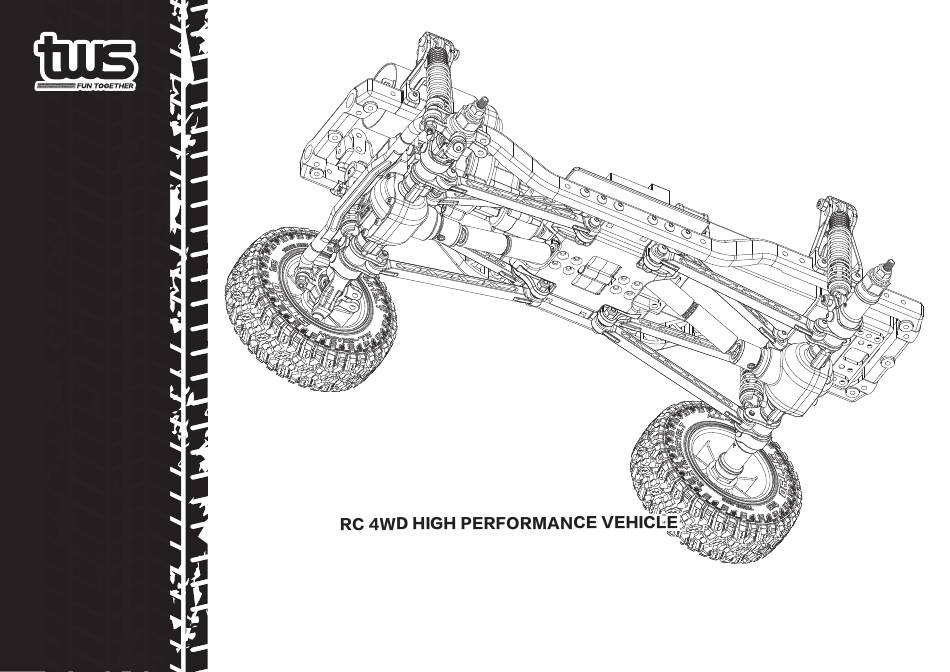

  • Page 1 CHASSIS CHASSIS USER MANUAL...
  • Page 2 INDEX STEER SYSTEM MODE GUIDE STEP 5 CHASSIS ASSEMBLY Step 5-1 transfer case & chassis assembly STEP 1 FRONT AXLE ASSEMBLY Step 5-2 transmission system & frame assembly Step 1-1 lower link & link mount assembly Step 5-3 front crossmember & shock tower assembly Step 1-2 knuckle carrier &...
  • Page 3 CHASSIS MOUNTED SERVO AXLE MOUNTED SERVO More scale look More direct control Default assembly Please refer tws website to assembly...
  • Page 4 SAFETY PRECAUTIONS AND WARNINGS All manuals and other collateral documents are subject to change at the sole discretion of TWS MODEL Co., Ltd. Read and follow all manuals and safety precautions before use. Improper use can result in fire, serious injury and damage to property.
  • Page 5 STEP 1-1 lower link & link mount assembly RH screw M3X16 M3 lock nut M3 lock nut A1 “A” A SIDE Make B SIDE RH screw M3X16 STEP 1-2 knuckle carrier & damper mount assembly “A” “B” C4 “A” C5 “B” CHASSIS 3 cm...
  • Page 6 STEP 1-3 lower link & link mount assembly RH screw M3X5 “A” spacer 3X6X0.5 RH screw M3X5 RH screw M3X10 “B” STEP 1-4 M3 nut M3 nut ※thread lock upper link & front axle assembly RH screw M3X12 RH screw M3X12 A2 “B”...
  • Page 7 STEP 1-5 shaft 2X9.8 shaft 2X9.8 CVD driveshaft assembly ANTI WEAR GREASE drive axle “short” wheel axle drive axle “long” wheel axle cross joint ANTI WEAR GREASE cross joint ENSURE FREE ROTATION STEP 1-6 bevel gear & CVD driveshaft assembly bearing 5X10x4 bearing 5X10X4 bearing 8X14X4...
  • Page 8 STEP 1-7 steering kunckle & axle cover assembly RH screw M3X10 spacer 3X6X0.5 tube 3X4X4.5 bearing 10X15X4 cap screw M2X8 bearing 5X10X4 請注意齒輪方向! Please notice the gear direction. ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 9 STEP 1-8 servo & steering links assembly G1 “E” grub screw M3X16 grub screw M3X16 RH screw M3X25 spacer 3X6X0.5 RH screw M3X10 RH screw M3X16 23 for SANWA/KO 25 for FUTABA/SAVOX servo 90 deg. 請先將遙控器歸零後再送電至伺服機， 伺服機片再依上圖位置安裝。 Attach as shown with servo in neutral. spacer 3X6X0.5 RH screw M3X16 RH screw M3X8...
  • Page 10 STEP 2-1 RH screw M3X16 lower link & link mount assembly Make M3 lock nut M3 lock nut A SIDE A1 “A” B SIDE RH screw M3X16 STEP 2-2 axle lockout & damper mount assembly “B” “A” C6 “B” C7 “A” CHASSIS 3 cm...
  • Page 11 STEP 2-3 lower link & link mount assembly RH screw M3X5 “B” RH screw M3X5 “A” STEP 2-4 upper link & rear axle assembly RH screw M3X12 RH screw M3X12 A2 “B” Make M3 nut ※thread lock CHASSIS 3 cm...
  • Page 12 STEP 2-5 E-clip 4.0 rear driveshaft assembly E-clip 4.0 drive axle “short” drive axle “long” STEP 2-6 bevel gear & rear driveshaft assembly bearing 5X10X4 “long” bearing 5X10x4 bearing 8X14X4 bearing 8X14X4 bearing 8X14X4 請注意齒輪方向! locker spool Please notice the gear direction. ANTI WEAR GREASE spur bevel gear...
  • Page 13 STEP 2-7 axle cover assembly 請注意齒輪方向! Please notice the gear direction. cap screw M2X8 ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 14 STEP 3-1 transfer case assembly ※one left for reducer box. shaft 2X9.8 Make shaft 2X7.8 spacer 3X6X0.5 spacer 3X6X0.5 Make breaing 5X10X4 gear shaft RH screw M3X5 breaing 5X10X4 RH screw 3X5 ANTI WEAR GREASE breaing 5X10X4 gear shaft breaing 5X10X4 ANTI WEAR GREASE RH screw 3X16...
  • Page 15 STEP 3-2 planetary reducer assembly shaft 3X9.8 breaing 4X8X3 ※Do not over tight! FH screw M2X8 breaing 4X8X3 ANTI WEAR GREASE RH screw 2X6 gear shaft breaing 5X10X4 main shaft shaft 2X9.8 breaing 10X15X4 ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 16 STEP 3-3 planetary reducer assembly cap screw M2X20 ANTI WEAR GREASE cap screw M2X10 FH screw M2.5X10 ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 17 STEP 3-4 planetary reducer & motor assembly motor grub screw M3X3 pinion gear 建議使用27T馬達或較高轉速的馬達 allow clearnce for recommend using 27T motor or higher speed motor. gears to run smoothly. approx. 5.7mm spacer 3X6X0.5 cap screw M2X10 RH screw M3X10 Pinion Gear 62.5 58.8 55.6...
  • Page 18 STEP 3-5 planetary reducer & accessories assembly RH screw 3X12 M3 nut note direction. spacer 5X7X2 grub screw M3X16 O-ring P3 (black) CHASSIS 3 cm...
  • Page 19 STEP 4 shock assembly Make O-ring 6X1 E-clip 2.0 (black) piston rod spring (long) ※approx. 28~30 drops shock body O-ring P3 (clear) O-ring 6X1 (black) approx. approx. 22.3mm 3.0mm long spring soft TOOL stiff short spring push up piston rod in position and tighten K1. pull down piston rod and pour oil into shock body.
  • Page 20 STEP 5-1 transfer case & chassis assembly screw pin spacer 5X7X2 RH screw M3X12 spacer 5X7X1 spacer 5X7X1 M3 nut drive joint A shaft 2X10.8 short RH screw M3X8 ANTI WEAR GREASE cross joint drive joint B Make ※two left for frame assembly. ENSURE FREE ROTATION...
  • Page 21 STEP 5-2 transmission system & frame assembly frame RH screw M3X10 RH screw M3X10 RH screw M3X12 shaft 2.5X9.8 shaft 2.5X9.8 RH screw M3X8 frame ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 22 STEP 5-3 front crossmember & shock tower assembly E1 “A” RH screw M3X10 E2 “B” RH screw M3X10 CHASSIS 3 cm...
  • Page 23 STEP 5-4 rear crossmember & shock tower assembly E2 “B” RH screw M3X10 E1 “A” RH screw M3X10 CHASSIS 3 cm...
  • Page 24 STEP 5-5 link mount & chassis assembly link mount & chassis assembly FH screw M3X8 RH screw M3X18 CHASSIS 3 cm...
  • Page 25 STEP 5-6 battery mount & frame assembly ※N8 is a tool for removing N6. RH screw M3X12 FH screw M3X10 FH screw M3X6 RH screw M3X12 CHASSIS 3 cm...
  • Page 26 STEP 5-7 front axle & frame assembly M3 lock nut M3 lock nut screw pin screw pin RH screw M3X18 RH screw M3X16 ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 27 STEP 5-8 rear axle & frame assembly M3 lock nut M3 lock nut screw pin screw pin RH screw M3X18 RH screw M3X16 ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 28 STEP 5-9 shocks & frame assembly FRONT M3 lock nut M3 lock nut REAR M3 lock nut M3 lock nut RH screw M3X20 RH screw M3X20 RH screw M3X20 FH screw M3X10 FH screw M3X10 M3 lock nut M3 lock nut M3 lock nut M3 lock nut RH screw M3X16...
  • Page 29 STEP 5-10 tires & rims assembly FRONT BOTH SIDE shaft 2X9.8 REAR may vary BOTH SIDE shaft 2X9.8 M4 lock nut Make M4 lock nut glue on both side. ENSURE FREE ROTATION CHASSIS 3 cm...
  • Page 30 STEP 5-11 attaching R/C equipment please refer to instructions supplied with R/C equipment when attaching. receiver receiver double side tape double side tape CHASSIS 3 cm...
  • Page 31 A bag E bag 72000100 72001200 E8 x8 A1 x4 A2 x4 A3 x4 C bag E1 x2 E2 x2 E3 x2 E4 x2 E5 x2 E6 x2 E7 x2 C2 x4 72000200 F bag C3 x4 72000200 72001500 F3 x4 72001400 72000400 72000400...
  • Page 32 H bag I bag 72002000 72001700 72001700 H3 x2 H4 x3 H6 x6 H5 x3 72001700 72001800 72001800 72001800 J bag 72001900 K bag 72002100 K3 x4 K4 x4 K5 x4 72001900 72001900 K1 x4 K2 x4 K8 x4 72001000 K6 x4 K7 x4 10mm...
  • Page 33 L bag N bag L2 x4 L1 x4 7200800 N1 72001100 N2 72001100 N6 x2 72002200 N3 x4 L3 x4 7200800 72001100 N5 x2 72002200 N8 x2 L4 x4 7200800 72002200 L5 x4 7200800 N7 x2 N4 x2 72002200 72002200 1.0mm L7 x2 72002300...
  • Page 34 STEP 1-1~2-5 Cap screw Front driveshaft L M2X8 X12 pcs E-clip 4.0 X2 pcs 77022008 前傳動軸 L 71001000 有頭螺絲 E扣 77900002 RH screw M3X5 X8 pcs M3 X4 pcs Front driveshaft S 77003005 77900004 前傳動軸 S 71001100 螺帽 半圓頭螺絲 RH screw Lock nut Rear driveshaft L M3X8 X1 pcs...
  • Page 35 70200800 矽油 71000400FS 避震桶身 (消光銀) Piston rod X4 pcs 71000500 避震軸心 Soft shock spring 43mm Anti-Wear 軟避震彈簧 71000700 Grease FUN TOGETHER rc-tws.com Stiff shock spring 41.5mm type B rims type A rims 71000800 硬避震彈簧 Anti-wear grease 70200500BK 70200400BK 70200700 抗磨耐壓油...
  • Page 36 Cap screw M2X20 (10) 70200700 tws Anti-wear grease 1g 72001200 Shock tower set 77024016 Cap screw M4X16 (10) 70200800 tws Silicone oil #100 6cc 72001300 Body post set 77033003N Grub screw M3X3 (10) 70200900 Shaft remover 72001400 5.8 Rod end set...
  • Page 37 WHEELBASE 242mm 252mm RH screw M3X14 long...
