Important Safety Instructions

To reduce the risk of injury or damage, keep these safety precautions in mind when

setting up, using and maintaining your robot vacuum cleaner:

 Read all safety and operating instructions before operating your robot.

 Retain the safety and operating instructions for future reference.

 Pay attention to all warnings on your robot, battery, charging dock and in the user

manual.

 Follow all operating and use instructions.

 The external flexible cable or cord of the power supply unit can not be replaced;

if the cord or plug is damaged, the power supply unit shall be disposed of.

 This product is designed to be plugged into a standard outlet only. Product may

not be used with any type of power converter. Use of power converters will

immediately void the warranty.

 CAUTION: Only charge one of the following robot batteries: maximum 14.4V,

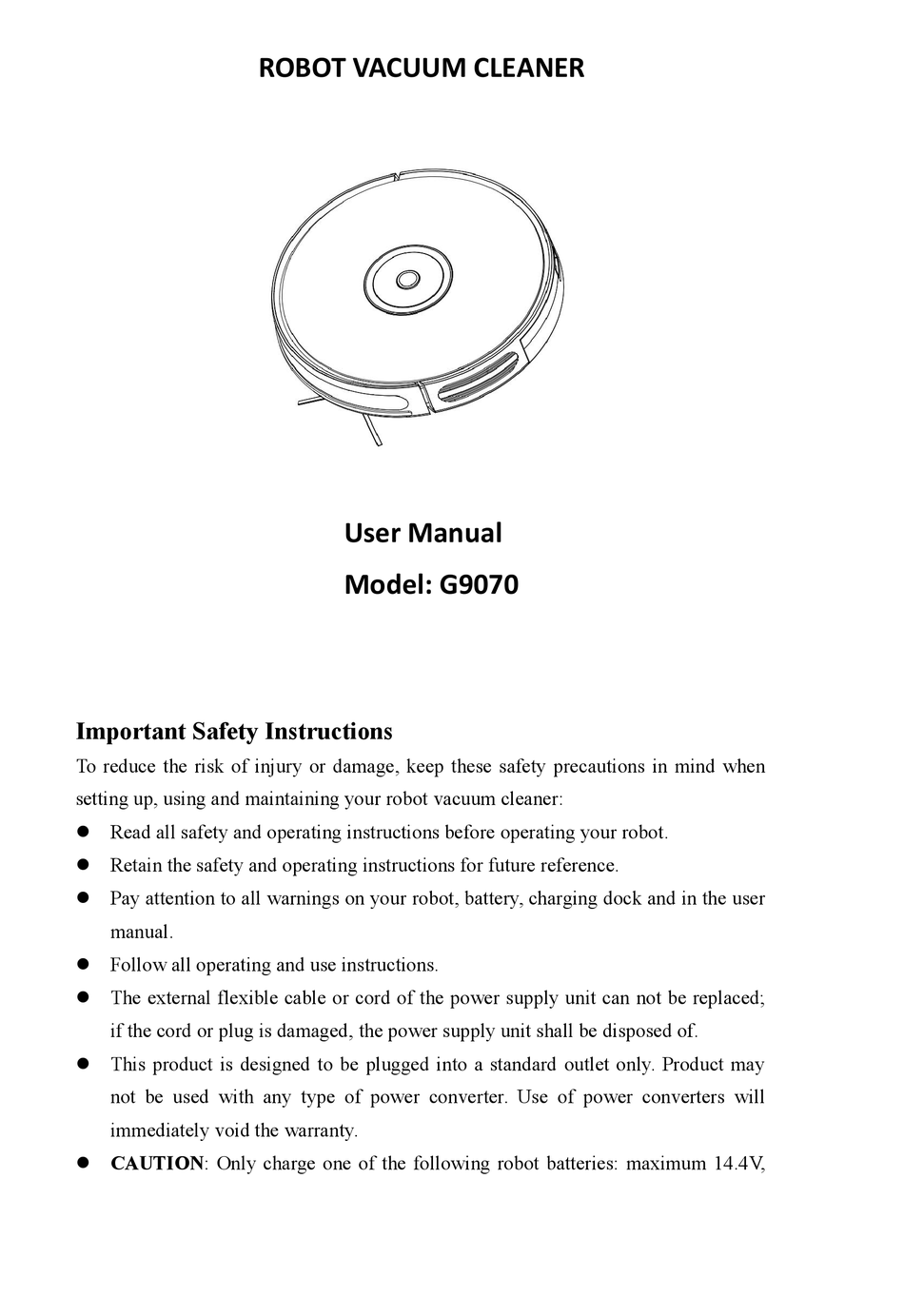

ROBOT VACUUM CLEANER

User Manual

Model: G9070

Table of Contents

Need help?

Do you have a question about the G9070 and is the answer not in the manual?

Questions and answers

Bärbel Jantzen

May 14, 2025

Kamn ich den robi auch ohne Fernbedienung nutzen, nur mit der app??

1 comments:

Mr. Anderson

May 21, 2025

Yes, the Muzili G9070 can be used with an app instead of the remote control. However, the official app may no longer be available in standard app stores. Users have reported downloading the "Robot Cleaner" app from alternative stores like Aptoide or APK Pure.

This answer is automatically generated

Summary of Contents for Muzili G9070

Page 1 ROBOT VACUUM CLEANER User Manual Model: G9070 Important Safety Instructions To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your robot vacuum cleaner:  Read all safety and operating instructions before operating your robot.
Page 2 max 2600mAh Ni-MH or maximum 2600mAh Li-ion battery. Other type of batteries may burst causing injury. Always contact Customer Care for the correct replacement of your battery.  Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Page 3  Do not use robot to pick up spills of water bleach, paint, or other chemicals, or anything wet.  Before using robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.
Page 4 the battery in a cool, dry place. The symbol on the product or its packaging indicates: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local authority for information regarding the collection systems available.
Page 5 1.3 Charging Dock 1.4 Remote Control Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment. When using the remote control, please aim at the robot and the effective distance is 0-5m.
Page 6 Red light flashes or ON Error/low battery 2. Using Your Robot 2.1 Quick Start 1. Plug in the charging dock, and take the rest wire into the trunking at the bottom of charging dock. Note: If you don’t put the rest wire into the trunking, it may stuck the robot while charging or cleaning.
Page 7 3. Install Side Brushes Attach side brushes to the bottom of robot by pressing a brush into each slot. 4. Turn on the main power switch on the bottom of robot. 5. Activate the Robot Place robot onto the charging dock, making sure the metal charging contacts on the charging dock match up with those underneath the robot.
Page 8 button on remote control.  To start the robot, press the button or press the button on remote control. 8. Power OFF  To end the cleaning cycle and put robot in standby mode, press and hold button until robot indicators turn off. 2.2 How Robot Clean Your Home 1.
Page 9 When you select spot cleaning, robot intensely cleans a localized area by spiraling outward about 3 feet (1 meter) in diameter and then spiraling inward to where it started. When spot cleaning, robot boosts vacuum power to provide the best cleaning possible where you need it.
Page 10 Warm Tips: In this mode, the robot will keep cleaning for about 30 minutes and then stop. Please close the door to ensure the robot will not go out the room. 6. Floor Mopping Cleaning Robot is equipped with a water tank so that it can clean your home in floor mopping cleaning mode.
Page 11 Press the button to select the minute or hour section. Press button to select the desired figures. And then press the button, the robot will “BEEP” when the clock setting completed. 2. Setting Cleaning Schedule Press button on remote control, and then the hour section begins to hash in the cleaning schedule display setting window.
Page 12 And then press the button, the robot will “BEEP” when the cleaning schedule setting is completed. 3. Cancel the Cleaning Schedule Press and hold button approximately 4 seconds on remote control, the robot will “BEEP” when the cleaning schedule process is canceled. 3.
Page 13 Charging pins Once every month Swivel wheel Once every month 3.1 Empty Robot’s Bin 1. Press bin release button to remove the bin. 2. Open bin’s door to empty it. 3.2 Clean Robot’s Filter 1. Remove filter by grasping the white tab. Shake off debris by tapping the filter against your trash container.
Page 14 3.3 Clean Robot’s Rolling Brush, Side Brush, Swivel Wheel and Sensors 1. Take out the rolling brush, clean the vacuuming aisle by a cloth. 2. Clean the rolling brush. Cut down the hair winded in the rolling brush with the provided cleaning tool’s knife.
Page 15 4. Troubleshooting Robot will tell you something is wrong with a two-tone distress sound. The indicator will also blink or light red. Refer to the chart as below to resolve the robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance.
Page 16 BEEP twice Bumper is stuck. Check whether the bumper is flexible. BEEP triple Robot’s cliff sensors If the robot is hanging over dirty, a drop, or on a dark hanging over surface, please start in a drop, or it is stuck new location.
Page 17 can’t schedule  Make sure the main power switch on the bottom of cleaning. robot is turned on.  Make sure the time, time of day (AM/PM), and the scheduled time have been set correctly.  Check if robot’s power is too low to start cleaning. Suction power is weak.
Page 18 Robot movements  Clean the sensors carefully with a dry cloth. travel paths  Restart robot by turning the power switch off and on. abnormal. AFTER-SALE SERVICE Our customer service is friendly and hassle-free, please contact us if you need our help as following: - Technical Support - Package is Not in Perfect Condition.
