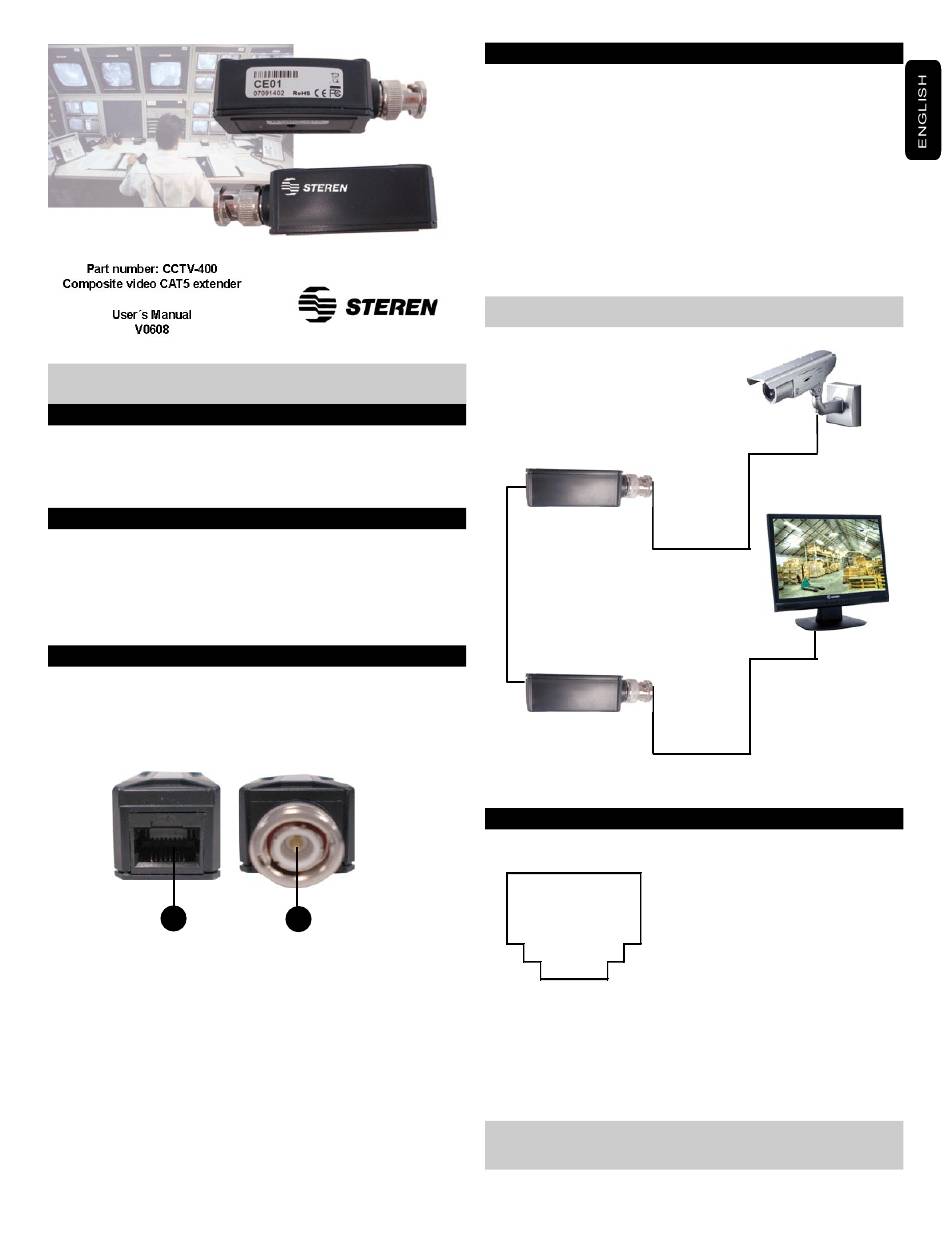

Steren CCTV-400 User Manual

Before using your new Electronic insect killer, please read
Before using your new Composite video CAT5 extender, read
this instruction manual to prevent any damage. Put it away
the following recommendations.
IMPORTANT
• Do not attempt to open the device, may cause malfunctions.
• Warranty is void if you open the divice.
• To clean the device use a sofy and dry cloth.
FEATURES
• These video extender allows you to connect and send a base
band signal up to 328ft distance, using a Cat5 cable.
• Easy to install.
• Batteries are not required.
• Increases up to 50% the cable length.
CONTROLS
1.- RJ-45 port.
2.- BNC connector.
1 2
CONNECTION AND INSTALATION
TRANSMITTER:
1 .- Connect the video cable with BNC connector from the CCTV
camera to the transmitter.
2 .- Use a CAT 5e cable or higher and connect it to transmitter.
RECEIVER:
1 .- Connect the CAT 5e cable from the transmitter to the receiver.
2 .- Connect a video cable with BNC connector from the monitor
or TV to the receiver.
Before using your new Electronic insect killer, please read
The maximum length of the cable network is 328ft
this instruction manual to prevent any damage. Put it away
TRANSMITTER
BNC VIDEO
CAT5e CABLE
RECEIVER
RJ-45 JACK PIN DEFINE
1 2 3 4 5 6 7 8
PAR PIN
PAR 1 1--2
PAR 2 3--6
PAR 3 4--5
PAR 4 7--8
Before using your new Electronic insect killer, please read
Product design and specifications are subject to change
this instruction manual to prevent any damage. Put it away
without previous notice.
in a safe place for future references.
BNC VIDEO
BNC VIDEO
BNC VIDEO
PIN COLOR FUNCION
1 White/Orange S2
2 Orange S1
3 White/Green Without function
4 Blue A1
5 White/Blue A2
6 Green Without function
7 White/Brown Video +
8 Brown Video -
