ELO-16 GB FR
Extra Large Orifice
Extended Coverage Ordinary Hazard
Upright, Pendent and Recessed Pendent Glass Bulb
Automatic Sprinkler
Manufactured by: Central Sprinkler Company
451 North Cannon Avenue, Lansdale, Pennsylvania 19446
Product
Description

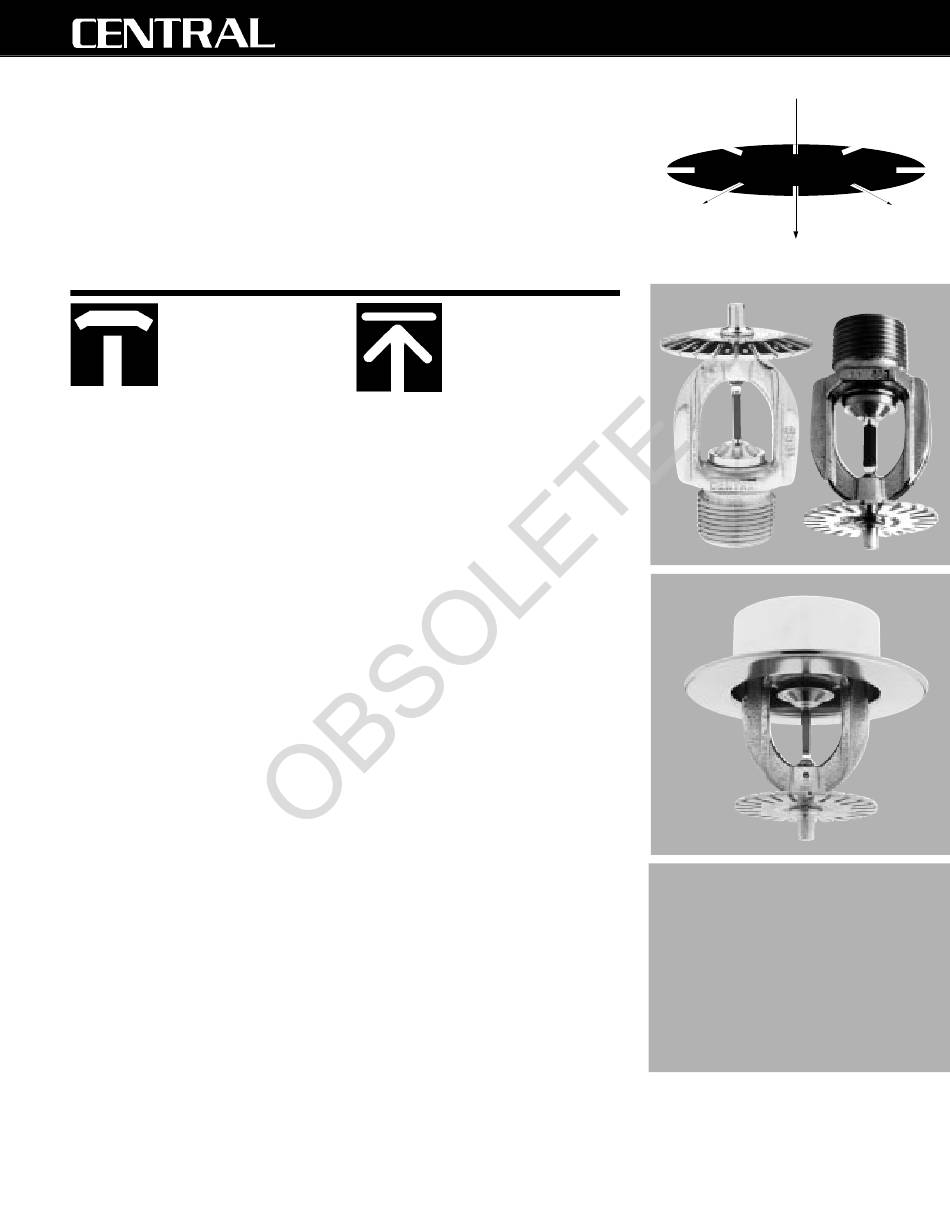

The Central Model ELO-16 GB FR Extra
Large Orifice Upright, Pendent and Recessed
Pendent Glass Bulb Automatic Sprinklers are
designed for Extended Coverage spacing in
Ordinary Hazard occupancies per NFPA 13
with very low pressure required.
The ELO-16 GB FR (upright and pendent)
is the first extended coverage ordinary hazard
sprinkler ever Approved by Factory Mutual.
As with any project that requires Factory
Mutual Approval, always consult the F.M.
Guidelines for their specific requirements.
The Model ELO-16 GB FR incorporate a
specially designed deflector that provides a
much greater area of coverage than most
commercial sprinklers. The extra large orifice
allows this greater area of coverage, while
requiring much lower pressure.
The ELO-16 GB FR are intended for use,
as all extended coverage sprinklers are, with
hydraulically designed systems and using the
flows and pressures as shown in this bro-
chure. All spacing is rounded up to the next
higher category. For example, 17'-6" x 15'-0"
(4.4m x 3.8m) spacing would be calculated at
the Listed 18' x 18' (5.5m x 5.5m) flow and
pressure.
Operation: The glass bulb capsule
operating mechanism contains a heat-
sensitive liquid that expands upon application
of heat. At the rated temperature, the
frangible capsule ruptures, thereby releasing
the orifice seal. The sprinkler then discharges
water in a pre-designed spray pattern to
control or extinguish the fire.
Installation Limitations:
• Unobstructed or non-combustible
obstructed construction*
• Minimum hydraulic design area of 5
heads or 1500 sq. ft., whichever is
greater.
• Minimum spacing between sprinklers is
12' (3.7m) for upright and 12'-6" (3.81m)
for pendent.
* WEB members of open WEB trusses must not exceed
1" (25 mm) diameter. Maximum ceiling slope of 2"
per foot (158 mm/m) .
ELO-16 GB FR OH
Technical
Data
Model: ELO-16 GB FR
Style: Upright, Pendent and Recessed
Pendent
Escutcheon: Model ELO Recessed
(2-piece)
Note: For the recessed configuration,
only the Model ELO Recessed 2-piece
Escutcheon may be used. Substitution
of other "recessed" escutcheons may
impair the operating sensitivity and
distribution pattern. For the pendent
version, non-recessed escutcheons such
as the Model 401 may be used, but are
not required.
Wrench: ELO/ESLO/ESFR Combination
(upright and pendent) Part #1073
ELO Offset (recessed pendent)
Part #1092
Orifice Size: 0.64" (ELO)
(16.3 mm)
K-Factor: 11.4
(163.02 metric)
Thread Size: 3 ⁄ " N.P.T.
(20mm)
4
Temperature Rating & Glass Bulb Color:
Ordinary 155°F/68°CRed
Intermediate 200°F/93°CGreen
High 250°F/121°C
Approvals: U.L., **F.M.,
M.E.A. (466-92-E Vol. II)
**Upright & Pendent only, not recessed pendent.
Maximum Working Pressure:
175 psi
(12.1 bar)
Factory Hydro Test: 100% at
500 psi (34.5 bar)
Standard Finishes: brass, chrome plated
Decorative Coatings: white or black painted
Coatings: wax, lead, wax-over-lead
(FM only)
Corrosion-Resistant Coatings:
black painted (U.L. only)
Escutcheon: brass, chrome plated, white
or black painted
Length: 3 1 ⁄ "
(7.94 cm)
8
Width: 2"
(5.08 cm)
Weight: 5.0 oz.
(142 grams)
Response: Standard
O P
Blue
Extended
Coverage
Ordinary Hazard
Upright, Pendent
& Recessed
white or
Pendent Sprinkler
2-98
T I M A
No. 2-5.0
