NA-DE 20024 Instruction Manual

20024 with 48 LED - 20124 with 48 LED
EMERGENCY LIGHTING ARMATURE
USING AREAS
• In hospitals, flats, houses
• In schools
• In supermarkets and shops
• In stations, airports and ports
GENERAL SECURITY CAUTIONS
• Take out the product from orginal package and control if there is any damage of transportation and
general view of the product
• Don't use the product for out of purpose
• Keep away from the wather and moist areas
• Keep away from dust and dirt
• Protect from impact
• Turn off the power before starting to install
• For whole charging hold the battery in charge 22 hours continuous
• Only authorized technicians must install the device
• Only 3x1.2 V rechargable batteries must be used, otherwise dive is broken
• Live the battery recycling places after using
CAUTIONS FOR HUMAN HEALTH AND ENVIRONMENT
• Dont try to repair the product yourself
• Keep away from stove,radyator or any heating device, protect from the sun
• Don't try to mend product by opening the cover, call to our free call center.
INFORMATIONS REGARDING WRONG USAGE
• Install how described in instruction manual, otherwise product is out of guarantee.
• Keep the product away from dust, moisture, impact, fluid during the use, The product is out of
guarantee when defects results from these matters
INFROMATIONS REGARDING MAINTENANCE AND CLEANING THAT CAN BE DONE BY USER
• When happens any defect you can get assistance from expert or our free call center.
• Rechargable battery must be durable and must be changed periodicaly depending on using duration,
before changing batteries power must be cut. Open rear cover and change the batteries (as shown
figure 1)
PERIODICAL MAINTENANCE
• To extend life of batteries, batteries should be discharged in every 20 days.
• Attendant of building should turn off the power, and wait for discharging of batteries
RULES FOR MAINTENANCE AND USAGE
• When device is dirty should be clean with a dry cloth
• Keep the product away from dust, moisture, impact, fluid during the use, The product is out of
guarantee when defects results from these matters
• When happens any defect you must get assistance from expert or our free call center.
• Rechargable battery must be durable and must be changed periodicaly depending on using duration,
before changing batteries power must be cut. Open rear cover and change the batteries (as shown
figure 1)
• Keep the original package, invoice, ETC to use when its necesary.
RULES FOR MOVING AND TRANSPORT
• Should be carefull when transporting, Sholdn't put heavy goods on products, should be protect
against impact, dust and fluid.
BASIC INFORMATION ABOUT PRODUCT FEATURES
• Meets all necessities in the emergency lighting and directing solutions, emergency lightings secure
what are in the building, prevents the panic in emergency
• Plain, stylish, quick mounting, easy maintenance
• Lights automatically when power cut, can light continuous and when power cut.
• 160 lumen intensity of illumination at the emergency
• 20124 with 48 LED has 104 lumen lighting intensity when the power on
• Depends on model 2 hours continuous lighting
• Two colored LED shows state of battery, if charge is under 2,9 V lights red otherwise green
• Spends less energy with LED
• Life of the product is 10 years
SPECIFICATION
Operating voltage
Battery type
Operating battery time
Charging time
Operating mode
Protection class
Operating temperature
Intensity of illumination
( Supply voltage / Batery )
Power Consumption
Producer Company, Service station and spare parts suppling address:
Na-de Elektronik Sanayi ve Ticaret A.fi. ‹stanbul Deri Organize Sanayi Bölgesi 12. Yol M1-8 Parsel
34953 Tuzla /‹stanbul TÜRK‹YE Tel.:+90 (216) 394 01 55 -56 • +90 (216) 394 05 30 Fax:+90 (0216) 394 01 64
info@na-de.com.tr • www.na-de.com.tr
INSTRUCTION MANUAL
• In places of worship and sport complex
• In museums and exhibition galleries
• In accommodations and restaurants
• In place of amusement
20024 with 48 LED 20124 with 48 LED
~85-265Vac / 50-60 Hz.
3.6V 1500 mAH AA Ni-Mh rechargeable battery
2 hours
22 hours
Non - Maintained Maintained
IP 20 Class II
-20 °C ~ +40 °C
- / 160 lumen 104 lumen / 160 lumen
2.8W 5.5W
Complies with ROHS Regulation

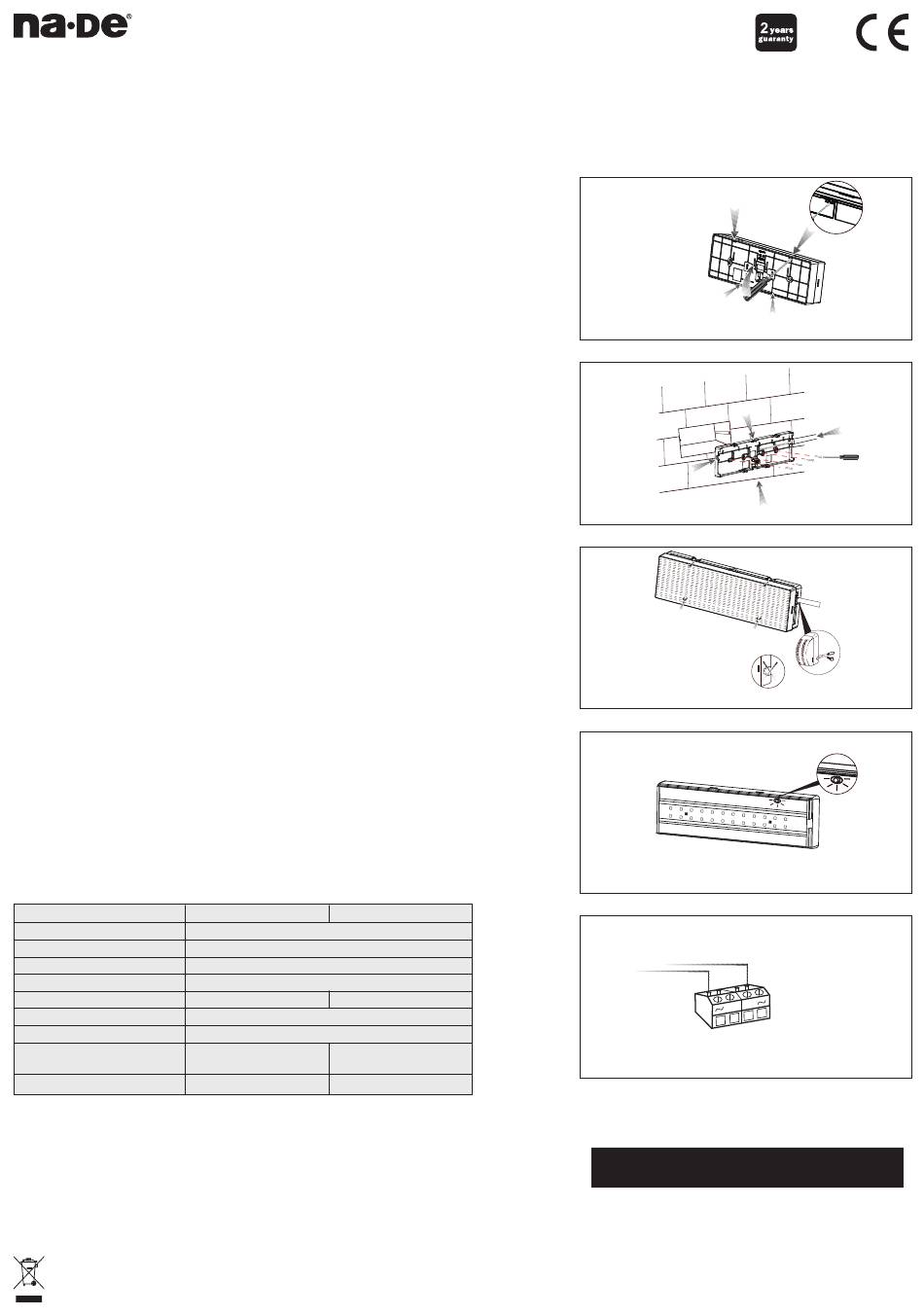

MOUNTING
FIGURE-1
To take out rear cover open the nails at the both side by
screwdriver
FIGURE-2
Screw the armature on the wall
FIGURE-3
Cut the armature from specified place for cable connection
FIGURE-4
Green LED : intensity of battery is higher than 2,9 V
Red LED : intensity of battery is lower than 2,9 V
FIGURE-5
CONNECTION
L : Phase
~85-265Vac / 50-60 Hz
N : Neutral
Cable terminal position for connection operation.
Batteries are out of warranty
KK-20024/124_48LED'li_130926_EN-00
TS EN
60598-1
TS EN
60598-2-22
Directive 2002/95/EC
