Faria Beede DM0100 Operating Instructions

"HELP RECV" does not indicate that the people that have been listed on the "Notifications" page have received
the notification only that the notification has been sent.
Operation

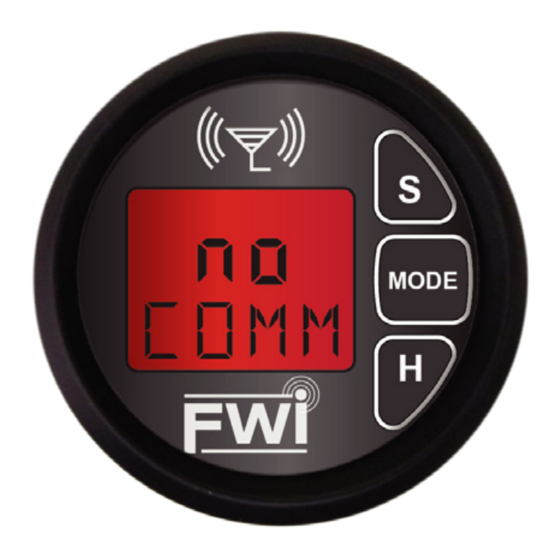

Be sure all of the connectors are connected and the User
Interface has signal, power and reads "COMM" or "noCOMM".
Press and release the "S" button to enter the STATUS MODE.
Pressing the "MODE" button will cycle through five status
displays.
GSM Signal strength
0 (no signal) This unit is not
equipped with a GSM processer
and there will be no signal read
here.
Satellite signal strength
0 (not available) or 5 (best signal).
Move the Satellite antenna around
until the User Interface displays
the best signal possible. 5 being
the best signal.
GPS Signal Strength
PDOP x 100 (a PDOP of 1.23 will
read 0123), 9999 (no GPS), lower
numbers represent a better
connection. Move the GPS
antenna around until the User
Interface displays the best signal
possible. The lower the number
displayed the better.
Made in the USA
DM0100 - 2-Inch Telematics User Interface
Warning
Main Battery Voltage
Main battery voltage x100 (a main battery voltage of 12.34 will
read 1234) Back-up Battery voltage will read the same as the
Main battery.
Press the "S" button to exit the
"Status Mode" and return to
"Normal Mode"
Assistance Button
The Faria Beede MTU system is
equipped with an Assistance
Notification function.
Any person on the vessel can
request assistance by using the
2-inch User Interface.
Pressing and holding the "H"
button for 5 seconds will put the
MTU into the ASSISTANCE
MODE.
In this mode, someone on the
vessel has requested assistance.
The screen will display "HELP
SEND" indicating that the MTU
has requested assistance.
Once the request has been sent,
the screen will change to "HELP
SENT".
This is to indicate that the MTU has sent out a request for
assistance. An assistance alert will be sent to those
individuals listed on the notification page, on the web site, by
e-mail or automated phone message.
After the e-mails and phone calls have been made the
interface screen will change to "HELP RECV".
IS0388
Rev. A ecn 10402 06/2016
Faria Beede Instruments, Inc.
www.FariaBeede.com
