Summary of Contents for ICON ProAudio Upod Nano

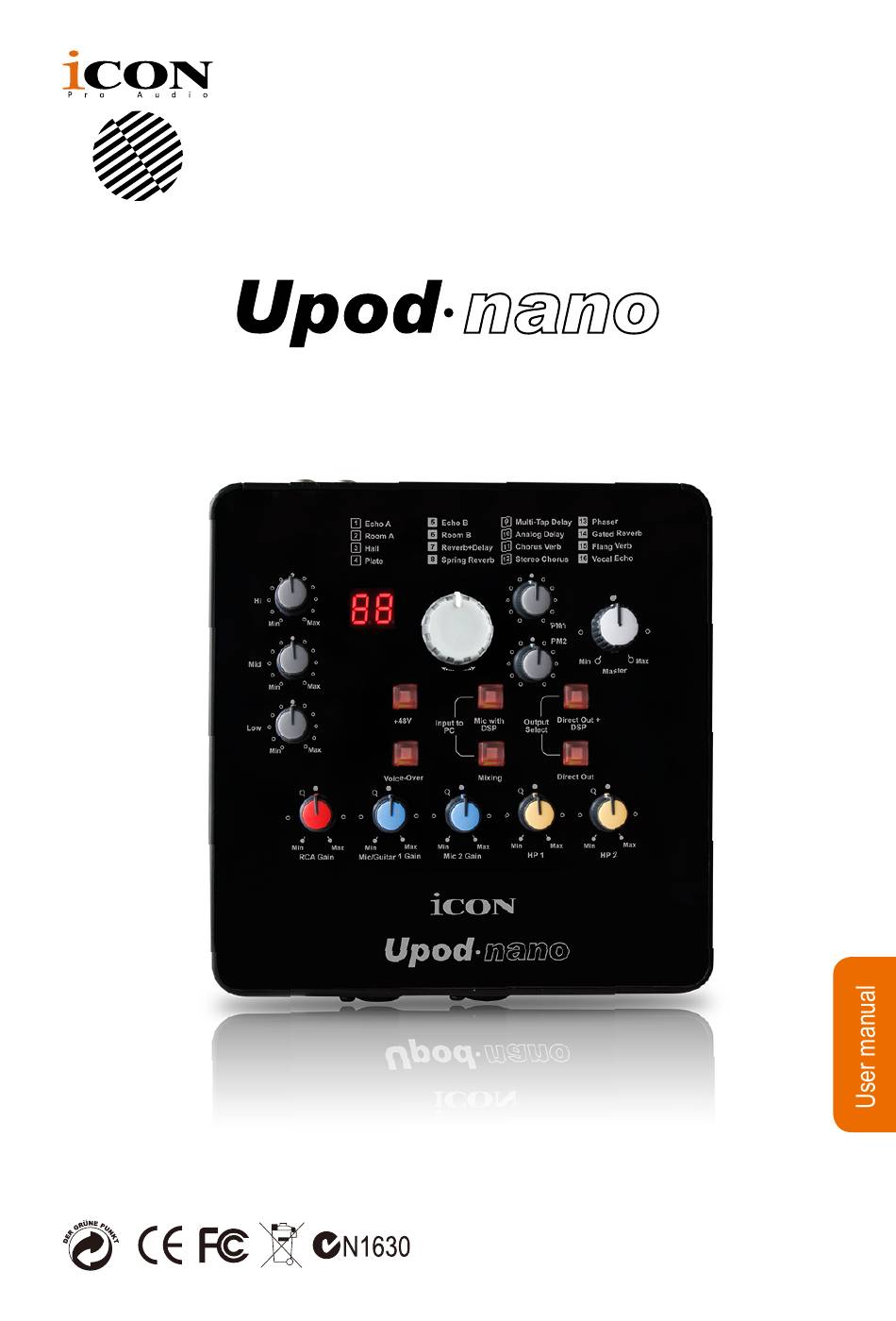

- Page 1 2 Mic/1-Guitar in, 2 Line out recording USB Interface with DSP effect built-in.
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introductions .....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Front/Top Panel ..................7 Rear Panel....................10 DSP Effect List ..................11 Hardware Connections ................13 Minimum System Requirements.............14 Specifications ..................15 Services ....................16... -
Page 4: Introductions
In these pages, you'll find a detailed description of the features of the Upod Nano digital audio interface, as well as a guided tour through its front and rear panels, step-by-step instructions for their setup and use, and full specifications. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON Upod Nano USB recording interface provides an audio input and output module with USB connectivity. Main features include: ● 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface ● 2x2 analog I/O full duplex recording and playback ●... -
Page 7: Front/Top Panel
Front/Top Panel 1. “Mic” inputs 1/2 These hybrid connectors will accept a standard 3-pin XLR plug or a 1/4” TS connector. For condenser microphone with +48V phantom power or dynamic microphone. Note: For dynamic microphone user, please make 3-pin XLR (Balanced) sure +48V phantom power switch is “OFF”... - Page 8 3. 48V phantom power switch Press to supply +48V phantom power to both XLR input. This phantom power circuit is suitable for most condenser microphones. 4. Input gain level controls 1/2 These potentiometers control the input level of the associated analog microphone (&...
- Page 9 14. Output select Controlling the output signal. DSP effected signal Direct out + DSP button will be monitored if activated. Direct signal (i.e. without DSP effect) will be Direct out button output and monitored. Tip: When “Direct Out + DSP” function activated, it is highly recommended to activate the “Direct Out”...
-
Page 10: Rear Panel
Upod Nano is not able to work without the provided power adaptor connected. The USB bus power is not able to provide sufficient power supply for Upod Nano. Note: External power adapter is needed if the Upod Nano is using as a standalone unit. -
Page 11: Dsp Effect List
DSP Effect List Echo A Echo B Multi-Tap Delay Phaser Room A Room B Analog Delay Gated Reverb Hall Reverb+Delay Chorus Verb Flang Verb Plate Spring Reverb Stereo Chorus Vocal Echo... - Page 12 Different type of microphone connection method diagram Dynamic Dynamic Microphone Microphone (D2) (D2) 1/4” TR Unbalanced Condenser Condenser Microphone Microphone (M1) Balanced (M1) Note: For dynamic microphone user, please make sure +48V phantom power switch is “OFF” before you plug in your microphone, otherwise it may cause damage to your microphone.
-
Page 13: Hardware Connections
Hardware Connections Connect the Upod Nano digital audio interface outputs to your amplifier, powered monitors or surround system. Two-channel stereo operation, the default outputs are channels 1 and 2. If you are monitoring through headphones, connect your headphones to the device’s headphone output. -
Page 14: Minimum System Requirements
SP1 or later. Visit the Windows update web pages to make sure you have the most current updates and fixes supplied by Microsoft. On the Mac, the Upod Nano digital audio interface is supported by Mac OSX version 10.5.5 or later (must be Intel-Mac). -
Page 15: Specifications
Specifications Mic Input: Frequency Response ........22Hz to 20kHz (+/-0.2dB) Dynamic Range ..........90dB, A-weighted Signal-to-Noise Ratio........-90dB, A-weighted THD+N ............<0.0061% (-86dB) Crosstalk............-85dB @ 1kHz Input Impedance: Mic in ......... 1.8K Ohms, typical Adjustable Gain ..........+39dB Inst Input: Frequency Response ........ -
Page 16: Services
Navigate to http://support.iconproaudio.com/hc/en-us and then sign in to submit a ticket. As soon as you have submitted an inquiry ticket, our support team will assist you to resolve the problem with your ICON ProAudio device as soon as possible. To send defective products for service: Ensure the problem is not related to operation error or external system devices. - Page 17 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店iconproaudio旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
