RP70A BIO User's Guide
Gen2wave
This document is proprietary and confidential. No part of this document may be disclosed in
any manner to a third party without the prior written consent of Gen2wave

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP70A BIO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gen2wave RP70A BIO

Summary of Contents for Gen2wave RP70A BIO

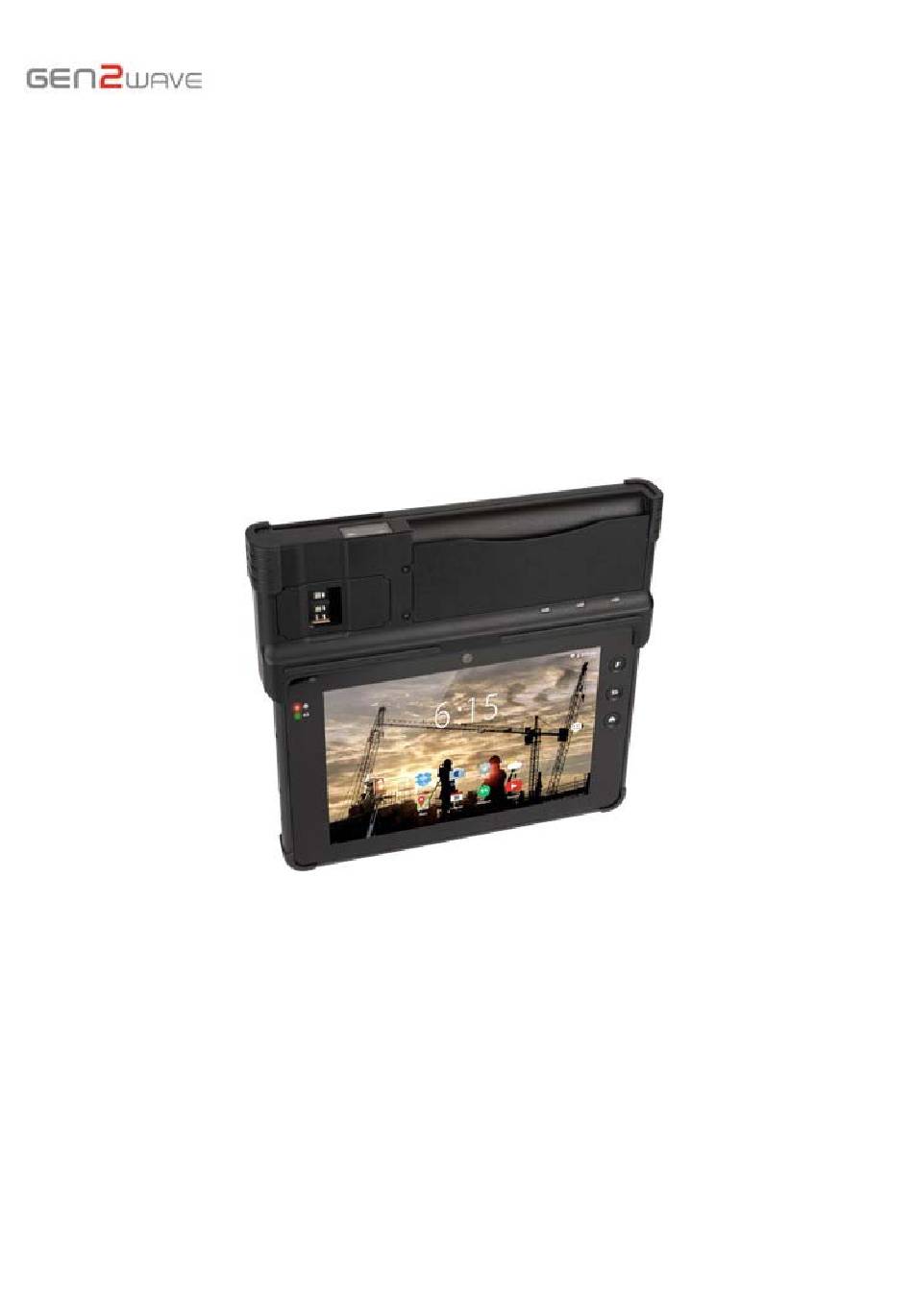

  • Page 1 V1.1 RP70A BIO User's Guide Gen2wave This document is proprietary and confidential. No part of this document may be disclosed in any manner to a third party without the prior written consent of Gen2wave...

  • Page 2: Copyrights

    Please refer to your contact for further information. Trademarks Gen2wave and the Gen2wave logo are registered trademarks of Gen2wave...

  • Page 3: Table Of Contents

    Table of Contents Copyrights ..............................2 1. Overview .............................. 4 2. Getting Started ............................ 8 3. Basic Function ........................... 13 4. Applications ............................19 5. Using the Scanner ..........................22 6. Using the Camera ..........................25 7. Using the MRZ/NFC/Smart Card ...................... 27 8.

  • Page 4: Overview

    1. Overview 1) Specifications Perfomance Hexa core CPU Cortex A72 Dual-core 1.8GHz, Cortex A53 Quad core 1.4Ghz Characteristics 32GB (64GB / 128GB optional) Android 8.1 Oreo Integrated Wireless WAN LTE, HSPA+ Radios Wireless LAN IEEE 802.11 a/b/g/n/ac (2.4, 5GHz) Bluetooth Bluetooth 4.2 BLE AGPS (GLONASS optional) DATA CAPTURE...
  • Page 5 Audio Dual Speaker, MIC Jack DC jack, USB3.0 Host, USB2.0 Client, 3.5phi Ear-Mic Jack IO connector POGO 25 pin (Power, RS232, USB 3port, HDMI, Ethernet) Extention pin POGO 10 pin Front 2 LED : Charging, Power Sensor Acceleration Sensor, Compass, Ambient Light Sensor Power DC Jack 5V / 5A Adaptor Use time...
  • Page 6 3) Device Features...

  • Page 8: Getting Started

    2. Getting Started 1) Installing Cards There are 4 slots to insert 1 micro SIM, 2 micro SAM and 1 micro SD cards in the back of your device. A. Micro SD card is required for external storage. B. Micro SIM card is required for using mobile services. C.
  • Page 9 (4) Cover the locker and slide it downwards to lock it until when you hear a “click” sound. (5) Put the cover on the RP70A BIO and tighten the screws. B. “SIM, SAM or Micro SD cards” can be removed in the reverse order.
  • Page 10 (3) Battery LED indicates as follows OFF : Not Charging Red LED : Charging Green LED : Fully Charged CAUTION Do not use any other charger except one (5.0V / 5.0A) provide. Make sure to handle it gentle; damage with excessive force may cause no warranty. Risk of explosion if battery is replaced by an incorrect type.
  • Page 11 B. Power off the device Press the Power Button until the menu appers and touch Power off. C. Soft Reset Press and hold the power button to perform a Soft Reset and touch Restart. D. Hard Reset Press and hold the power button for approximately 7 seconds to perform a Hard Reset. (Perform a Hard Reset if a Soft Reset is not working) E.
  • Page 12 B. Screen Rotation By default, screen rotation is disabled. To enable screen rotation : (1) Settings > Display > Advanced > Auto-rotate screen (2) Check Auto-rotate screen to set the RP Series to automatically switch orientation when the RP Series is rotated. ** The Home screen does not rotate C.

  • Page 13: Basic Function

    3. Basic Function 1) Home Screen You can personalize the panels with your choice of shortcuts, apps, folders and widgets. The Favorites tray, located at the right of the screen, is visible from any of the home screen panels. You can modify the apps in the Favorites tray to include the apps you use most. If you want to view all the apps and widgets available on the terminal, drag up screen.
  • Page 14 Notification Panel 3) Common Status and Notification Icons Notifications and status indicators appear at the top of the screen 4) Quick Access panel Use the Quick Access panel to access frequently used settings. Quick Settings Bar A. To see the full Quick Access panel (1) If the device is locked, swipe down once.
  • Page 15 (3) If the Quick Settings bar is open, touch the Down arrow. B. To change a setting, touch the icon. (1) Display brightness : Use the slider to decrease or increase the brightness of the screen. (2) Wi-Fi network : Turn Wi-Fi on or off, To open Wi-Fi settings, touch the Wi-Fi network name (3) Bluetooth settings : Turn Bluetooth on or off, To open Bluetooth settings, touch Bluetooth.
  • Page 16 6) Connecting the Device to a Computer(PC) via a USB connection You can transfer files between your computer and the terminal using the supplied USB Charge / Communication cable or a device with a standard USB cable ** The device supports USB 2.0(Hi-Speed) communication. A.
  • Page 17 (3) Touch Photos or Gallery to select a photo or select one of the pre-installed wallpapers. (4) Touch Set wallpaper. 8) Using the File Browser on the Device File Browser provides a graphical utility to browse the files stored on the device and the microSD card. A.
  • Page 18 E. Touch an icon to open it or back button to return to the current screen.

  • Page 19: Applications

    4. Applications This section describes the applications installed on the device. 1) Contacts Use the contacts application to manage contacts. From a Home or Apps screen, touch Contacts to open to the main list of contacts. Contacts are listed in alphabetical order. Swipe up or down to scroll through the list. A.
  • Page 20 3) Gallery The device support the following image formats : jpeg, gif. png, bmp. The device support the following video formats : H.263, H.264, MPEG4 simple profile. Use Gallery to A. View photos B. Play videos C. Perform basic editing of photos D.
  • Page 21 5) G2W TEST It is available for users to test main functions of the device. A. Touch G2W TEST B. Test Select each test item to check each function is working properly or not. C. Information View basic information about the device.

  • Page 22: Using The Scanner

    5. Using the Scanner 1) Overview The RP Series device includes a image engine that instantly read popular 1D and 2D barcodes and supports decoding for greater flexibility in real-world settings. 2) Scanner Engine Specifications. 3) How to use scanner A.
  • Page 23 A. Path : Settings > Barcode B. Functions...
  • Page 24 C. Floating Scan Button...

  • Page 25: Using The Camera

    6. Using the Camera 1) Overview Taking photos and recording videos using the integrated digital cameras. 2) Opening the Camera app and adjusting the settings To open the Camera app, touch camera on the Home screen. A. Taking a photo (1) Open the Camera app.
  • Page 26 (2) More Settings - Touch to access the additional settings options. Change camera : Front, Rear Flash mode : Auto, On, Off Grid lines link : On, Off Time : Off, 3s, 10s - Swipe right on the touch screen. Select each settings icon to access different option menus.

  • Page 27: Using The Mrz/Nfc/Smart Card

    7. Using the MRZ / NFC / Smart Card 1) Overview To read cards, use Machine-Readable Zone (MRZ)/ Near Filed Commucation (NFC)/ Smart Card ** MRZ/ NFC/ Smart Card is only available for the models with MRZ/ NFC/ Smart Card installed. MRZ/ NFC/ Smart Card can be installed to your device only through our service center.
  • Page 28 B. Reading Smart Card (1) Insert the Smart Cards with the metal contacts in the direction of the picture. (2) Press the Smart Cards downward until it clicks.

  • Page 29: Using The Fingerprint/Iris

    8. Using the Fingerprint / Iris 1) Overview To read cards, use Fingerprint / Iris ** Fingerprint/ Iris is only available for the models with Fingerprint/ Iris installed. Fingerprint/ Iris can be installed to your device only through our service center. Contact your sales representative for more information 2) To read a card using Fingerprint / Iris Reads all Fingerprint and Iris.

  • Page 30: Wireless

    9. Wireless This section provides information on the wireless features - Wireless Wire Area Network (WWAN) - Wireless Local Area Network (WLAN) - Bluetooth 1) Wireless Wide Area Networks Use Wireless wide area networks(WWANs) to access data over a cellular network. A.
  • Page 31 None, WPA2 PSK > In the Password text field, enter a password ** If None is selected in the Security option, a password is not required. > Select AP Band. (2.4 GHz, 5 GHz) > Save (3) USB tethering - Connect your RP70A and PC via USB. (RP70A : Micro 5pin port, PC : USB Port) - Path : Settings >...
  • Page 32 G. Settings Data Limit To set a data limit when the device has used a certain amount of mobile data. When the limit is reached, data automatically turns off and a notification appears. (1) Path : Settings > Network & Internet > Data usage (2) Touch Mobile data usage >...
  • Page 33 (4) Scroll through the list and select the desired WLAN network. (5) For open networks, touch profile once or press and hold and then select connect to network or for secure networks enter the required password or other credentials then touch connect. See the system administrator for more information.
  • Page 34 (4) In the Network SSID text box, enter the name of the W-Fi network. (5) In the Security drop-down list, select the type of security. - Options : None, WEB, WPA/WPA2 PSK, 802.1x EAP (6) If the network security is None, touch Save. (7) If the network security is WEP or WPA/WPA2 PSK, enter the required password and then touch Save.
  • Page 35 The proxy server evaluates the request according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting the service on behalf of the client. It is important for enterprise customers to be able to set up secure computing environments within their companies, and proxy configuration is an essential part of doing that.
  • Page 36 - OFF(CAM) Mode : Constantly awake mode (Battery life drops faster) - FAST(Default) Mode : awake periodically - MAX Mode : Maximum power savings (8) Wi-Fi Roaming Trigger - When current AP is weaker than Roam trigger, it starts to roaming. (9) Wi-Fi SSID Lock - It only connects APs which are defined by users.
  • Page 37 Bluetooth radio, but requires information from the OOB mechanism. Using OOB with NFC enables pairing when devices simply get close, rather than requiring a lengthy discovery process. B. Bluetooth radio power Turn off the Bluetooth radio to save power or if entering an area with radio restrictions. When the radio is off, other Bluetooth devices cannot see or connect to the device.
  • Page 38 F. Configuring or unpairing bluetooth devices (1) Settings > Connected devices > Verify the Bluetooth radio is activated ON. (2) Touch Bluetooth (3) On the Paired Devices list touch the settings net to name of the device you want to disconnect. (4) Touch Rename, FORGET profile from the Profiles list available for the paired device.

  • Page 39: Settings

    10. Settings 1) Ethernet By default, the RP Series is configured to obtain IP addresses automatically via DHCP server. This means that in most cases you would simply plug-and-play the unit. A. Connecting the device to the ethernet accessories (1) Plug the ethernet accessories(ethernet cradle, ethernet vehicle cradle) into the RJ45 connector on the back of the ethernet accessories.
  • Page 40 FCC compliance information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
