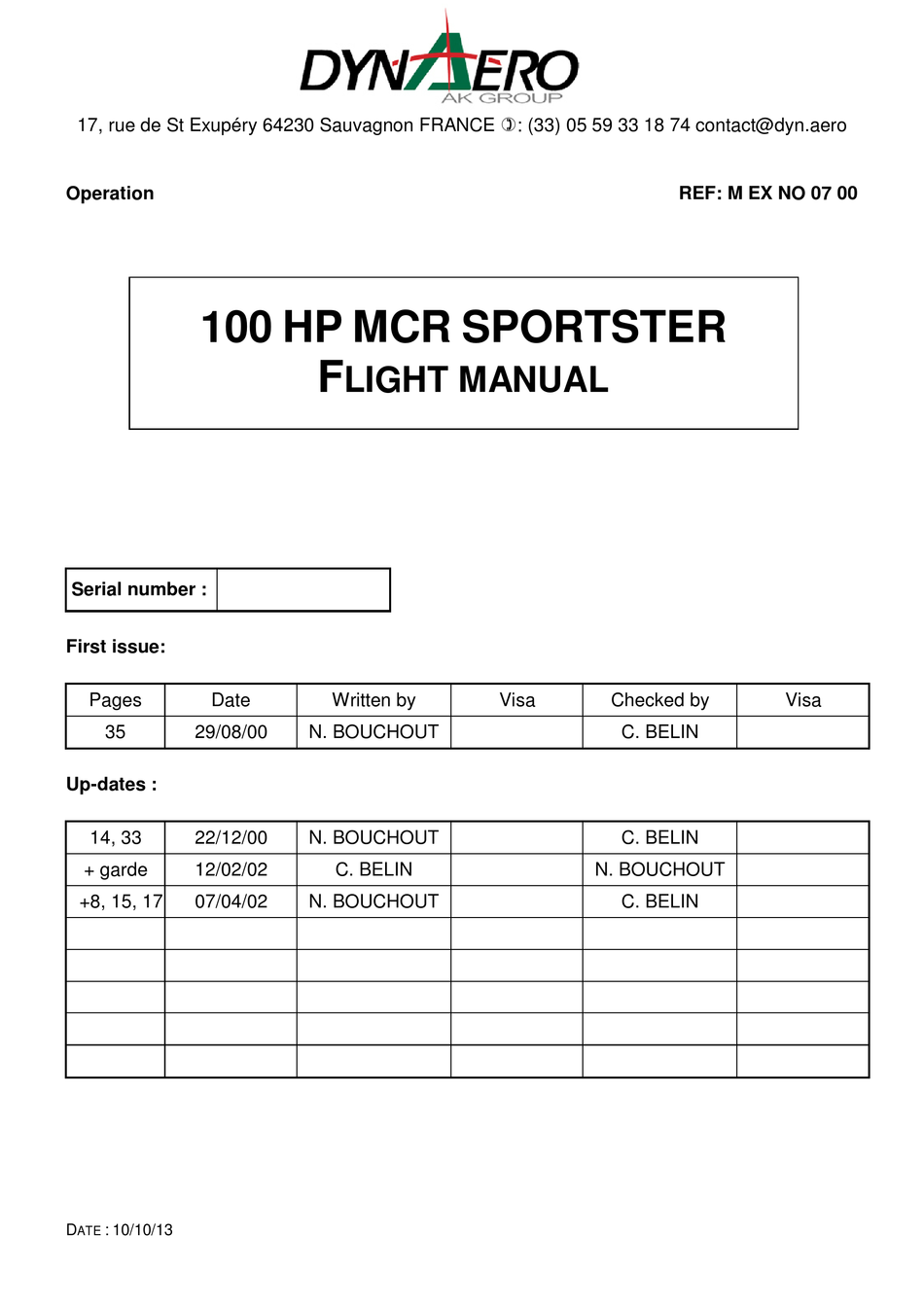

17, rue de St Exupéry 64230 Sauvagnon FRANCE : (33) 05 59 33 18 74 contact@dyn.aero
Operation
100 HP MCR SPORTSTER
Serial number :
First issue:
Pages
Date
35
29/08/00
Up-dates :
14, 33
22/12/00
+ garde
12/02/02
+8, 15, 17
07/04/02
D
: 10/10/13
ATE
F
LIGHT MANUAL
Written by
N. BOUCHOUT
N. BOUCHOUT
C. BELIN
N. BOUCHOUT
Visa
Checked by
C. BELIN
C. BELIN
N. BOUCHOUT
C. BELIN
REF: M EX NO 07 00
Visa
Advertisement
Table of Contents
Related Manuals for Dyn'Aéro Sportster
Summary of Contents for Dyn'Aéro Sportster
- Page 1 17, rue de St Exupéry 64230 Sauvagnon FRANCE : (33) 05 59 33 18 74 contact@dyn.aero Operation REF: M EX NO 07 00 100 HP MCR SPORTSTER LIGHT MANUAL Serial number : First issue: Pages Date Written by Visa Checked by...
- Page 2 Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 0. W ARNING HIS DOCUMENT IS PROVIDED FOR INFORMATION ONLY T IS THE OWNER RESPONSABILITY CHECK THE EXACTNESS OF THE PRESENT MATERIAL WITH RESPECT ACTUAL AIRCRAFT MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°2 / FLIGHT MANUAL...
-
Page 3: Flight Manual
ENSURING THAT IT COMPLIES WITH REGULATIONS AND INFORMING ANY PASSENGER OF THE LIMITATIONS OF THE AIRCRAFT WITH RESPECT TO ITS AIRWORTHINESS LIMITATIONS HIS FLIGHT MANUAL WAS ESTABLISHED ACCORDING TO FRENCH REGULATION MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°3 / FLIGHT MANUAL... -
Page 4: Registration Of The Overhauls
N° of the amendment and the date will be indicated on the bottom left corner of the page. Revision Affected Affected Date Approval Date Date of Signed N° section pages insertion 1.2. IST OF PAGES Section Page Date Section Page Date MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°4 / FLIGHT MANUAL... -
Page 5: Table Of Contents
3.13. F 3.14. M AXIMUM NUMBER OF SEATS 3.15. T IRE PRESSION 3.16. I NSTRUMENT PANEL WEIGHT LIMITATION 3.17. S OLO FLIGHT 3.18. O THER LIMITATIONS 3.19. P LACARDS MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°5 / FLIGHT MANUAL... - Page 6 NGINE GROUND RUN 5.4.6. P TAKE OFF CHECKS 5.4.7. T 5.4.8. C LIMB 5.4.9. C RUISE 5.4.10. D ESCENT 5.4.11. A PPROACH 5.4.12. F INAL 5.4.13. G ROUND MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°6 / FLIGHT MANUAL...
- Page 7 LEANING AND TREATMENT 9. SUPPLEMENTARY SYSTEMS AND EQUIPMENTS 9.1. I NTRODUCTION 9.2. M INIMUM EQUIPMENT LIST 9.3. L IST OF THE SUPPLÉMENTARY SYSTEMS AND EQUIPMENTS 9.4. S UPPLEMENTARY ELEMENTS DESCRIPTIONS MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°7 / FLIGHT MANUAL...
- Page 8 Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 Intentionally left blank MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°8 / FLIGHT MANUAL...
-
Page 9: Warning
WARNING: Signifies that a failure to observe the corresponding procedures will lead to a minor or major deterioration of the long term flight safety. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°9 / FLIGHT MANUAL... -
Page 10: Specifications
Draws attention to a condition which although not particularly related to the flight safety is important or unusual. 2.4. PECIFICATIONS Kit aircraft of the type : Dyn'Aéro MCR Sportster Cantilever low-mounted wing. Carbon structure with wing and control surface skins made in light alloy. Span 6.63... -
Page 11: Three View Diagram
Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 2.6. HREE VIEW DIAGRAM MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°11 / FLIGHT MANUAL... - Page 12 Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 Intentionally left blank MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°12 / FLIGHT MANUAL...
-
Page 13: Limitations
Aircraft might be exposed to excessive loads. 127 kts VFE Maximum speed allowed with flaps 170 km/h Do not exceed this Velocity with Flaps Extended extended 92 kts MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°13 / FLIGHT MANUAL... -
Page 14: Ndicated Airspeed Instruments Markings
Manoeuvres must be carried out with caution and (143 / 173kts) only in conditions of calm air Red segment (320 km/h) Maximum speed for all operations (173 kts) MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°14 / FLIGHT MANUAL... -
Page 15: Engine Installation
Minimum: 0.8 Bar Maximum: 7 Bars Fuel pressure Minimum: 0.15 Bar Maximum: 0.40 Bar Octane grade of fuel: Refer to Rotax manual Oil quality: Refer to Rotax manual MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°15 / FLIGHT MANUAL... -
Page 16: Mt Propeller
Three-bladed, electrical variable pitch Propeller diameter 1.56 m Angle of Propeller blades at 75% of Propeller radius normal: variable pitch Maximum Propeller rotation speed 2400 rpm Torque 4.6 daN.m MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°16 / FLIGHT MANUAL... -
Page 17: Fixed Pitch Propeller To Be Used With Rotax 912S Engine Only
!! Tighten propeller bolts before first flight, after 1 flight hour and 5 flight hours. Then control tightening every 50 flight hours and after each ground period that last more than 1 mouth !!!!!!!! MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°17 /... -
Page 18: Ngine Instrument Markings
5 to 7 Bars 7 Bars Fuel Quantity Litre 1 Litre 80 Litres Note carefully : Do not switch off the main switch before turning off the engine. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°18 / FLIGHT MANUAL... -
Page 19: Nstrument Markings
15 / 45% M.A.C. Datum M.A.C. Balance ratio compared to MAC M.A.C. = 800 mm ; reference datum : 13.5 mm ahead of left wing leading-edge. 3.9. PPROVED MANOEUVRES MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°19 / FLIGHT MANUAL... -
Page 20: Anoeuvring Load Factor
280 mm diameter wheel 2.2 bar 210 mm diameter wheel 3 bar Main landing gear : 280 mm diameter wheel 2.2 bar 3.16. I NSTRUMENT PANEL WEIGHT LIMITATION MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°20 / FLIGHT MANUAL... -
Page 21: Solo Flight
3.19.6. Miscellaneous placards and markings In luggage compartment : "Maximum luggage weight = 15 kg" Fuel tank filler : "Fuel tank : 80 l Mini fuel grade : RON 90" MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°21 / FLIGHT MANUAL... - Page 22 Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 Oil tank filler "Oil tank : 3.5 l 10 W 40" MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°22 / FLIGHT MANUAL...
-
Page 23: Emergency Procedures
................. 70 knots Fuel tap ..................closed Magnetos ..................OFF Flaps ................as required Battery ..................OFF Never attempt to make a U turn to return to the runway. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°23 / FLIGHT MANUAL... -
Page 24: I N - Flight Restart
Throttle setting ................fully open Electric fuel pump ..................off Fuel tap ..................closed If the fire persists : Magnetos ................... off Battery ................... off EVACUATE THE AIRCRAFT MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°24 / FLIGHT MANUAL... -
Page 25: Airborne Engine Fire
Flaps ..............retracted / as required Belt / Safety harness ................tight Electric fuel pump ..................off Throttle setting .................. closed Magnetos ................... off Fuel Tap ..................closed Battery ................... off MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°25 / FLIGHT MANUAL... -
Page 26: Planned Forced Landing With Engine Running
4.8.4. Electric generation failure Low battery warning light ..................lit 4.8.5. Low voltage (voltmeter). Switch off all non-essential electrical equipment and fly to the nearest airfield and land. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°26 / FLIGHT MANUAL... -
Page 27: Normal Procedures
Weight and balance (including luggage) ..............checked Canopy condition (clean) ..................checked 2 FUSELAGE, LEFT SIDE Static vent, .................. clean, unobstructed Antenna mounting ....................checked Watch out not to hurt yourself with antennas MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°27 / FLIGHT MANUAL... - Page 28 Wing tip condition and security, navigation lights (where fitted) ......... checked Aileron and flap conditions and hinges ..............checked Tightness to fuselage ....................checked Tightness & security of front wheel and main undercarriage fairings and spats ..checked MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°28 / FLIGHT MANUAL...
-
Page 29: Pre -Flight Check
Propeller ..................full fine pitch Throttle ..................closed Magnetos ..................BOTH Propeller area ..................clear Starter .............. operate when ready Then follow the procedure for starting when cold. 5.4.4. Taxiing MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°29 / FLIGHT MANUAL... -
Page 30: Engine Ground Run
Electric fuel pump @ 300 ft AAL ..............off Engine readings ................. checked Warning light panel ................... unlit Flaps ................Retracted 5.4.8. Climb Full throttle, maintain 75 kts I.A.S. until reaching 4000 ft AAL. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°30 / FLIGHT MANUAL... -
Page 31: Cruise
Parking brake ................... on Radio, Navigation and instruments .............. off Magnetos ............cut-off test at 2000 rpm Strobe light ................... off Magneto contact ..................off Battery ................... off MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°31 / FLIGHT MANUAL... - Page 32 Dyn'Aéro 17, rue de St Exupéry 64230 Sauvagnon (33) 05 59 33 18 74 contact@dyn.aero 10/10/2013 Intentionally left blank MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°32 / FLIGHT MANUAL...
-
Page 33: Performances
6.2.2. Stalling speed (knots) Flaps 0° 10° 25° Bank angle 0 ° 30 ° 60 ° Flaps 0° 10° 25° Bank angle 0 ° 30 ° 60 ° MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°33 / FLIGHT MANUAL... -
Page 34: Take-Off Performances (Rotax 912 S 100 Hp)
6.2.6. Effect of rain and insects on aircraft performance, flying and handling qualities. Decrease the performances by 4% 6.2.7. Cross-wind demonstrated performances 20 kts 6.2.8. Noise limitations Noise certificate is not required for aircraft with certificate of restricted Airworthiness. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°34 / FLIGHT MANUAL... -
Page 35: Weight & Balance
ALANCE REGISTRATION AND LOADING ENVELOPE 7.2.1. Loading envelope Balance ratio compared to MAC M.A.C. = 800 mm ; Reference datum : 13.5 mm ahead of left wing leading-edge. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°35 / FLIGHT MANUAL... -
Page 36: Weight & Balance Procedure
• Divide the moment sum by the total weight. The result gives the location in meter of the actual Aircraft center of gravity. • Check the computed moment arm is within the weight and balance envelope shown on previous page. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°36 / FLIGHT MANUAL... -
Page 37: Aircraft Operation, Servicing And Maintenance
ESPECT THE MAINTENANCE MANUAL SCHEDULE 8.3. IRCRAFT MODIFICATIONS AND REPAIRS The Airworthiness authorities and the manufacturer must be informed before all modification or repair, which can change the aircraft Airworthiness. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°37 / FLIGHT MANUAL... -
Page 38: Parking
LEANING AND TREATMENT Regularly clean all control surfaces and the inside of the aircraft. Cleaning products must be suitable for surfaces to be cleaned. Check product before each canopy cleaning. MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°38 / FLIGHT MANUAL... -
Page 39: Supplementary Systems And Equipments
Cylinder head temperature Fuel level indicator Oil level indicator 9.3. IST OF THE SUPPLÉMENTARY SYSTEMS AND EQUIPMENTS Date Document N° Title of the supplementary element 9.4. UPPLEMENTARY ELEMENTS DESCRIPTIONS MEXNO07 100 HP MCR SPORTSTER MAJ [12/02/02] Page N°39 / FLIGHT MANUAL...
