INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
Before operating this vehicle, please read all printed materials thoroughly.
Horizon Hobby is not responsible for inadvertent errors in this manual.
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
AXI05000T1/T2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCX6 JEEP and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby SCX6 JEEP

  • Page 1 Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla pagina del prodotto per le informazioni manuali più aggiornate. INSTRUCTION MANUAL AXI05000T1/T2 BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Before operating this vehicle, please read all printed materials thoroughly. Horizon Hobby is not responsible for inadvertent errors in this manual.
  • Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Using the Two Speed transmission ............... 8 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if it a combination of waterproof and water-resistant components to has not been certified as water-resistant or waterproof.
  • Page 4: Box Contents

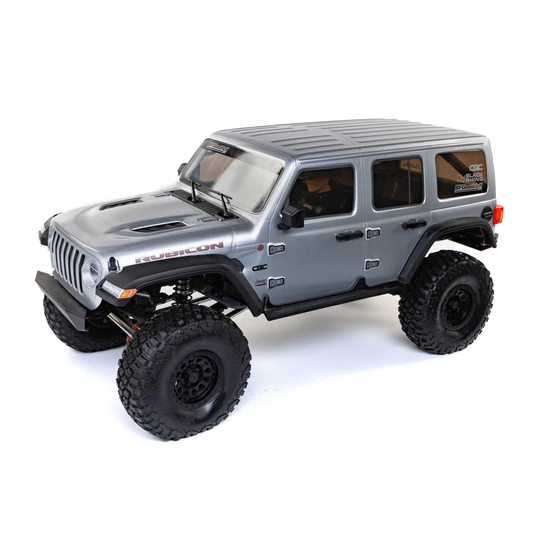

    BOX CONTENTS • SCX6 1/6 Jeep JLU Wrangler RTR ™ - SR515 DSMR 5 CH Receiver (SPMSR515) - 1200Kv 1/6 Brushless Sensored Crawler Motor (SPMXSM3100) - 120A Crawl Smart Brushless Sensored ESC (SPMXSE1080) - Water Proof S905 Large Scale Servo 15T (SPMS905) - Water Proof Metal Gear Surface Servo (SPMS614) •...
  • Page 5: Getting Started Checklist

    GETTING STARTED CHECKLIST Read the manual Power on the transmitter Familiarize yourself with the vehicle and its components Install the vehicle battery in the vehicle Check all screws, especially the driveshaft setscrews, for Check for proper function of the throttle and steering tightness from the factory Range check the radio system Charge the vehicle battery...
  • Page 6: Charge The Vehicle Battery

    CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fire or explode. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries.
  • Page 7: Adjusting The Vehicle Battery Tray

    ADJUSTING THE VEHICLE BATTERY TRAY The battery trays may be adjusted to fit a wide range of battery sizes. To adjust the battery tray: 1. Loosen the four flathead screws shown in the illustration. 2. Slide the ends of the battery tray in or out to fit the desired battery. 3.
  • Page 8: Binding

    BINDING Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The transmitter and receiver are bound at the factory. If you need to rebind, follow the instructions below. 1.
  • Page 9: Vehicle Maintenance

    VEHICLE MAINTENANCE Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain your vehicle. Replace any Check for wear on Check driveshaft...
  • Page 10: Esc Operation

    ESC OPERATION SPECIFICATIONS 47mm × 36mm × 24mm Dimensions (L × W × H) Weight 4 oz (113.4g) 120A Max Current Power button Voltage Range Voltage Range 2-4S Lipo Programming port 6 or 7.4V selectable, Servo Output Voltage Continuous current of 6A (BEC) ESC MOTOR PAIRING Battery Input Connector...
  • Page 11: Gear Ratios

    1. Running Mode: Select your running mode, Forward and Reverse 7. Turbo Delay: When “Turbo Delay” is set to “Instant”, the Turbo without brake (F/R) is the preferred rock crawler mode. Select Timing will be activated immediately when the throttle trigger is Forward Reverse and Brake (F/R/B) if you want to use reverse moved to the full throttle position.
  • Page 12: Limited Warranty

    NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the DAMAGES. Further, in no event shall the liability of Horizon exceed the product purchased (the “Product”) will be free from defects in materials...
  • Page 13: Warranty And Service Contact Information

    SUPPLIER’S DECLARATION OF CONFORMITY more of the following measures: Axial SCX6 Jeep JLU Wrangler (AXI05000) • Reorient or relocate the receiving antenna. This device complies with part 15 of the FCC Rules. Operation is •...
  • Page 14: Compliance Information For The European Union

    EU COMPLIANCE STATEMENT: EU Manufacturer of Record: Axial SCX6 Jeep JLU Wrangler (AXI05000) Horizon Hobby, LLC Hereby, Horizon Hobby, LLC declares that the device is in 2904 Research Road compliance with the following: EU Radio Equipment Directive 2014/53/ Champaign, IL 61822 USA EU;...
  • Page 15: Exploded Views

    AXI05000 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE FRONT AXLE VORDERACHSE ESSIEU AVANT AXI254006 AXI254002 ASSALE ANTERIORE AXI254005 TLR255010 AXI254006 AXI252011 AXIC0225 AXI254004 AXI256000 AXI254006 AXI252004 LOS255016 AXI254005 AXI237033 AXI254005 AXI252009 TLR255010 AXI252005 AXI254005 AXI254006 AXI256000 TLR255010 AXI252010 TLR255010 AXI252003...
  • Page 16 AXI05000 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE REAR AXLE HINTERACHSE ESSIEU ARRIÈRE ASSALE POSTERIORE TLR255008 AXIC0225 AXI252011 LOSB5972 AXI252008 AXI252002 AXI252006 AXIC0225 AXI252007 TLR255010 AXIC0146 AXI254005 AXI252007 AXIC0045 LOSB5972 AXI256001 AXI252009 AXI252001 AXI252010 AXI254005 AXI252009 AXI237020 AXI254005 TLR255010 AXI254006...
  • Page 17 AXI05000 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS AXIC0118 AXIC0146 KAROSSERIE CHÂSSIS TLR255010 TELAIO AXI251001 AXI251009 TLR255014 AXI251001 AXI250002 AXIC1009 AXIC0085 LOS255014 AXI254007 SPMS905 LOS255017 AXI256001 AXI251001 AXI251009 AXI251008 TLR255010 LOS255014 LOS255014 AXI251010 AXIC0146 AXI254007 TLR255014 AXI251000 AXI254007 AXI251001...
  • Page 18 AXI05000 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS KAROSSERIE CHÂSSIS TELAIO LOS255014 LOS255017 LOS255014 LOS255014 AXI251002 AXI251001 LOS255014 AXI251002 AXIC0118 AXI250003 AXIC0118 AXI251007 AXIC0118 AXI251003 AXI251007 LOS255014 AXIC0118 AXI251007 AXI256002 AXI251007 AXI251003 LOS255014 AXI250003 LOS255014 AXIC0118 AXIC0118 AXI256002...
  • Page 19 AXI05000 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE BODY ASSEMBLY AXI250009 LOS255020 KAROSSERIEMONTAGE TLR5913 AXI15001 ENSEMBLE DE CARROSSERIE AXIC0012 AXI250001 GRUPPO CARROZZERIA LOS255020 AXI250010 TLR255014 AXIC0118 AXI250004 AXI250000 LOS255020 AXI250004 AXI15001 AXI250008 AXI250009 AXI250004 TLR5913 AXIC0118 TLR255013 AXIC0012 TLR255013 AXI250010...
  • Page 20: Parts List

    PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Vis d’assemblage creuse, Viti a testa cilindrica M4x12 mm ARA723412 Cap Head Screw M4x12mm (4) Inbusschraube M4x12mm (4) M4 x 12 mm (4) Vis d’assemblage creuse 2,5 x 12 ARAC9701 AR702002 Cap Hd Scrw 2.5x12(10) AR702002 Inbusschraube 2,5x12(10) AR702002 viti testa cil 2,5x12 (10) (10) AR702002...
  • Page 21 Ensemble pignon intermédiaire et AXI252016 Idler Gear&Output Shaft S Zwischenrad u. Ausgangswelle S Set alb uscita e ingr. folle arbre de sortie Ensemble engrenage d’arbre AXI252017 Lwr Shft Gear St&2spd Sld Unt Wlle Getr St&2spd Sld Set ingr. alb inf&2 velocità inférieur et glissière deux rapports AXI252018 Slipper Plate Set (2)
  • Page 22: Electronics

    Rundkopfschrauben, M5 x 10 mm LOS255017 FlatHdScrews,Stl,BO,M4x16mm(10) Vis à tête bombée, M5 x 10 mm (10) Viti a testa tonda, M5 x 10 mm (10) (10) LOS255019 FlatHdScrews,Stl,BO,M4x14mm(10) Rundkopfschrauben, M5 x 20 mm (10) Vis à tête bombée, M5 x 20 mm (10) Viti a testa piana, M5 x 20 mm (10) LOS255020 FlatHdScrews,Stl,BO,M4x18mm(10) Rundkopfschrauben, M5 x 30 mm (10) Vis à...
  • Page 23 ©2021 Horizon Hobby, LLC. Axial, the Axial logo, DSM, DX3, DSMR, IC5, EC5, SCX6, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. The Jeep name and associated vehicle likenesses are trademarks or registered trademarks of FCA US LLC and are used under license.
