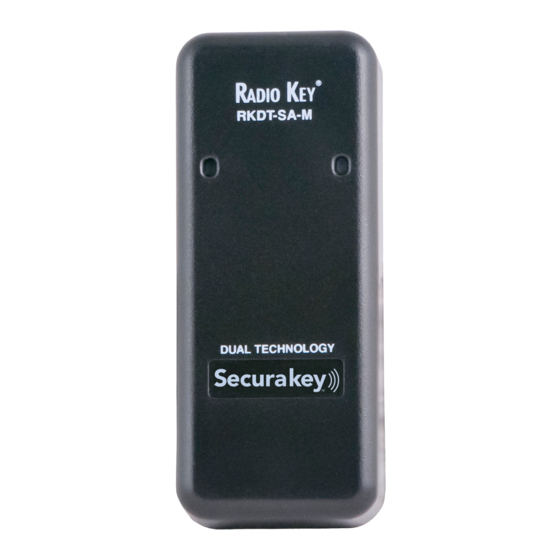

Securakey Radio Key RKDT-SA-M Operating Manual

Stand alone, dual technology proximity access control system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Radio Key

RKDT-SA-M and RKDT-SA-S

Stand Alone • Dual Technology

Proximity Access Control System

Operating Guide

Table of Contents

Need help?

Do you have a question about the Radio Key RKDT-SA-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Securakey Radio Key RKDT-SA-M

Page 1 Radio Key ® RKDT-SA-M and RKDT-SA-S Stand Alone • Dual Technology Proximity Access Control System Operating Guide...
Page 3: Table Of Contents
Radio Key RKDT-SA-M / RKDT-SA-S ® Operating Guide Table of Contents Introduction .................1 Ordering Cards or Key Tags ..........4 Programming Radio Key RKDT-SA-M/SA-S ....6 ® Handheld Programmer (RK-HHP) ........7 Programming Steps ............8 Basic Operation ...............23 Warranty ................24 Specifications ..............25 Illustrations Figure 1, Radio Key RKDT-SA-M/SA-S Units ....2 ®...
Page 5: Introduction
Radio Key RKDT-SA-M/SA-S Operating Guide ® INTRODUCTION The Radio Key RKDT-SA-M/SA-S is a programmable single-door ® proximity access control system which controls access for up to 65,000 users. It can control an electric strike, magnetic lock, or gate operator, and has an additional programmable input which may be set as a remote open input or as an LED control for use with the Wiegand output.
Page 6: Illustrations Figure 1, Radio Key ® Rkdt-Sa-M/Sa-S Units
Radio Key RKDT-SA-M/SA-S Operating Guide ® Figure 1 - Radio Key RKDT-SA-M/SA-S ® Secura Key  2...
Page 7: Figure 2, Hand-Held Programmer
Radio Key RKDT-SA-M/SA-S Operating Guide ® Figure 2 - Hand-Held Programmer (RK-HHP) Secura Key  3...
Page 8: Ordering Cards Or Key Tags
Radio Key RKDT-SA-M/SA-S Operating Guide ® ORDERING CARDS OR TAGS The Radio Key RKDT-SA-M/SA-S works with Secura Key ® RKCM-02 molded (clamshell) cards, RKCI-02 ISO-standard cards and RKKT-02 key tags. Card Format 303 (32-bit) and Format 201(26-bit) can be used. Radio Key RKDT-SA-M/SA-S ®...
Page 9: Figure 3, Radio Key ® Cards And Key Tags
Radio Key RKDT-SA-M/SA-S Operating Guide ® cards with the same facility code, be sure to present one of each type to the reader when entering facility codes. NOTE: RKxx-01 cards or key tags will not work for the RKDT-SA-M/SA-S. The LED will flash amber to let you know it is the wrong type of card.
Page 10: Rkdt-Sa-M/Sa-S
Radio Key RKDT-SA-M/SA-S Operating Guide ® PROGRAMMING RADIO KEY RKDT-SA-M/SA-S ® When the RKDT-SA-M/SA-S is first powered up, the LED will be flashing Red and Green. Present a card to the unit to set the Facility Code and the flashing will end in approximately 10 seconds.
Page 11: Handheld Programmer (Rk-Hhp)
Radio Key RKDT-SA-M/SA-S Operating Guide ® THE RK-HHP HANDHELD PROGRAMMER Note: The RK-HHP required to program the reader. One RK- HHP may be used on several readers. The RK-HHP has 16 keys: ENTER “7” SEVEN “0” ZERO “8” EIGHT “1” “9”...
Page 12: Programming Steps
Radio Key RKDT-SA-M/SA-S Operating Guide ® PROGRAMMING STEPS To program the Radio Key RKDT-SA-M/SA-S, you must first ® enter the program mode as described in the next section below. Once in the program mode, the LED will blink amber as an indicator.
Page 13 Radio Key RKDT-SA-M/SA-S Operating Guide ® password 12345.) The LED will flash amber to show that the unit is in Program Mode. The unit will “time out” and return to Active (Normal) Mode in 15 seconds if no programming follows. (Password) (ENTER) NOTE: If five incorrect passwords are entered, the unit will...
Page 14 Radio Key RKDT-SA-M/SA-S Operating Guide ® Lost or forgotten Password If the password is lost or forgotten, it can be restored to the factory default (12345). Remove the Radio Key RKDT-SA-M/SA-S ® unit from the wall and disconnect power. With the Data 1 line (white wire) temporarily connected to the Remote open line (brown wire), restore power.
Page 15 Radio Key RKDT-SA-M/SA-S Operating Guide ® the Program Mode (see page 9) then pressing Mode followed by “9” followed by Enter. (MODE) (ENTER) (Mode Number 9) While the LED is flashing Red/Green present one User Card for each Facility Code being used to the reader, one at a time.
Page 16 Radio Key RKDT-SA-M/SA-S Operating Guide ® To enter this mode, first enter Programming Mode (page 9) then press Mode, followed by 1, then 0 followed by Enter. (MODE) (Mode Number 10) (ENTER) While the LED is flashing Red/Green, present a user card for each of the facility codes(s) you want to add.
Page 17 Radio Key RKDT-SA-M/SA-S Operating Guide ® Add A Series Of Cards or Tags To The System Place the unit into the Program mode (see Page 9). Press Add, followed by the lowest card ID number. Then press Thru, followed by the highest card ID number. Then press Enter. For example, to add card number 1 through 10 to the system: (Starting (Ending User ID...
Page 18 Radio Key RKDT-SA-M/SA-S Operating Guide ® Delete A Series Of Cards or Tags From The System Place the unit in the Program Mode (see Page 9). Press Void, followed by the lowest card ID number. Then press Thru followed by the highest card ID number. Finally, press Enter. For example, to delete card numbers 1 through 10: (Starting (Ending User ID...
Page 19 Radio Key RKDT-SA-M/SA-S Operating Guide ® To read ONLY HID Cards: ® (MODE) (Mode Number 12) (ENTER) To read BOTH Radio Key and HID Cards: ® ® (MODE) (Mode Number 13) (ENTER) Set the Latch Timer: The latch timer controls the latch relay. The factory preset latch time is 1 second but it can be changed to any value from .25 seconds to 18 hours (65,535 seconds).
Page 20 Radio Key RKDT-SA-M/SA-S Operating Guide ® (SET TIMER) (15 Seconds) (ENTER) For longer latch times it may be easier to set the timer with hour: minute notation. Press SET TIMER; then press the number of hours (2 digits); then press the number of minutes; then press THRU;...
Page 21 Radio Key RKDT-SA-M/SA-S Operating Guide ® Set the Operating Mode: The Radio Key RKDT-SA-M/SA-S may be put into any of four ® operational modes. The Modes are as follows; “1” - Active (Normal) -- LED is Off “2” - Inactive (Locked) -- LED blinks Red “3”...
Page 22 Radio Key RKDT-SA-M/SA-S Operating Guide ® Mode and enter the selected Mode. For example, to set the unit to the inactive (locked) mode, the following sequence would be used: (MODE) (Mode Number 2) (ENTER) To Exit Programming Mode Immediately: Press MODE, then “1” (or 2, 3, or 4) and then press ENTER. This returns the unit to the selected mode immediately, bypassing the 15 second timeout.
Page 23 Radio Key RKDT-SA-M/SA-S Operating Guide ® Enable Timed Antipassback Place the unit in the Program Mode (see Page 9). Press SET TIMER, then press ADD, finally press ENTER. (SET TIMER) (ADD) (ENTER) Set Antipassback Timer Place the unit in the Program Mode (see Page 9). Press SET TIMER then press THRU.
Page 24 Radio Key RKDT-SA-M/SA-S Operating Guide ® Disable Timed Antipassback. Place the unit in the Program Mode (see Page 9). Press SET TIMER then VOID, finally press ENTER. (SET TIMER) (VOID) (ENTER) Configure the Relay The relay is set at the factory to be normally open and to close upon presentation of a valid card or tag or upon activation of the remote open (Request to Exit) input.
Page 25 Radio Key RKDT-SA-M/SA-S Operating Guide ® Selections are: Normally Open (Factory default) Normally Closed SecuRelay™ Option. For example, to configure the relay normally closed, the following sequence would be used: (THRU) (ENTER) (THRU) Using the RKDT-SA-M/SA-S as a Wiegand Output Reader The RKDT-SA-M/SA-S can be connected to a multidoor access control system (such as the Secura Key SK-ACP) using the Wiegand output.
Page 26 Radio Key RKDT-SA-M/SA-S Operating Guide ® Program the Input The input is set at the factory as a Remote Open input. Connecting the brown and the black wire (usually with a push button switch) will activate the relay for as long as the switch is held, plus for the time set for the latch timer.
Page 27: Basic Operation
Radio Key RKDT-SA-M/SA-S Operating Guide ® BASIC OPERATION To use the Radio Key RKDT-SA-M/SA-S, simply hold ® your Radio Key or HID Card or tag near the Radio Key ® ® ® RKDT-SA-M/SA-S Unit. The Radio Key RKDT-SA-M/SA-S ® Unit generates an RF field, which causes the card or tag to transmit a unique ID Number back to the Unit.
Page 28: Warranty
Radio Key RKDT-SA-M/SA-S Operating Guide ® WARRANTY “Secura Key products are warranted against defects in materials and assembly for life. In the event that any Secura Key manufactured product fails to perform as intended for any reason during the warranty period, Secura Key will replace the defective product with a new or refurbished product.
Page 29: Rkdt-Sa-M / Rkdt-Sa-S
Radio Key RKDT-SA-M/SA-S Operating Guide ® SPECIFICATIONS Models RKDT-SA-M RKDT-SA-S Physical Depth 0.9” (2.28 cm) 0.84” (2.13 cm) Width 1.74” (4.19 cm) 3.20” (8.12 cm) Height 4.38” (11.12 cm) 4.50 (11.43 cm) Weight 3.42 oz. (97.09 gm) 6.67 oz. (189.15 gm) Material Lexan ®...
Page 30 Radio Key RKDT-SA-M/SA-S Operating Guide ® Environment Ambient Temperature -40° to +70° C (-40° to +158° F) Humidity 0% to 95% (non-condensing) Operational Reading Distance Molded Card: Up to 6” (15.24 cm) Key tag & ISO Card: Up to 5” (12.70 cm) User Capacity 65,000 Radio Key key tags or cards (26 or 32 bit),...
Page 31 Radio Key RKDT-SA-M/SA-S Operating Guide ® FCC ID: NNHDTR1 INSTRUCTION TO THE USER “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
Page 32: Operating Guide
Radio Key RKDT-SA-M and RKDT-SA-S ® Operating Guide Revision A 20301 Nordhoff Street • Chatsworth, CA 91311 Phone: 818-882-0020 • Fax: 818-882-7052 TOLL FREE: 800-891-0020 mail@securakey.com • securakey.com...
