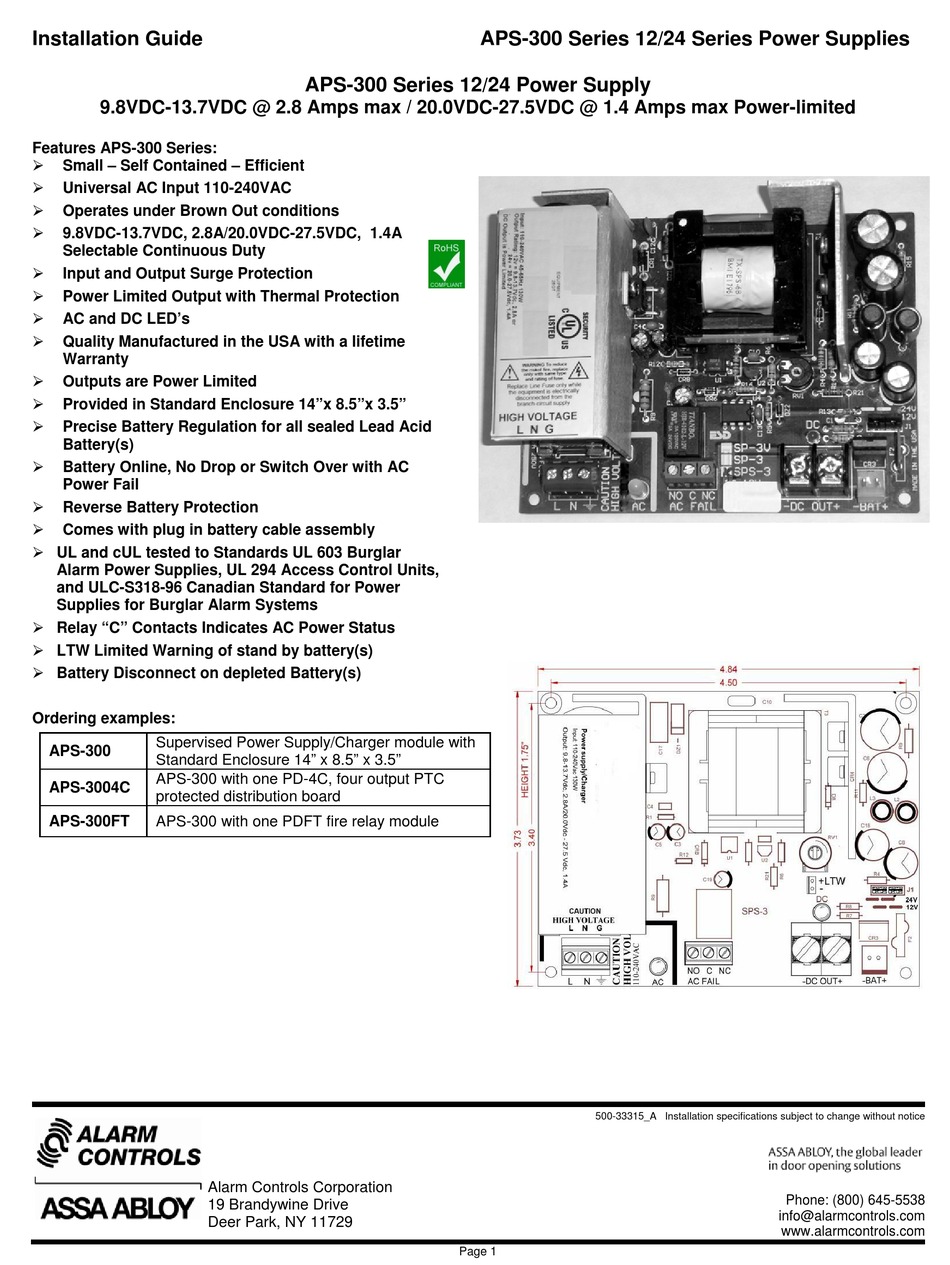

Installation Guide
9.8VDC-13.7VDC @ 2.8 Amps max / 20.0VDC-27.5VDC @ 1.4 Amps max Power-limited
Features APS-300 Series:
Small – Self Contained – Efficient
Universal AC Input 110-240VAC
Operates under Brown Out conditions
9.8VDC-13.7VDC, 2.8A/20.0VDC-27.5VDC, 1.4A
Selectable Continuous Duty
Input and Output Surge Protection
Power Limited Output with Thermal Protection
AC and DC LED's
Quality Manufactured in the USA with a lifetime
Warranty
Outputs are Power Limited

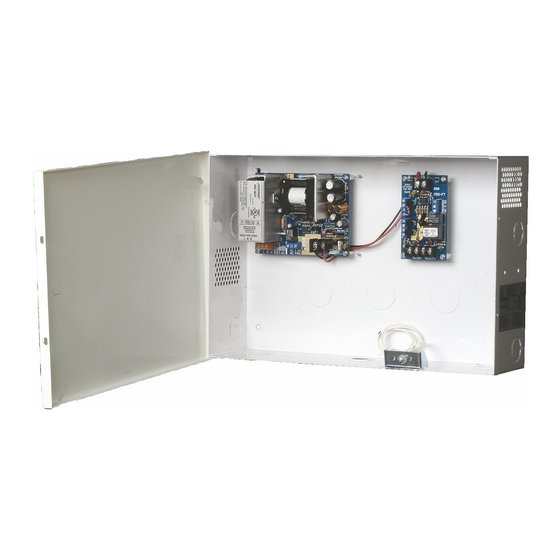

Provided in Standard Enclosure 14"x 8.5"x 3.5"
Precise Battery Regulation for all sealed Lead Acid
Battery(s)
Battery Online, No Drop or Switch Over with AC
Power Fail
Reverse Battery Protection
Comes with plug in battery cable assembly
UL and cUL tested to Standards UL 603 Burglar
Alarm Power Supplies, UL 294 Access Control Units,
and ULC-S318-96 Canadian Standard for Power
Supplies for Burglar Alarm Systems
Relay "C" Contacts Indicates AC Power Status
LTW Limited Warning of stand by battery(s)
Battery Disconnect on depleted Battery(s)
Ordering examples:
Supervised Power Supply/Charger module with
APS-300
Standard Enclosure 14" x 8.5" x 3.5"
APS-300 with one PD-4C, four output PTC
APS-3004C
protected distribution board
APS-300FT
APS-300 with one PDFT fire relay module
Alarm Controls Corporation
19 Brandywine Drive
Deer Park, NY 11729
APS-300 Series 12/24 Series Power Supplies
APS-300 Series 12/24 Power Supply
Page 1
500-33315_A Installation specifications subject to change without notice
Phone: (800) 645-5538
info@alarmcontrols.com
www.alarmcontrols.com
Advertisement
Summary of Contents for Alarm Controls Corporation APS-300 Series
- Page 1 Installation Guide APS-300 Series 12/24 Series Power Supplies APS-300 Series 12/24 Power Supply 9.8VDC-13.7VDC @ 2.8 Amps max / 20.0VDC-27.5VDC @ 1.4 Amps max Power-limited Features APS-300 Series: Small – Self Contained – Efficient Universal AC Input 110-240VAC ...
-
Page 2: Specifications
All output faults are self restoring. The APS-300 series have a precision lead acid battery(s) charger that obtains maximum battery life while providing a 9.8VDC- 13.7VDC or 20.0VDC-27.5VDC uninterruptible power supply. The APS-300 Series are protected against Battery(s) reversal, shorting or overloading. - Page 3 APS-300 Series Installation continued Low Battery Disconnect (Battery cut-off) APS-300 Supervision features: 12v/24v ..........9.8VDC/VDC/19.6VDC DC Output Electronic Power Limited ......Yes This feature limits the output current to a maximum peak of 6 APS-300 Physical Dimensions Amps to comply with UL Power Limiting requirement.
- Page 4 Select output voltage by shifting the jumper J1 for 12VDC or 24VDC. Only change output voltage when AC is OFF and Batteries are not connected. The APS-300 Series has a continuous output rating of 9.8VDC-13.7VDC at 2.8 Amps or 20.0VDC-27.5VDC at 1.4 Amps. If a power distribution product is used, the total current draw of these devices must be subtracted from the available current rating.
-
Page 5: Battery Selection
Battery Selection The table below shows typical standby time in hours for various loads and batteries. The table works for either 12V or 24V batteries. The APS-300 has been evaluated by UL with an 18Ah sealed lead acid battery for 12V and (2) - 9AH batteries for 24V to meet the 4 hour stand by requirement. - Page 6 Page 6 APS-300 Instructions 500-33315_A...
- Page 7 PDFT being shorted or opened. The EOL and Releasing Devices. supervises the pair of wires. 500-33320_A Installation specifications subject to change without notice Alarm Controls Corporation Phone: (800) 645-5538 19 Brandywine Drive info@alarmcontrols.com Deer Park, NY 11729 www.alarmcontrols.com...
- Page 8 Size: PD4C 3 3/4”H x 2 1/4”W x 1”D Mounting: 3 7/16”H x 1.7/8”W 4 PTC Circuit Breaker Outputs with status LED’s with PD4C 700mA fuses 500-33325_A Installation specifications subject to change without notice Alarm Controls Corporation Phone: (800) 645-5538 19 Brandywine Drive info@alarmcontrols.com Deer Park, NY 11729 www.alarmcontrols.com...
