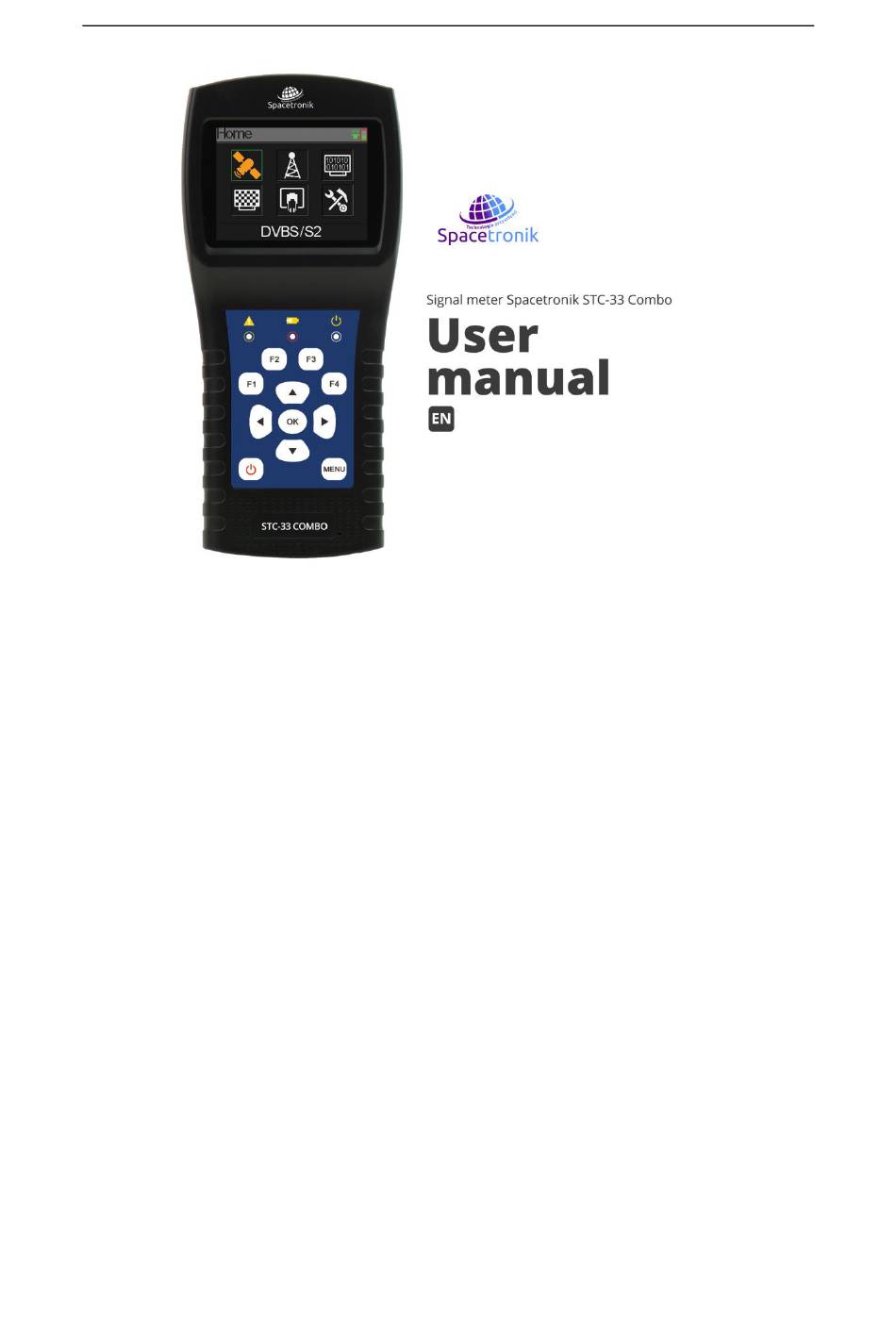

HD Digital Signal Meter Spacetronik STC-33 Combo - User manual
1. MAIN FEATURES ............................................................................................................................ 2
2. BUTTONS AND INDICATORS .......................................................................................................... 3
3. HOW TO MEASURE ....................................................................................................................... 4
4. HOME MENU ................................................................................................................................. 5
5. DVB-S/S2 ....................................................................................................................................... 5
6. DVB-T/T2 . ........................................................................................................................................... 15
7. DVB-C .......................................................................................................................................... 17
8. SYSTEM SETTING ......................................................................................................................... 18
9. ACCESSORIES ............................................................................................................................... 19
10. TROUBLE SHOOTING ................................................................................................................. 20
11. TECHNICAL SPECIFICATION ........................................................................................................ 21
Please refer to the following notes before use.
• Please read this user manual carefully to be able to safely use and maintain your meter.
•The technical specifications and operation guides in this manual are subject to changes
without notice.
• Before using the first time, please charge the battery for 3 hours.
•Please use the special adapter for charging attached with the meter, do not use it for
other product
• In case of any technical questions, please contact your local dealer.
1 / 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-33 Combo and is the answer not in the manual?

Questions and answers

Related Manuals for Spacetronik STC-33 Combo

Summary of Contents for Spacetronik STC-33 Combo

  • Page 1: Table Of Contents

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 1. MAIN FEATURES ..........................2 2. BUTTONS AND INDICATORS ......................3 3. HOW TO MEASURE ........................4 4. HOME MENU ..........................5 5. DVB-S/S2 ............................5 6. DVB-T/T2 ............................15 7.

  • Page 2: Main Features

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 1. M EATURES  Support DVBS/DVBS2/DVBT/DVBT2/DVBC/DVBC2/MCNS  LNB short-circuit protection and indicator.  Extremely fast and accurate with high sensitivity.  320*240 color LCD display with controllable back light. ...

  • Page 3: Buttons And Indicators

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 2. B UTTONS AND NDICATORS 1. LNB Input: Signal input port for DVB-S. Connects directly to LNB using coaxial cable. 2. Antenna Input: Signal input port for DVB-T and DVB-C. Connect directly to Antenna using coaxial cable.

  • Page 4: How To Measure

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual F1: Turn on/off the screen display F2: Enable/disable deep when pressing keys F3: Enter to TP control menu in Satellite Measure menu F4: Enter to Auto DiSEqC function in Satellite Measure menu Note: Press to display help bar on menus to get more information.

  • Page 5: Home Menu

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual to help you to learn the locked signal well. User can edit the satellite position and transponder in Satellite Edit menu. How to measure terrestrial signal: Connect the signal cable to IEC-Type, Female jack first.
  • Page 6 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual  019.2°E Astra 19E: The current satellite. Press [/] to switch between satellites and press [OK] to enter satellite list to select satellite. Press [OK] button to select the focused satellite and press [MENU] to exit from edit menu.
  • Page 7 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 5.1.2 LNB Measurement Press F2 to enter into feed current and voltage of LNB measurement menu as below. 5.1.3 TP C ONTROL TP Control is short for transponder control. Press [F3] in Satellite Measure menu to enter this menu.
  • Page 8 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 5.2 LNB S ETTING All the LNB parameters are set in this menu. Such as LNB type, LNB power, 22k, Diseqc type and motor type.  Astra 19E: The current satellite. Press [/] to switch between satellites and press [OK] to enter satellite list to select satellite.
  • Page 9 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 5.2.1 USALS Setting: Press [OK] to enter USALS SETUP menu on Position Type if the type sets to USALS parameters  019.2°E Astra 19E: The current satellite. Press [/] to switch between satellites and press [OK] to enter satellite list to select satellite.
  • Page 10 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 5.3 E ATELLITE The parameters of satellite, such as Orbit Position and Transponder can be edit in this menu. All the satellites will be listed in this menu. Press [/] buttons to move curse in list.
  • Page 11 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual  40~50~60: The range of power level. Press [F3] to switch the display range between 40~60, 40~80 and 40~ 100.  03172 MHz/54 dBuV : The current frequency curse and power level, press [/] to set the current frequency.
  • Page 12 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual User need to adjust the attitude of the meter according to the simulated results until the current simulated values very close to the right ones. As close as possible. Then the BLUE lines will turn GREEN.
  • Page 13 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual User need to adjust the attitude of the meter according BLUE arraw on the screen. The meter will deep and the RED icon turns to GREEN if the RED icon closes to the YELLOW one. It is better to make the two icon overlapping.
  • Page 14 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual Pow: The power supply of the input cable line. 22KHz: The 22k status of the input cable line. E03F20D1: The command data of the input cable line. The pre-command. Move centre: The behavior of dish for command E03F20D1.

  • Page 15: Dvb-T/T2

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 6. DVB-T/T2 User can measure the live DVB-T/T2 signal, analyze the spectrum, the scope between transponders , auto scan all the saved frequencies and list all the locked ones. There are six submenus: Measure, Auto Scan, RF Channel List , Scope, Spectrum chart and ANT power.
  • Page 16 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 6.2 A The meter will scan all the saved frequencies and show the lock status one by one and will then return to the main menu once scanning is finished. Press [MENU] to abort a scan in progress and return to the main menu.

  • Page 17: Dvb-C

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 7. DVB-C User can measure DVB-C live signal in this submenu. There are total six submenus: Cable Measure, Auto scan, RF channel list, Tilt , Spectrum chart and Trunk voltage.

  • Page 18: System Setting

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual This menu shows all the locked frequencies during Auto Scan. 7.4 T This menu shows tilt of three channels` power level.  C16,C17, C18: The channel number. Press [/] to switch between them. Press [/] to change the...

  • Page 19: Accessories

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual  Auto Standby: Set the time for meter to enter standby mode automatically. Press [◄/►] to switch between Off, 10 min, 20 min, 30 min and 60 min.  Language: The language of UI.

  • Page 20: Trouble Shooting

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 10. T ROUBLE SHOOTING 1. Unable to power on: Charge the meter about 3 hours until the charge light turn blue. 2. Warning LED flashing: Antenna overload, power off the meter and check the signal cable.

  • Page 21: Technical Specification

    HD Digital Signal Meter Spacetronik STC-33 Combo – User manual 11. T ECHNICAL PECIFICATION DVB-T CBER (before Viterbi): 1E-7 – 1E-3 Bit Error Rate (BER) VBER (before Reed Solomon): 1E-7 – 1E-3 Frequency range 44-862MHz Power level 30-100 dBμV, +/-2dB 5 - 35dB, +/-0.5dB...
  • Page 22 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual BER (before Reed Solomon): 1E-7 – 1E-3 Bit Error Rate (BER) PER (Packet Error Rate): 1E-6 – 1E-2 Frequency range 44-862MHz Power level 35-100 dBμV, +/-2dB 20 - 40dB, +/-0.5dB Symbol Rate 5.6 Msym/s...
  • Page 23 HD Digital Signal Meter Spacetronik STC-33 Combo – User manual Voltage 5V/12V/18 V 13/18 V mA max 400 mA max DiSEqC 1.2 DiSEqC control of dish motor switches committed & uncommitted Mini DiSEqC (22kHz) 22 kHz, Tone Burst SCD EN 50494...
