KCV-434SD / KCV-D434SD
Hands-Free Video Door Phone
Slim and compact design
•
4.3" digital LCD color monitor
•
Icon buttons
•
OSD function
•
Communication with visitor and door aperture
•
Contact button
•
Lobby opertion with the guard
•

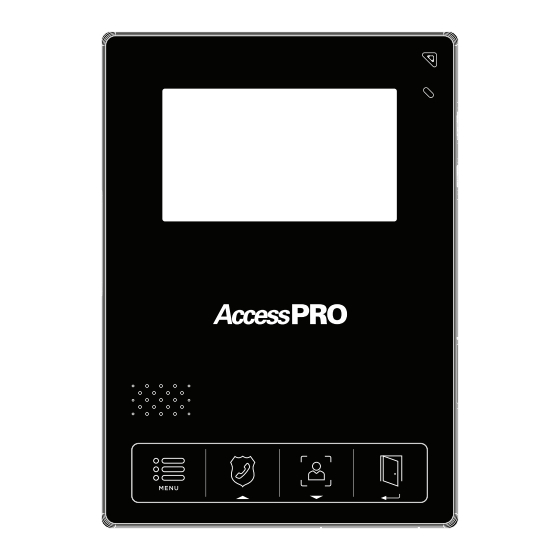

Monitor
TVPRO400MW
TVPRO400MB
MANUAL TVPRO400
MANUAL
[Installation and Operation Manual]
Camera
TVFPRO20
TVPRO400
Advertisement
Table of Contents
Summary of Contents for AccessPRO TVPRO400
- Page 1 KCV-434SD / KCV-D434SD MANUAL TVPRO400 MANUAL [Installation and Operation Manual] Hands-Free Video Door Phone Slim and compact design • 4.3” digital LCD color monitor • Icon buttons • OSD function • Communication with visitor and door aperture • Contact button •...
-
Page 2: Installation Location
Installation Location • Monitor Installation • Camera Installation Lower section · The standard installation of the monitor · The standard camera installation is at of the box Lens center is at an approximate height of 1.5 meters, a height when the lens is approximately Lens Center from the center of the monitor at eye level. -
Page 3: Product Components
Product Components • Cable • Monitor • Wall frame 4-pin cable for the camera 1ea Screws for monitor instalaltion • 4X25mm 4ea 3X8mm 1ea ( at screw heads) • Camera [TVFPRO20] Screws to x the camera 3X5mm Screws to x the camera 2X8mm Main body support... -
Page 4: Name & Functions Of Each Part
Name & Functions of Each Part • Monitor · Front · Side · Back ① LCD Monitor ⑨ Call audio ② Speaker ⑩ Volume switch ③ Microphone ⑪ Power ON switch ④ Power supply LED ⑫ Camera terminal ⑤ Menu ⑬... -
Page 5: Product Connection Diagram
Product Connection Diagram • System configuration (Camera Mode) 2-wire 4-wire polarized 4-wire Door aperture with external Monitor Monitor Camera power input • System configuration (System Mode) Telephone reception 4-wire 4-wire Monitor Distribuitor Guard’s telephone • Camera cable connection • Monitor cable connection •... - Page 6 Operation Instructions Instructions for operation • Camera Communication You can hear a ringing Press the call button Press the [talk] button Press the [talk] button to sound on all connected A ringtone can be and communicate with 1 camera end communication monitors, and an image heard from the device (communication time: 3 minutes)
- Page 7 Operation instructions Instructions for operation • Sound adjustment Call adjustment: see on one side of the monitor and find the Vol button. It consists of 3 levels (high / medium / silent) Receiver settings: While communicating, adjust the R. Vol button. It consists of 3 levels (high / medium / silent) •...
- Page 8 O0516 Las especificaciones están sujectas a cambio sin previo aviso.
