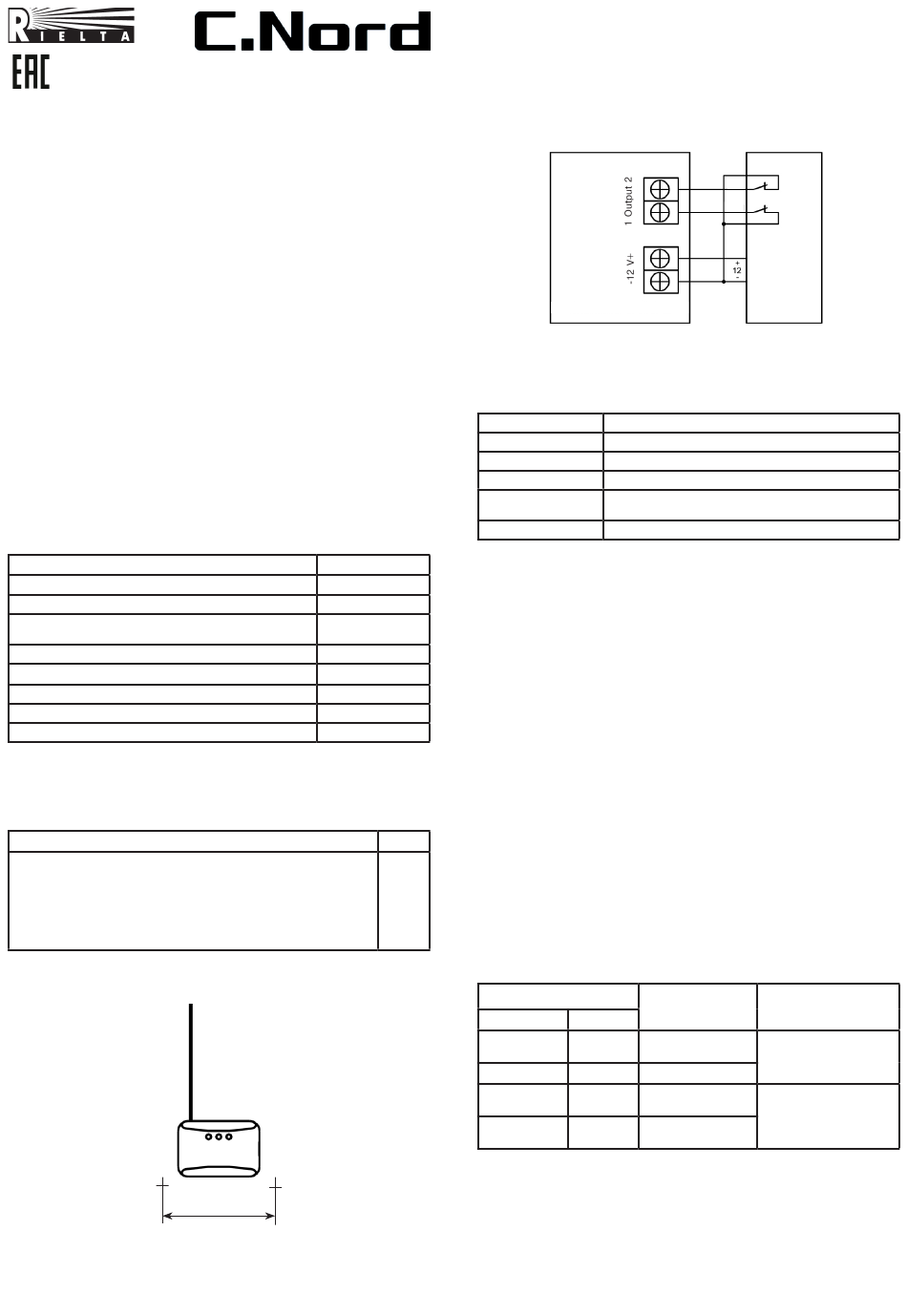

Rielta C.NORD CN-Repeater Installation Manual

WIRELESS ZONE EXTENSION
«CN-Repeater»
Installation Guide

1 General Information

Wireless zone extension repeater «CN-Repeator» (hereinafter, the
CN-Repeator) is intended for operation as a part of multicomponent
fire control panels (FCP) and/or security control panels (SCP),
providing two-way address exchange of encoded identified signals
(messages) with wireless security and fire detectors and other terminal
devices (hereinafter, the «TD»), and retransmission of the received
information via the radio channel in the frequency range from 433.05
to 434.79 MHz by the protocol «CN-Contact-R».
C N - R e p e a t o r r e t r a n s m i t s r e c e i v e d i n f o r m a t i o n b y t h e
«CN-Contact-R» protocol ver. 6 and higher.
Total number of TD conneced to CN-Repeator is not more than 31.
CN-Repeator is powered by an external stabilized DC power supply
with nominal voltage 10...15 V.
CN-Repeator provides the possibility of hooking up to external device
(hereinafter, ED): personal computer (hereinafter, «PC») or any other
device supporting CDC-ACM interface of the virtual communication
port via USB and is intended for internal software update.

2 Specifications

Table 1
Parameter
Power supply, V DC
Maximum consumed current, mA
Operating temperature, о С
Dimensions, mm, maximum
Weight, kg, maximum
IP rating
Operating frequency range, MHz
Maximum output power, mW
CN-Repeator is designed for continuous operation around the clock.

3 Scope of Delivery

Each BRSS-RK-RTR unit package contains items listed in Table 2.
Table 2
Name
Wireless zone extension repeater «CN-Repeator»
Antenna
Screw 3-3х30.016
Wall plug NAT 5х25 SORMAT
Wireless zone extension repeater «CN-Repeator». Installation
Guide

4 Design

CN-Repeator design and markup scheme are shown in Figure 1.
REPEATER
Value
10 ... 15
50
from minus 30 to
+50
82 х 57 х 32
0.06
IP20
433.05 – 434.79
10
63
Figure 1
On the front panel yellow, red and green LED indicators are located.
The LEDs display the CN-Repeator status (see Table 3). The following
elements are arranged under the CN-Repeator cover: terminals for
external power supply connection, antenna and microswitch for tamper
protection.

5 CN-Repeator connection

CN-Repeator connection is fulfilled in accordance with connection
pattern 3.

6 LED Indication

LED indication modes are listed in Table 3.
Table 3
Operation mode
Binding
Binding is finished
Identification
Communication
quality appraising
Bootloader mode

7 Switching ON and Setting up

7.1 Open cover and install antenna into terminal block.
7.2 Prepare control panel (CP) to logging the new device («Binding»
procedure) in accordance with the CP manual.
During binding procedure only one CP, which is prepared for the
procedure, should be located in the CN-Repeator radio coverage
zone. Supply 12 V on terminals «-12 V+».
7.4 Close «RESET» pin contacts located on the CN-Repeator PCB.
7.5 Assure yourself of periodical greed LED blinking («Binding»
mode). Open pin contacts.
7.6 Fulfill binding procedure in accordance with the CP manual.
7.7 Wait untill red LED indicator short-trerm blink.
Note – Binding mode is active during 100 sec since the
CN-Repeator energizing. To restart binding it is necessary to repeat
Cls. 7.5 – 7.8.

8 Communication Quality Appraising

8.1 Bring the CN-Repeator prepared for operation to the assumed
place of installation and locate it in such a position, that antenna has
QNT
vertical orientation.
1 pc.
8.2 Press tamper contact and hold it during 3 s or more.
1 pc
8.3 Release tamper contact.
2 pcs.
8.4 Appraise CN-Repeator communication quality with the CP by
2 pcs.
LED indication modes (see Table 4).
1 copy
Note – A delay of up to 4 sec
indication switching on is possible.
Table 4 – LED Indication during communication quallity appraising
LED Indication
Color
Green
Green
Green
Red

9 Recommendations on Installation

9.1 Appraise communication quality at the assumed place of
CN-Repeator installation.
9.2 Install CN-Repeator at the place where communication quality
is apprised as «excellent» or «good» (see Cl. 8)
RP
MP
«CN-Repeator»
Figure 3
LED Indication
LED indicator intermittent lighting green
LED indicator short-term (2 sec) lighting red
Alternate green and red indicators blinking
See Table 4
Red LED indicator steadily blinking
between tampering and LED
Communication
Quality Appraisal
Mode
Three
Excellent
blinks
Two blinks Good
Communication
One blink
established
A series of
No communication
blinks
Power
supply
Recommendations
Install the
CN-Repeator
at this place
Choose another place
of installation
