Total Phase Level Shifter User Manual page 7

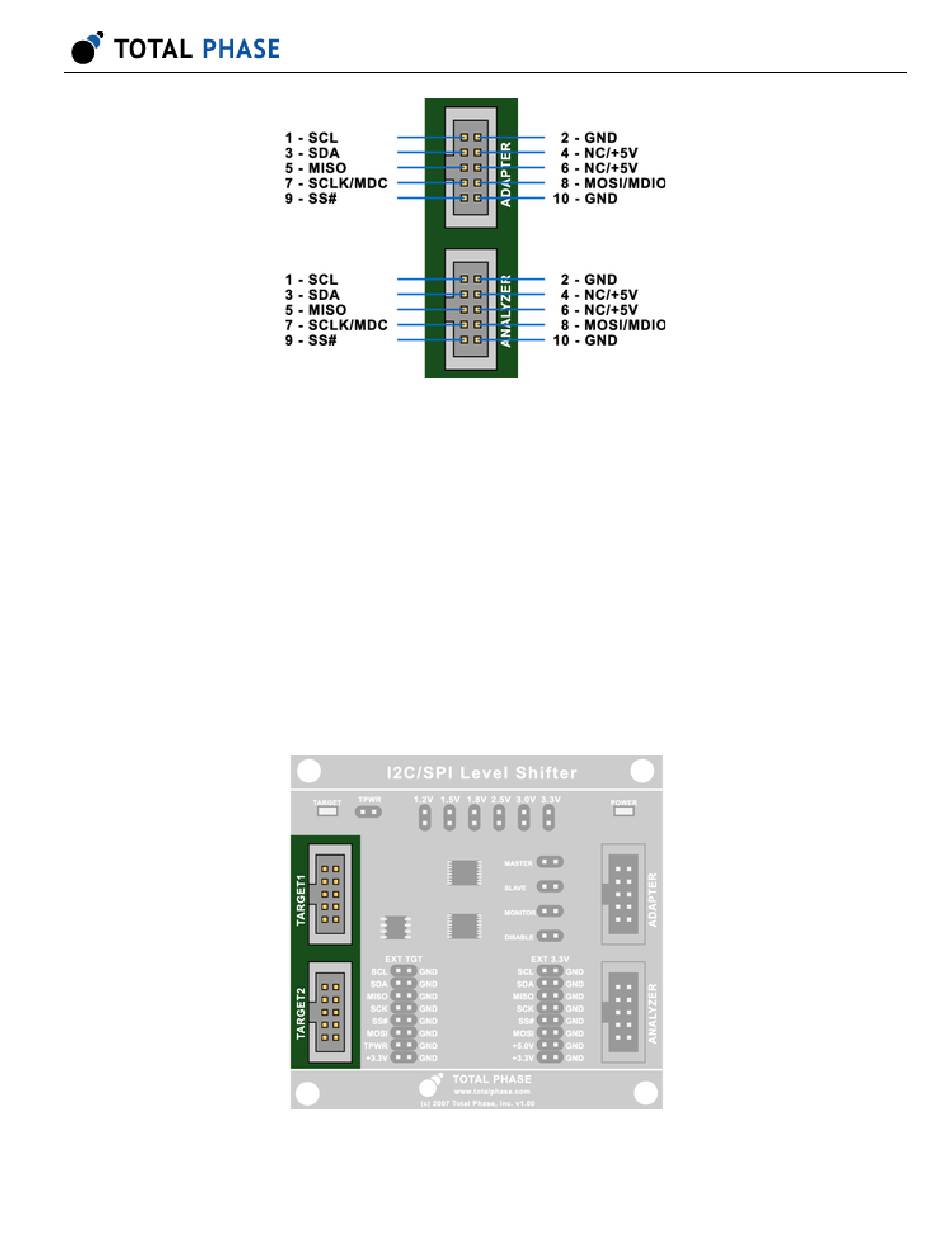

Figure 4 : The pinout for the two boxed connectors on the
Adapter/Analyzer side of the Level Shifter Board.
3.2 TARGET1 and TARGET2
There are two boxed connectors on the left side (Target side) of the Level Shifter Board
(Figure 5 ) which are used to connect the target bus to the level shifter. The signal lines
on these connectors are operating at the voltage levels specified by the user. This level
can either be specified on the board through the use of the jumper connectors, or can be
determined by the downstream system. These two connectors are cross-connected, so it
does not matter which one is used.
Level Shifter Board User Manual v1.01
7
