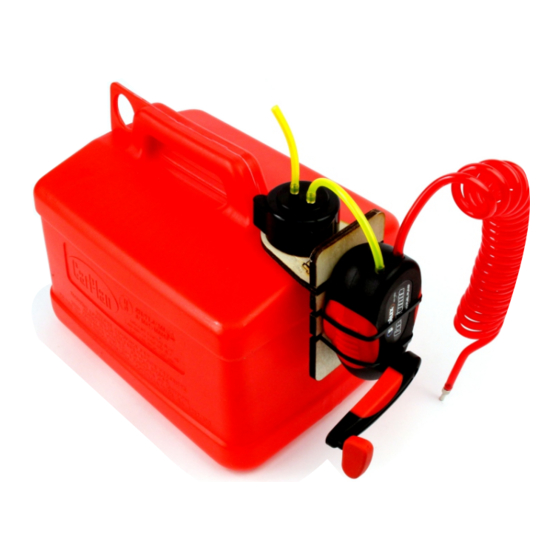

FUEL CADDY
Petrol / Jet Fuel / Glow Fuel / Smoke Fuel
Product No. JPDA0001 / JPDA0002
CONTENTS
1x Fuel Can
3x Tygon Tubing (150mm, 100mm, 60mm)
1x Prolux Hand Pump
1x Recoil Tubing
1x Filter
1x Filler Tube
1x Plywood Mount (2 pieces)
2x Cable Tie
Please check you have all items before you start.
INSTRUCTIONS
STEP 1
Glue the two pump mount plates as shown
together with 5min or 30min Epoxy.
Advertisement
Summary of Contents for Jperkins JPDA0001
- Page 1 FUEL CADDY Petrol / Jet Fuel / Glow Fuel / Smoke Fuel Product No. JPDA0001 / JPDA0002 CONTENTS 1x Fuel Can 3x Tygon Tubing (150mm, 100mm, 60mm) 1x Prolux Hand Pump 1x Recoil Tubing 1x Filter 1x Filler Tube 1x Plywood Mount (2 pieces) 2x Cable Tie Please check you have all items before you start.
- Page 2 100mm fuel tubing. Distributed by J Perkins Distribution Northdown Business Park Ashford Road STEP 6 Lenham, Kent ME17 2DL United Kingdom Assemble the pump to the mounting plates www.jperkins.com as shown using the two cable ties. sales@jperkins.com 01622 854300...
