Product Change Description
As the applicant of the below model, [
that the product,
[Model Name: V55, FCC ID: Q78-V55]
is the variant of the initial certified product,
[Model Name: V55, FCC ID: Q78-V55]
SOFTWARE MODIFICATIONS:
Protocol Stack changes: NO
MMS/STK changes: NO
JAVA changes: NO
Other changes detailed: NO
HARDWARE MODIFICATION:
Band changes: NO
Power Amplifier changes: NO
Antenna changes:
Main Board: Changed from dq8A to dq8B

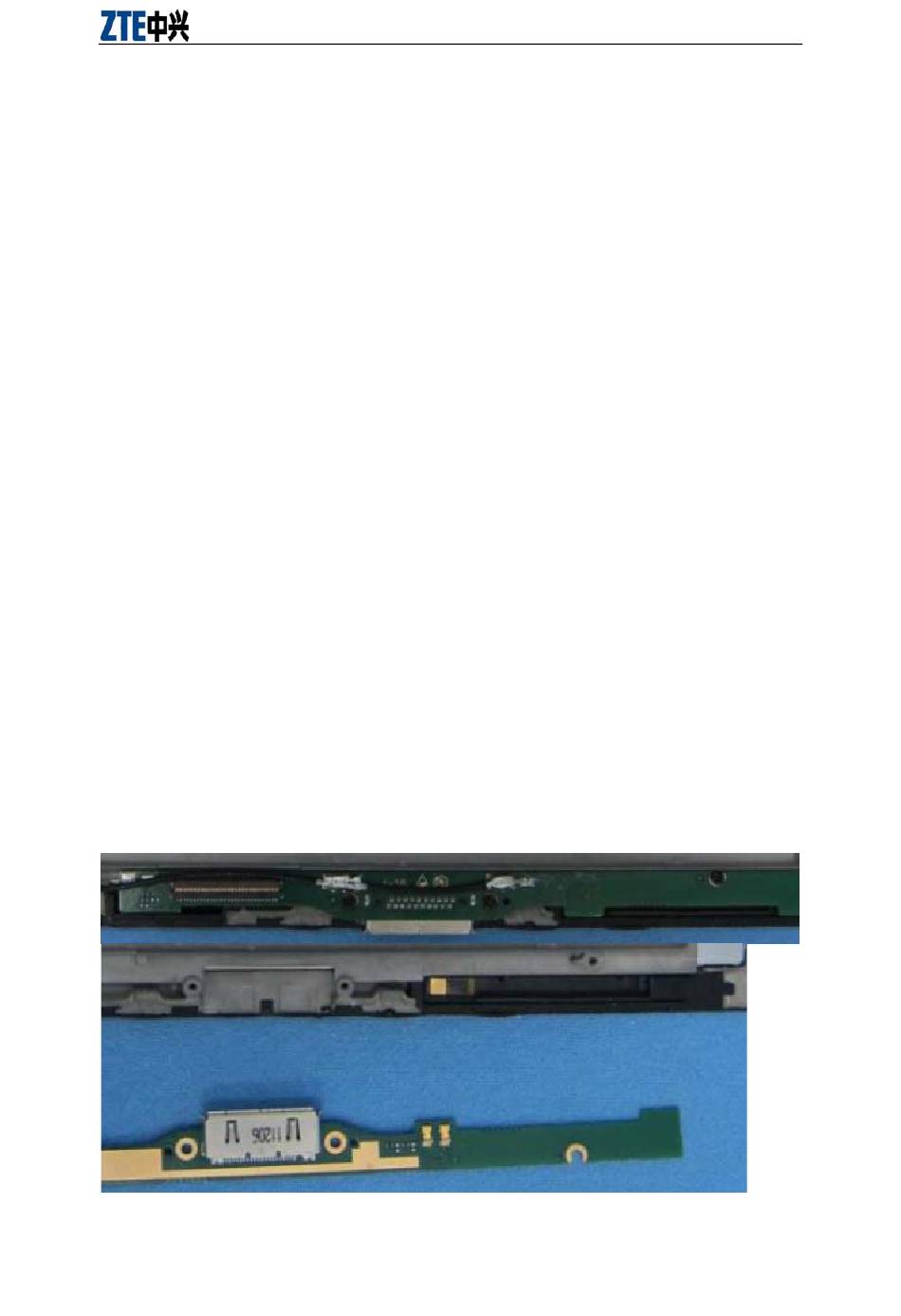

WIFI antenna change:
Before:
Antenna connects to RF module through RF cable which fix on pcb
by welding.
ZTE CORPORATION
ZTE Corporation
[
ZTE Corporation
[
ZTE Corporation
]
]
] declares

Advertisement

loading
Need help?

Need help?

Do you have a question about the V55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zte V55

  • Page 1 Product Change Description ZTE Corporation As the applicant of the below model, [ ] declares that the product, [Model Name: V55, FCC ID: Q78-V55] ZTE Corporation is the variant of the initial certified product, [Model Name: V55, FCC ID: Q78-V55] ZTE Corporation...
  • Page 2 After: Antenna connects to RF module through RF cable which soldered on antenna. The centre core of RF cable is soldered on antenna and the metallic shield is soldered on metal stamping which connects to the ground. Reason for changes:Get more wider bandwidth,improve antenna performance.
  • Page 3 Reason for changes:frist,make the main antenna fixing to the cover more steady; second, improve performance of the main antenna. The antenna gain is same as original. Mechanical changes: Front cover change: 1)Before:...
  • Page 4 After: Reason for changes:Fix RF cable to avoid the cable to be pressed 2)Before:...
  • Page 5 After: Reasons for changes:keep away from the LCD fpc 3)Before:...
  • Page 6 After: Reason for changes: enhance the front-frame Back cover change: Before:...
  • Page 7 After: Reason for changes:Increase and modify the glue to stick decorative- piece firmly Side-key changes:...
  • Page 8 Before: After:...
  • Page 9 Reason for changes:It’s to improve the handle of side-key that the TPU and PC are heightened Front camera changes: Before: After:...
  • Page 10 Reason for changes: Add a shield cover over the front camera to cover the gaps,avoid the dust enter. Battery changes: Before: After: Reason for changes:make battery more reliable. APPROVED BY: Project Manager: ZhaoYang Date:2011-12-30 ZTE Corporation Company: Address: B109, #889, Bibo Rd, Zhangjiang Hi-Tech Park, Shanghai,China...
  • Page 11 Tel:+86-21-68896840 Fax: +86-21-68896835...
