Summary of Contents for Agio 94855

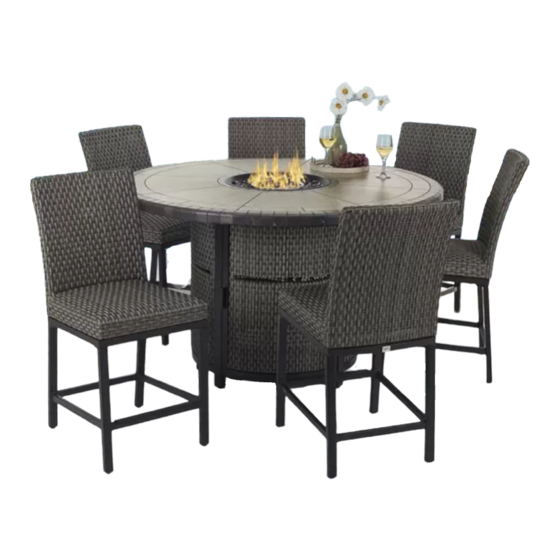

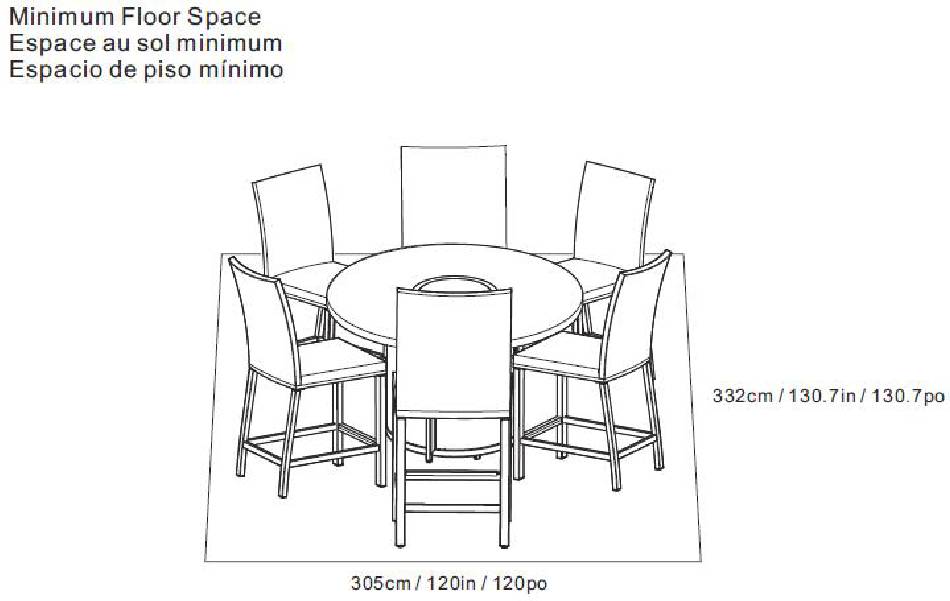

- Page 4 7 PIECE WOVEN HIGH DINING FIRE SET ITM. / ART. 94855 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY AGA Model AT17YL4 ARW11100 AS 5263.0-2017 + TGB008 Firepit size: Length 152.4CM, Width152.4CM, Height 91.5CM Installer: Leave these instructions with consumer. WARNING: It is UNSAFE to use this...
-
Page 5: Table Of Contents
Specifications ..................4 Parts Identification List ................5 Installation ..................6-7 Batteries ....................8 Maintenance ..................8 Lighting Instructions................9 Lazy Susan/Burner Cover Assembly.............9 Troubleshooting Guide ................10 For additional online video support on troubleshooting and set up, please feel free to visit our website at: www.agio-usa.com/support/firepits... -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, reference to the requirements of AS/NZS5601 and the Local authority-gas or electricity, etc. The appliance and appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa). -
Page 7: Important Information About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS 9 kgs / 20 A LP-gas cylinder for use with this appliance must have a capacity of The cylinder supply system must be arranged for vapor withdrawal. The cylinder used must include a collar to protect the cylinder valve. This appliance shall be used only outdoors in a well-ventilated space and shall ... -
Page 8: Parts Identification List
PARTS IDENTIFICATION LIST DESCRIPTION PART# PART CONTROL KNOB FP2329 GAS VALVE FP2330 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 LP REGULATOR HOSE FP2799 LP TANK RETAINING KNOB FP0585 ADJUSTABLE FOOT CAPS FC0553 PROPANE ORIFICE FP2103 “AA” BATTERY HW0905 FIREPAN/BURNER FP3256... -
Page 9: Installation
INSTALLATION 1. Carefully unpack all items from the box. Place the base in the final position. There must be a minimum of 609mm of clearance from the side of the table top to any combustible walls. 2. Place the firepit tabletop onto the firepit base. Secure the tabletop to the firepit base by using the 1/4 x 20 mm bolts and washers that are provided. - Page 10 4. Pour ALL the provided media (fire ice or lava rock) into the burner pan. Burner MUST be completely covered to ensure the appliance functions properly and safely. Remove any lava rocks or fire ice on top of the ignition well. See figure 4. Figure 4 5.
-
Page 11: Batteries
BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one Duracell® AA size battery (1.5V). The negative (-) end goes in first. -
Page 12: Lighting Instructions
LIGHTING INSTRUCTIONS Warning: If these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. IGNITER BUTTON Figure 10 CONTROL KNOB 1. Read instructions before lighting. 2. Push and turn the knob to ON. 3. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to “ON” and push No Propane Gas at Burner control knob in. Make sure tank has propane gas. Check that AA battery is installed with Burner won’t light negative (-) end first and has a charge. - Page 14 Please visit http://www.agio-usa.com/service-center/costco-international/ or contact email address at customerservice@agio-usa.com FOR ADDITIONAL SUPPORT ON CARE AND MAINTENANCE OF YOUR AGIO OUTDOOR FURNITURE PLEASE VISIT OUR WEBSITE AUSTRALIA: Our goods come with guarantees that cannot be excluded under the AT: www.agio-usa.com/service-center/maintenance/ Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
- Page 15 Before you center/maintenance/ or call our Customer Service Center in the US and Canada at 1-888- reseal your tabletop or to obtain our factory sealer, please visit our website at www.agio- 383-1932.
- Page 16 RÉSOUDRE DES PROBLÈMES OU POUR L’ENTRETIEN DU MATÉRIEL DE AUSTRALIE : Nos articles sont offerts avec des garanties qui ne peuvent connaître PATIO AGIO, SE RENDRE SUR NOTRE SITE WEB : d'exclusions au regard de la loi australienne sur la protection des consommateurs.
- Page 17 Web www.agio-usa.com/claycare ou www.agio-usa.com/claycare ou www.agio-usa.com/porcelaincare ou téléphoner à notre www.agio-usa.com/porcelaincare ou contacter le Centre de service à la clientèle aux service à la clientèle à les États-Unis et Canada au 1-888-383-1932. États-Unis et au Canada en composant le 1 888-383-1932.
- Page 18 PARA SOPORTE ADICIONAL EN VIDEO SOBRE EL ENSAMBLE, SOLUCIÓN DE PROBLEMAS, CUIDADO Y MANTENIMIENTO DEL MUEBLE AGIO PARA EXTERIORES, VISITE NUESTRA PÁGINA WEB EN: AUSTRALIA: Nuestros productos cuentan con garantías que no se pueden excluir www.agio-usa.com/service-center/maintenance/...
- Page 19 Antes de volver a sellar la superficie de la mesa o de obtener nuestro sellador de llame a nuestro Centro de Servicio al Cliente en los Estados Unidos y Canadá al teléfono 1-888- fábrica, por favor, visite nuestra página web en www.agio-usa.com/claycare o www.agio- 383-1932. (TELÉFONO Y SERVICIOS NO VÁLIDOS EN MÉXICO) usa.com/porcelaincare o llame a nuestro Centro de Servicio al Cliente en los E.U.A y Canadá...
- Page 20 PIEZAS JUEGO DE COMEDOR ALTO Y ARMAZÓN DE LA SILLA TEJIDO CON FOGÓN BASE FRAME BASE DU FAUTEUIL AK1589 PATA IZQUIERDA DE LA SILLA ITM. / ART. 94855 ( 0 MM) SCREW HW0036 (20 MM) VIS (20 MM) TORNILLO IMPORTANT, RETAIN FOR FUTURE...
- Page 23 Distributed by: Costco Wholesale Canada Ltd.* Importado por: Costco Wholesale Australia Pty Ltd Costco Wholesale Corporation 415 W. Hunt Club Road Importadora Primex S.A. de C.V. 17-21 Parramatta Road P.O. Box 34535 Ottawa, Ontario Blvd. Magnocentro No. 4 Lidcombe NSW 2141 Seattle, WA 98124-1535 K2E 1C5, Canada San Fernando La Herradura...
