Innovv C5 User Manual

Please follow instructions below to download the INNOVV C5 mobile WiFi app for both Android & iOS.
Please follow instruction below to format MicroSD card to be FAT32 before recording begins.
Please do not attempt to repair, modify, or alter this product and/or it's accessories.
Format MicroSD card to be FAT32
Follow one of below methods to format MicroSD card to be FAT32
Formatting by App- App => Setting =>Formatting => Yes ( Red power button quick flashes)
Formatting by buttons- 1. Press red power button once to stop flashing (Solid red), 2. Press WiFi button (Flashing) for 8 seconds. Red button power off and power on again (Solid red).
Formatting on PC- if SD card is more than 32GB, download SD card formatter from https://www.sdcard.org/downloads/formatter_4/
App download and Operation
1
Downloading the App
a) Search and download INNOVV C5 on the Google Play Store for Android or the App
Store for Apple devices. Compatible with iOS 8.3 or Android 5.1 above.
b) Scan QR code below to download INNOVV C5 App right to your device.
C) Storage must be allowed from App permissions for downloading videos/photos from
camera to your device.
For Android Device
3
Recording
Click to enter into recording section.
Red dot is flashing if camera system is recording, Click
to adjust brightness. To view full screen video
back button
Click To review recordings and photos.
Recordings and photos can be toggled to play, review, download or delete.
D
Key Indicator and Function
Trun ignition on, after 10 seconds power on delay, power button flashes red,
recording starts.
Power Button
Power button is solid red and record stop
WiFi button flashes green after recording started. And WiFi is stand-by for connection.
WiFi Button
A successful and continuous WiFi connection will be indicated by a solid green ligh.
Press WiFi button to drop the connection, WiFi flashes green again.
USB Port
Works as factory service port only, not for powering
Reset Key Hold down reset key to trigger a device reboot in case of error.
Operation and LED Indicator
Operation Power Button (Red Color)
Live recording Flashes red (1 times / second)
Recording stop Solid Red
Photograph Quick flashes red (3 times / second)
Flashes red or solid red
WiFi Connection stand-by
WiFi Connected
Flashes red or solid red
WiFi Terminated Flashes red or solid red
Flashes red quickly (3 times / second)
No Micro SD Card
Solid Red => Off => Solid Red
SD Card Formating
Flashes red (1 times / second) =>
Firmware Upgrading
(1 times / second)=> Red Off
For Apple Device
INOVV C5 App Logo
to stop recording, and Click
To exit full screen video.
WiFi Button (Green Color)
Flashes green or solid green
Flashes green or solid green
Flashes green or solid green
Flashes green (1 times / second)
Solid green
Flashes green flash slowly
Flashes green or solid green
Flashes green or solid green
Flashes green or solid green
Select INNOVV_C5_*** from WiFi networks to connect
Settings => Wireless & networks => INNOVV C5
Default password is 12345678
to start recording.
C
E
Trouble Shooting
Please refer to our troubleshooting
instructions below for any problems or
errors that may arise. Please also contact
your INNOVV dealer for additional
information and guides.
Fault Button Indicator
WiFi connected, can not WiFi button solid green
access App or App is Power button flashes
processing only red or slid red
SD card in DVR,
WiFi button flashes green
no recording after
Power button solid red
power supplied.
SD card in DVR,
WiFi button off
no recording after
Power button off
power supplied.
Can not download
videos/photos from
camera to device.
Live recording disapear
after device on screen
lock mode.

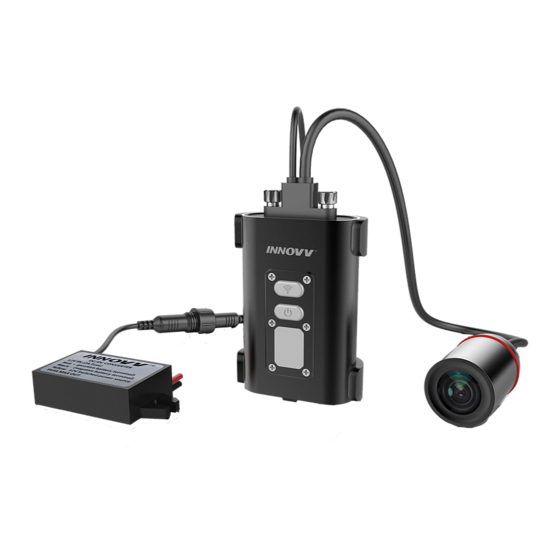

INNOVV C5
WiFi Full HD Remote Lens
Motorcycle Camera System
User Manual
2
App Connection
APP Screen Shots
3
1x DVR,
Package included
1 x Lens with video cable,
1 x DC 12v to 5v converter,
1 x Bracket pack for lens,
1 x Bracket pack for DVR,
1 x SD Card Reader,
1 x User Manu,
Memory Card not included
Trouble Shooting
Causes
1. WiFi has been disconnected
Turn WiFi network On and OFF, then reconnect.
2. The distance between Mobile device &
Move Mobile device close to Camera system and
Camera system is too far, or the WiFi singal reconnect WiFi
was blocked
3. The mobile device is not compatible, WiFi
Upgrade or change the mobile devices
connection is weak
1. SD card was unreadable Follow up the instruction to format SD card
2. SD card was broken or low speed Change SD card to be high speed (Class 10 or Above)
3. Loop Video was Off, SD card was fulfilled Change SD card or Format SD card
4. Unstable connection between lens cable
Disconnect Type c connector and re-connect.
and DVR
5. Video calbe was bended or pinch point,
Check video cable
even broken
6. Wrong settings or System broken Reset camera system, or Re-install firmware
1. Too low power supply from the power
Check power supply.
source
2. Wires from 12v to 5v converter made
Correct wire connection.
wrong connection to the power source
3. In line fuse from 12v to 5v converter
Replace the inline fuse.
was blew.
4. DVR is overheat DVR cool down, press reset button.
Storage must be allowed from App permissions for
INNOVV C5 app is not allowed to store downloading videos/photos from camera to your device.
Settings => App Permissions => INNOVV C5 => Storage
data to your device.
Settings => App => INNOVV C5 => Storage
Screen locked and living recording can not
Display on the lock screen
displayon the lock screen
Settings => App => INNOVV C5 => Notifications
Operation
