- Page 1 H88.0.1X.DK2RS-1.0 Operating Manual RS 1111-UT Stock number: 205-0961 RS 1114-UT Stock number: 205-0965 rspro.com...
-
Page 2: Table Of Contents
page 2 of 22 Operating Manual RS 1111, RS 1114 Table of contents About this documentation ............4 Purpose of the document ..............4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... - Page 3 Operating Manual RS 1111, RS 1114 page 3 of 22 6.2.2 Changing battery ................15 Error and system messages ..........17 Technical data ............... 18 RS 1111 ..................18 RS 1114 ..................20 Service ................... 22 Manufacturer ................22...
-
Page 4: About This Documentation
page 4 of 22 Operating Manual RS 1111, RS 1114 About this documentation Purpose of the document – This document is intended as a quick reference option. Legal notices This document is entrusted to the recipient for personal use only. Any impermissible transfer, duplication, translation into other languages or excerpts from this operating manual are prohibited. -
Page 5: Safety
Operating Manual RS 1111, RS 1114 page 5 of 22 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
page 6 of 22 Operating Manual RS 1111, RS 1114 Safety instructions NOTE This product does not belong in children's hands! Intended use The device measures the absolute pressure in the air, clean water or in non- corrosive/non-ionising gases. A direct measurement of the environmental pressure can take place or the measurement pressure is taken with a suitable hose connected to the port. -

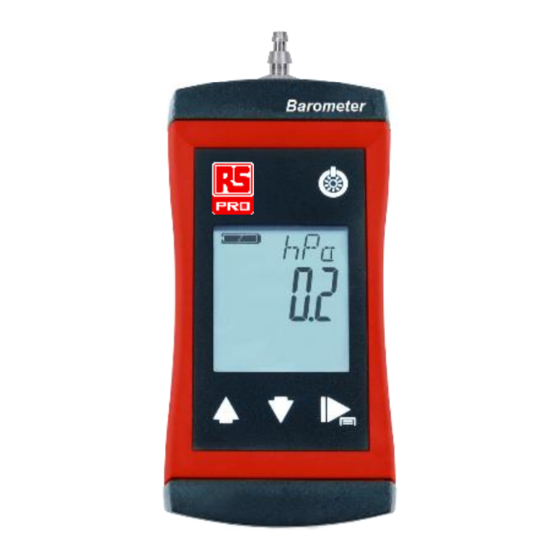

Page 7: The Product At A Glance
Operating Manual RS 1111, RS 1114 page 7 of 22 The product at a glance The RS 1100 barometer series Top view LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text Main display Measurement of the current pressure or value for... -
Page 8: Operating Elements
page 8 of 22 Operating Manual RS 1111, RS 1114 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter... -
Page 9: Connections
Operating Manual RS 1111, RS 1114 page 9 of 22 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Start menu configuration, (ONF appears in the Long press, 2s display Close menu, changes are saved Long press, 4s Depending on the selected special function: Activa- tion of the Tare function NVLL or rapid measurement... -
Page 10: Operation
page 10 of 22 Operating Manual RS 1111, RS 1114 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Display unit UN,T mBaR (only at RS 1114 ) - Page 11 Operating Manual RS 1111, RS 1114 page 11 of 22 Nautical norm correction SEA.L Inactive, display measured air pressure directly Active, display air pressure compensated to sea level -500 .. 9000 ALT, Height above sea level in m for correction Shut-off time POFF No automatic shut-off...
-
Page 12: Open The Adjustment Menu
page 12 of 22 Operating Manual RS 1111, RS 1114 Open the adjustment menu The product is switched off Press and hold the Down button. Press the On/Off button to switch on the product. Release the On/Off button after 1 second and then the Down button in order to call up the adjustment menu. -
Page 13: Measurement Basics
Operating Manual RS 1111, RS 1114 page 13 of 22 Measurement Basics CAUTION Air pressure at port variant UT! With higher pressures greater than 1 bar, the hoses must be secured to prevent unintended loosening. Suitable hose clamps are used for this purpose. –... -
Page 14: Special Functions
page 14 of 22 Operating Manual RS 1111, RS 1114 Special functions With the special functions that can be selected via the Configuration menu, the device can be optimised for special measuring tasks. After it is switched on, the device starts up in standard measuring mode, the relevant special function is started by pressing and holding the Function key for 4 s. -
Page 15: Operation And Maintenance
Operating Manual RS 1111, RS 1114 page 15 of 22 Operation and maintenance Operating and maintenance notices NOTE Pressure connections must be protected from soiling. Battery 6.2.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. - Page 16 page 16 of 22 Operating Manual RS 1111, RS 1114 NOTE This symbol indicates processes, which can have a direct influence on operation or can trigger an unforeseen reaction in case of non-observance. NOTE Read the following handling instructions before replacing batteries and follow them step by step.
-
Page 17: Error And System Messages
Operating Manual RS 1111, RS 1114 page 17 of 22 Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data collection possible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear System error Error in the product... -
Page 18: Technical Data
page 18 of 22 Operating Manual RS 1111, RS 1114 Technical data RS 1111 Measuring range 0.0 .. 1700.0 hPa (mbar) abs. 0.00 .. 25.00 PSI abs. 0.0 .. 1300 mmHg (Torr) abs. Accuracy < ± 2 hPa typical (at T: 5 .. 30 °C) ±... - Page 19 Operating Manual RS 1111, RS 1114 page 19 of 22 Operating conditions -20 to 50 °C; 0 to 95 % r.h. (short-term condensa- tion possible) Storage temperature -20 to 70 °C Current 2*AA battery (included in the scope of delivery) supply Current require- approx.
- Page 20 page 20 of 22 Operating Manual RS 1111, RS 1114 RS 1114 Measuring range 0 .. 14000 hPa (mbar) abs. 0.00 .. 199.99 PSI abs. 0 .. 10500 mmHg (Torr) abs. Accuracy < ± 0.1 % MW respectively ± 0.02 % FSS typical (at T: 5 ..
- Page 21 Operating Manual RS 1111, RS 1114 page 21 of 22 tion possible) Storage temperature -20 to 70 °C Current 2*AA battery (included in the scope of delivery) supply Current require- approx. 0.6 mA (slow measurement SLO) ment/ Operating time approx. 5000 h Battery life Battery indicator 4-stage battery status indicator,...
-
Page 22: Service
page 22 of 22 Operating Manual RS 1111, RS 1114 Service Manufacturer If you have any questions, please do not hesitate to contact us: RS Components Limited Contact Birchington Road Corby Northamptonshire NN17 9RS WEE/GF0002ZR rspro.com...
