Sft Sub-Menu - K-TRON KSU-II/KCM Programming Instructions Manual

Parameter
SFT REQUIRED
Number of SFTs
Required
REPOLL
AUTO READDRESS
SFTs
SFT Configuration
Docu-No.: 0590020601-EN Rev. 1.6.0
1.6.2

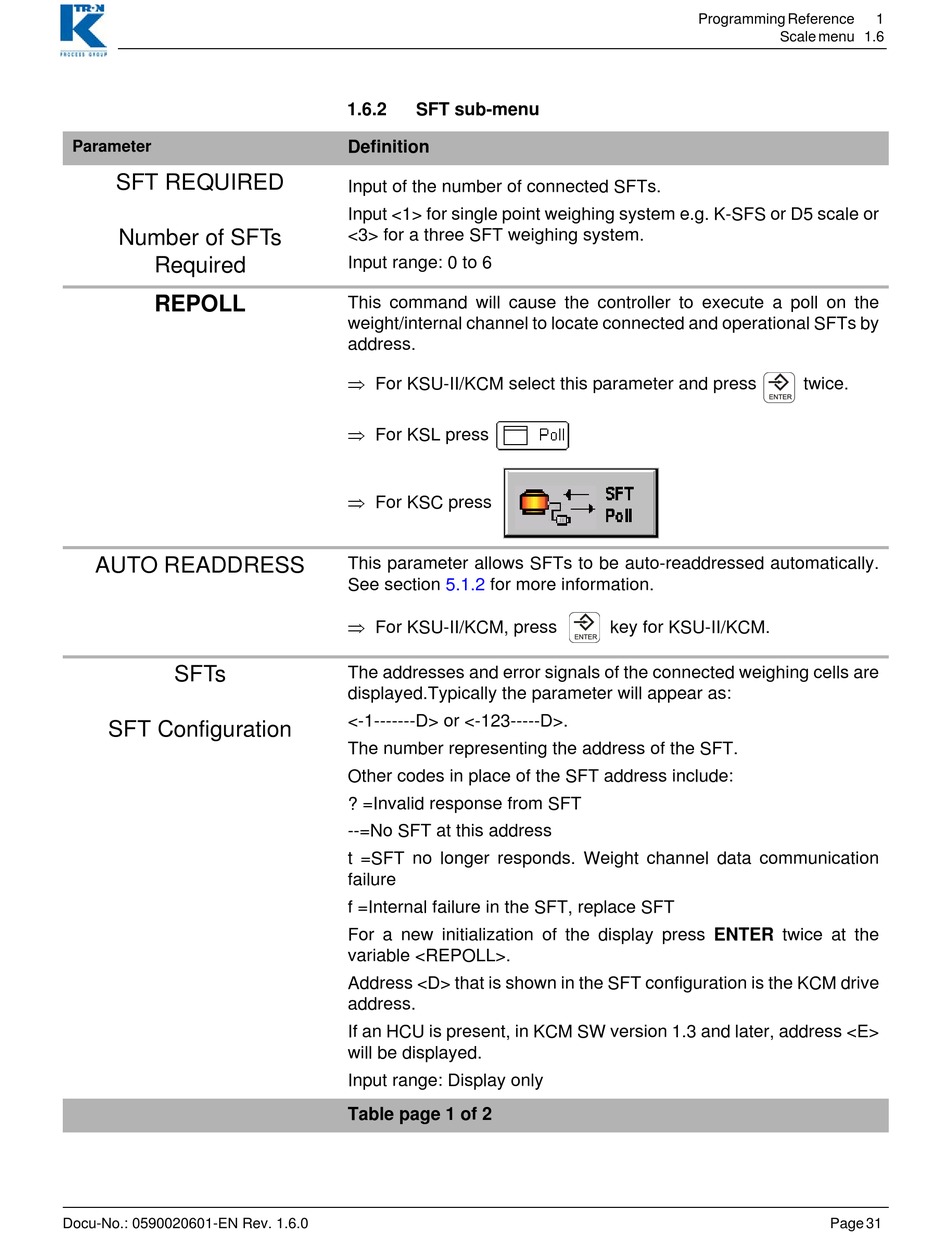

SFT sub-menu

Definition
Input of the number of connected SFTs.
Input <1> for single point weighing system e.g. K-SFS or D5 scale or
<3> for a three SFT weighing system.
Input range: 0 to 6
This command will cause the controller to execute a poll on the
weight/internal channel to locate connected and operational SFTs by
address.
 For KSU-II/KCM select this parameter and press
 For KSL press
 For KSC press
This parameter allows SFTs to be auto-readdressed automatically.
See section 5.1.2 for more information.
 For KSU-II/KCM, press
The addresses and error signals of the connected weighing cells are
displayed.Typically the parameter will appear as:
<-1-------D> or <-123-----D>.
The number representing the address of the SFT.
Other codes in place of the SFT address include:
? =Invalid response from SFT
--=No SFT at this address
t =SFT no longer responds. Weight channel data communication
failure
f =Internal failure in the SFT, replace SFT
For a new initialization of the display press ENTER twice at the
variable <REPOLL>.
Address <D> that is shown in the SFT configuration is the KCM drive
address.
If an HCU is present, in KCM SW version 1.3 and later, address <E>
will be displayed.
Input range: Display only
Table page 1 of 2
Programming Reference
Scale menu 1.6
key for KSU-II/KCM.
1
twice.
Page 31
