Summary of Contents for SereneLife SLGZ48

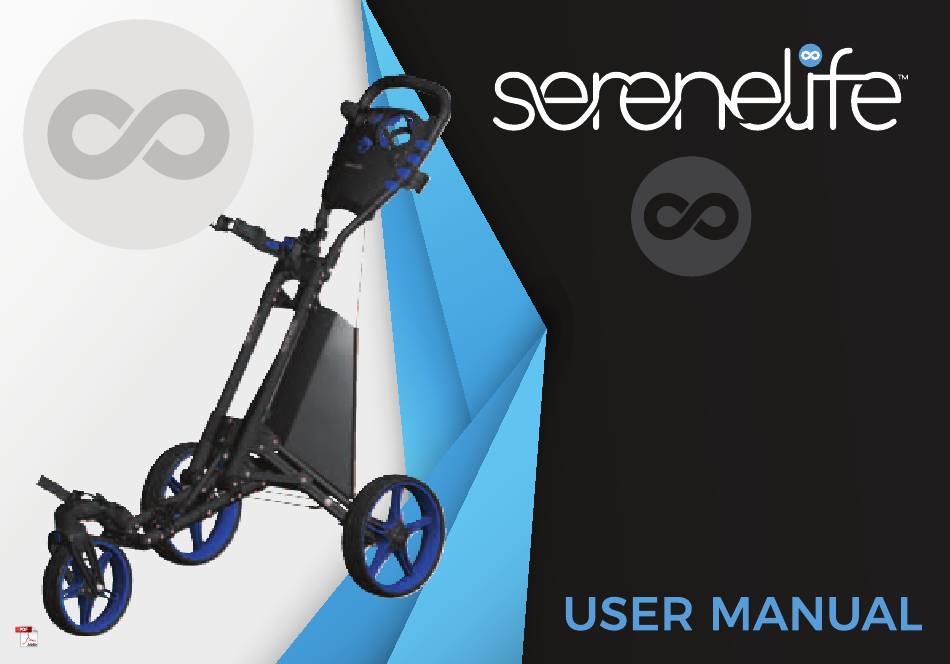

- Page 1 SLGZ48 Foldable 3-Wheel Golf Push Cart New Deluxe Scorecard Holder, Upper & Lower Brackets with Elastic Strap Includes Cup Holder, Scorecard Holder, and Patented Bag Holder...
-
Page 2: Maintenance
WARNING: • For your own safety, please read and understand these warnings and keep this user guide for future reference. • Always make sure the trolley is fully extended and locked before use. Always make sure the trolley is folded and locked properly before lifting or transporting. -
Page 3: Parts List
PARTS LIST PVC handle Bottom bracket bag Push button system Umbrella holder base Scorecard holder Strap Z1 Hook Handle tube Umbrella holder storage rack Upper bag holder bracket Joint Connecting rods Main upper frame tube Leg bracket 2 holes leg frame 4 holes leg frame Anti-splay wire Weight stabilizer... -
Page 4: Assembly Steps
ASSEMBLY STEPS Fig.4 Fig.1 Fig.3 Button Fig.2 Pull the handle up Press the button and insert Insert the front wheel as in Completely assembled until you hear the the rear wheels as in Fig.2 Fig.3 trolley as Fig.4. cart 'Click' as in Fig.1 FOLDING STEP Press the red button Fig.6 shows the... -
Page 5: Using The Basket
SWIVEL FRONT WHEEL SYSTEM USE THE BRAKE The front wheel can 360 swivel when the handle brake pull down as Fig.7, and the handle brake is pull up, the front wheel will run straight line. Fig.8 Fig.9 Fig.7 Push on the brake pedal to stop the rear wheel and pull off... - Page 6 Point 2, Fixed the second velcro Point 3 & 4, Fixed velcro strap Point 7 & 8, Click the elastic strap strap on the lower connecting rod, on the 2 holes leg frame, under the scorecard holder and and only fix the velcro, so it can then pull the elastic strap check the elastic strap if the same.
- Page 7 FRONT WHEEL ADJUSTABLE SYSTEM Fig.12 Fig.11 Left Right Allen wrench/key Fig.13 Fig.14 WHEN FACING THE CART: If the cart veers to RIGHT: Use the Allen wrench (as shown in Fig. 12) to lose the 2 screws (A) on the backside of the front wheel frame as shown in Fig.
- Page 8 FEATURES: • 3-Wheel AI Frame Trolley • New Deluxe Scorecard Holder • Includes Foot Brake for Rear Wheel • With Handle Brake to Control 360° Swivel for Front Wheel • Upper and Lower Bracket with Elastic Strap • TPE Handle Grip •...
-
Page 9: What's In The Box
WHAT'S IN THE BOX: • (1) 3-Wheel Golf Push Cart TECHNICAL SPECS: • Construction Material: Aluminum Frame • Max. Load Capacity: 33 lbs. • Front Wheel Size: 9.5'' -inches • Rear Wheels Size: 11.5'' -inches • Folded Product Dimension (L x W x H): 19.1'' x 14.6'' x 22.8'' -inches •...
