PSR Rotolift + Autolid Controller setup

v1 Bulid 2020-07

Your new Rotolift+ Autolid Control Box has many new features and posisbilities , comparing to other Sabaj Lifts.

Please read this manual before you start programming the lift to your preferences.

Default settings : Every delivered lift is set by default to max left and right rotation , and max up and down

movement. The RF remote attached is also already paired with the Control box. To reset all the settings or

change the remote – please read the reset section in this document.

Setup Mode and Memory mode : Please note that the lift has 2 levels of setup. The first is acquired by

pressing&holding the setup button , and is signalized by a RED SETUP LED light. To enter the motion setup –

press RC-SET button. You will hear short beeping sounds when in Motion setup mode – this is normal , and

acquiring the certain motion limit ( I.E. max left rotation ) will result as a proper digital display symbol . The full

table of symbols is also attached in this manual.

Troubleshooting : The table of symbols on the digital display should also be used as a troubleshooting guide.

Always check , if the green POWER led light is on – this signals , that the control box is powered . When you put

the plug to the socket, you will hear the beeper sound , and the green led will be turned on. If the LED is not on

,the problem might be with the control box fuse breakdown , or there is no power in the socket.

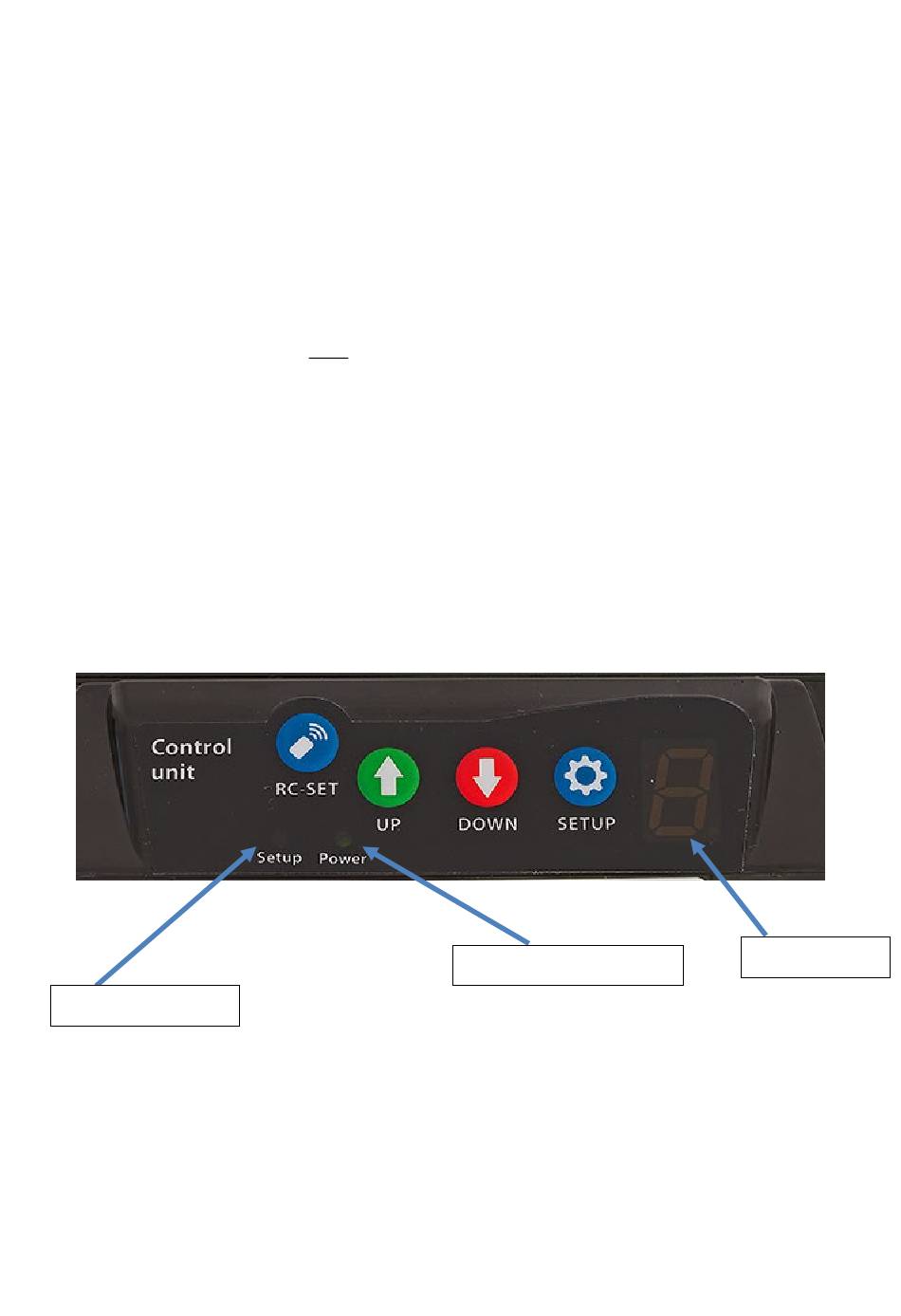

Digital Display

Power led light ( green)

SETUP led light ( red)

RF Remote : Every control box with RF function is delivered with a pre-progammed RF Remote . Only Sabaj RF

remotes can operate with Sabaj Control boxes. The control box can store up to 8 different remotes.

Table of Contents

Need help?

Do you have a question about the PSR Rotolift + Autolid Controller and is the answer not in the manual?

Questions and answers

Summary of Contents for Maluk PSR Rotolift + Autolid Controller

Page 1 PSR Rotolift + Autolid Controller setup v1 Bulid 2020-07 Your new Rotolift+ Autolid Control Box has many new features and posisbilities , comparing to other Sabaj Lifts. Please read this manual before you start programming the lift to your preferences.
Page 2 To program a new remote – press the RC-SET button in standard mode - you will see this symbol on the digital display It means, that the control box is waiting for a Remote controller signal. Press any button on the remote for about 1 second.
Page 3 IV. Aiming your remote towards the IR Receiver , press 5 buttons you want to use for controlling the lift. Every properly received button will be confirmed by short pauses . Number of pauses correspond to the button set : 1-UP ( 1 pause) 2- DOWN (2 pauses) 3-Left ( 3 pauses) 4-Right ( 4 pauses) 5- RC SET (Memory button) ( 5 pauses) After assigning all the 5 buttons , the beeper will go silent , but the red LED button wil stay on .
Page 4 III. Now press the button corresponding to upward movement on your RF or IR remote. , confirming , that the UP VP has been set. This symbol will appear on the digital display To set DOWN VP ( setting this step is not recommended with Autolid) : I.Move the lift to your preffered DOWN position II.
Page 5 Troubleshooting and digital display Display Explanation Solution Assigning RF remote to Press any button on RF remote to assign , or control box wait 15 seconds to quit mode Remove obstacles from the lifts way. Safety system activated Eventually reduce the safety system sensivity Check all the connections and contacts from AUTOLID AUTOLID Limit switch cable to control box.
Page 6 No impulses from LIDs Motor start moving. Cables might be loose. Many reasons to this error – please contact Sabaj suport , providing fotos of the installation. Full motion reset ------- www.maluk.at maluk GmbH office@maluk.at Rosenhain 24 0043 4232 89 559 9125 Kühnsdorf...
