Air Techniques SCANX A Operator's Manual

Eraser
Hide thumbs
Table of Contents

Advertisement

Quick Links

A/T SCANX ERASER
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCANX A and is the answer not in the manual?

Questions and answers

Related Manuals for Air Techniques SCANX A

Summary of Contents for Air Techniques SCANX A

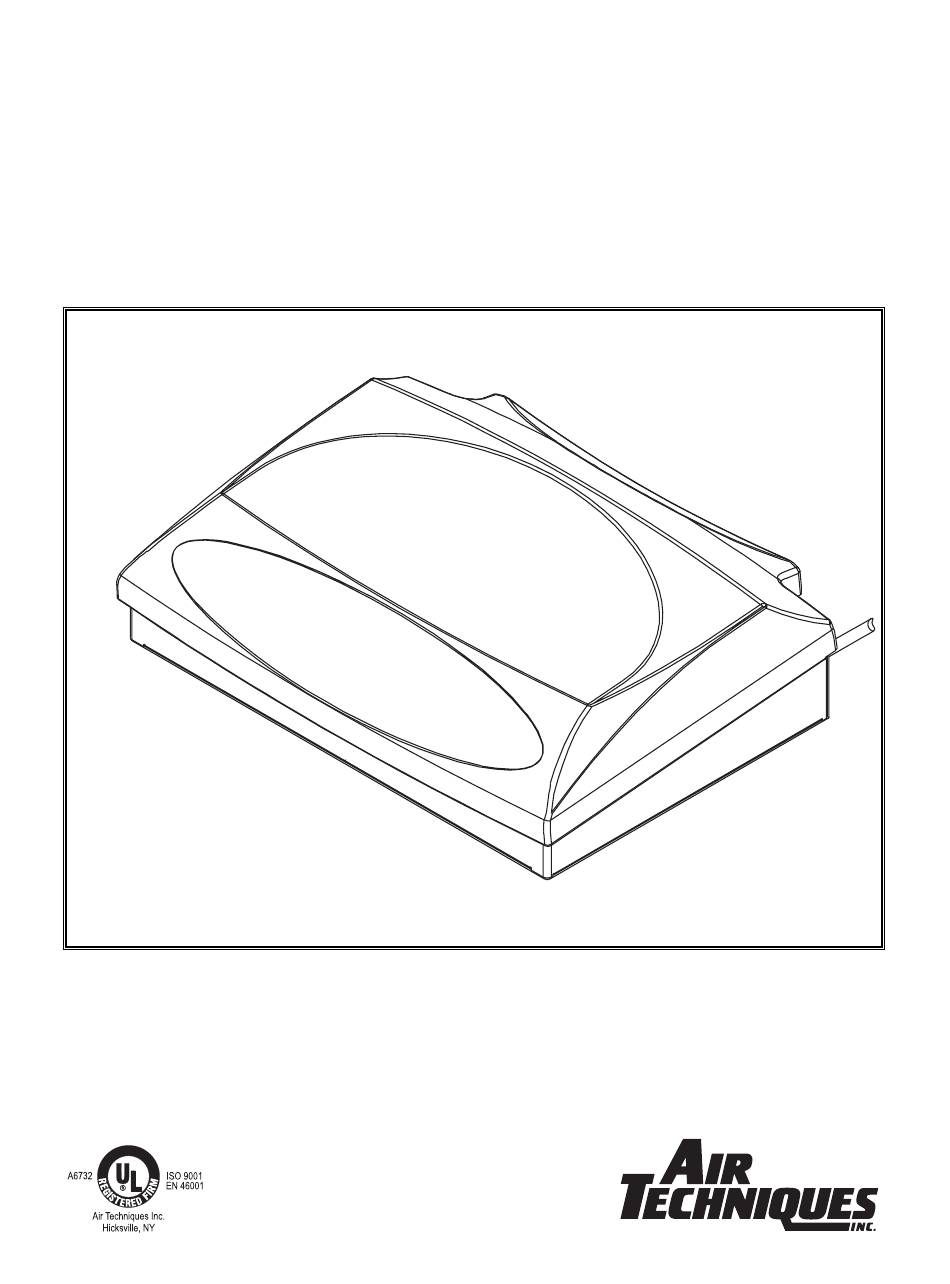

  • Page 1 A/T SCANX ERASER OPERATOR’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ............3 Warranty .

  • Page 3: Introduction

    Operator’s Manual. WARRANTY This Air Techniques equipment is warranteed to be free from defects in material and workmanship from the date of installation for a period of twelve months. Any item returned to our factory in Hicksville, New York, through an authorized dealer, will be repaired or replaced at our option at no charge provided that our inspection shall indicate it to have been defective.

  • Page 4: Specifications

    SPECIFICATIONS MODELS: 73800, 73800C, 73800D & 73800J Power Requirements: 108-265V AC, 50/60 Hz 0.75 A maximum Environmental Conditions: (Unit in Operation) Temperature: 50°F to 105°F Humidity: 5% to 95% Relative Humidity (Non-Condensing) Installation Category: Pollution Degree: Erasing Surface Size: Erasing area 8” x 12” Phosphor Storage Plate Capacity: All sizes, up to 21 Size 2 PSP’s.

  • Page 5: Dimensions

    DIMENSIONS 11-7/8” 15-1/2” TOP VIEW 5” FRONT VIEW SIDE VIEW FIG. 2 INSTALLATION may be located almost anywhere in the dental office. A/T SCANX ERASER Follow these guidelines for optimal performance. - Place on a stable, flat counter top large enough to hold the Eraser and to provide a working area. - Provide access to a standard grounded electric 115V AC outlet with supplied line cord.

  • Page 6: Operation

    OPERATION To operate A/T SCANX ERASER. 1. Open the lid. A/T SCANX ERASER 2. Place Phosphor Storage Plates (PSP’s) on tray with blue or white side of PSP’s A/T SCANX ERASER facing up as suggested in FIG. 3 - 8. 3.

  • Page 7: Phosphor Storage Plate Placement

    PHOSPHOR STORAGE PLATE (PSP) PLACEMENT Some Examples of PSP arrangements. FIG. 4: ARRANGEMENT FOR 21 SIZE 2 PSP’s FIG. 3: SUGGESTED PSP ORIENTATION FIG. 5: ONE 5” x 12” PAN PSP FIG. 6: ONE 5” x 12” PAN PSP & FOUR SIZE 2 PSP’s FIG.
  • Page 8 Air Techniques is a leading manufacturer of fine dental equipment from air and vacuum systems and x-ray film processors, to an impressive line of new products incorporating the most recent technological advances. These new products, vital components of the innovative dental practice,...

This manual is also suitable for:

Scanx t7380073800c73800d73800j
