BP16
Backplane for MAL Amplifiers
Measuring Amplifers and Sensors.
Get Connected.
Backplane for miniature amplifiers: Up to 16
measuring amplifiers, converters, or any other
function modules can be integrated in the
BP16. If installed close to the signal, it provides
for high interference resistance. Ideal for
remote signal conditioning of passive sensors.
Signal Conditioning in Miniature
Format.
In type of construction, the cost-effective MAL
modules are designed like a 24-pin DIL IC.
Measurement applications can therefore be
realized even in problematic locations. With
suitable measuring amplifiers, multiple wire
technique can be realized, too.
Optimally Supplied.
The BP16 is operated with 9-30V. The
integrated amplifiers are supplied by the
electrically isolated power supply. In addition,
5V (50mA) with galvanic isolation are provided
for sensor supply.

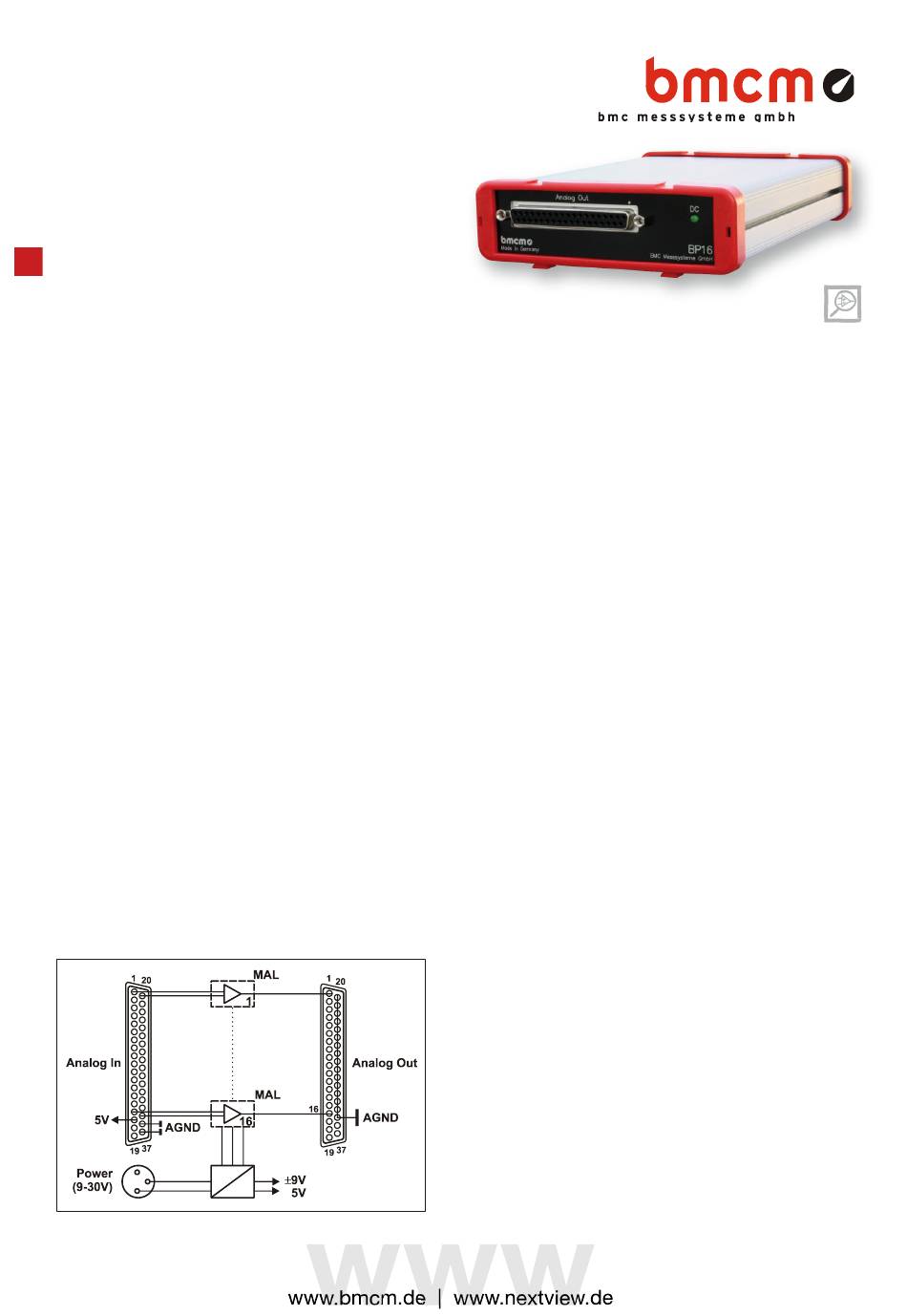

Functional diagram
Signal Connection.
D-Sub Standard.
Sensors or other voltage signals can
comfortably be connected at a 37-pin D-Sub
female.
Connection to the DAQ System.
The amplifier outputs are available at a 37-pin
D-Sub female connector. They are connected
to the input lines of a data acquisition system.
Combining the BP16 with a measuring card or
DAQ system from bmcm makes an extreme
compact measurement system.

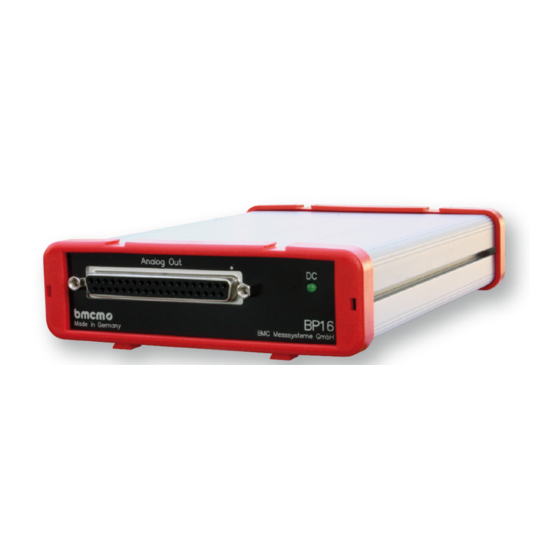

External Device.
The BP16 is accommodated in a stable
aluminum housing ideal for mobile use.
Notches in the housing frames allow for fixing
the BP16 to a DAQ system (e.g. USB-AD14f)
providing for a stable measuring unit.
The Smaller Options.
You Have the Choice.
For all needing less channels: The backplane
for miniature amplifiers is also available as a
2-channel version with carrier for DIN rail
mounting (BP2) or integrated in a waterproof
IP65 housing (BP2-BOX).
