Actual product may vary from product shown. Product is subject to change.

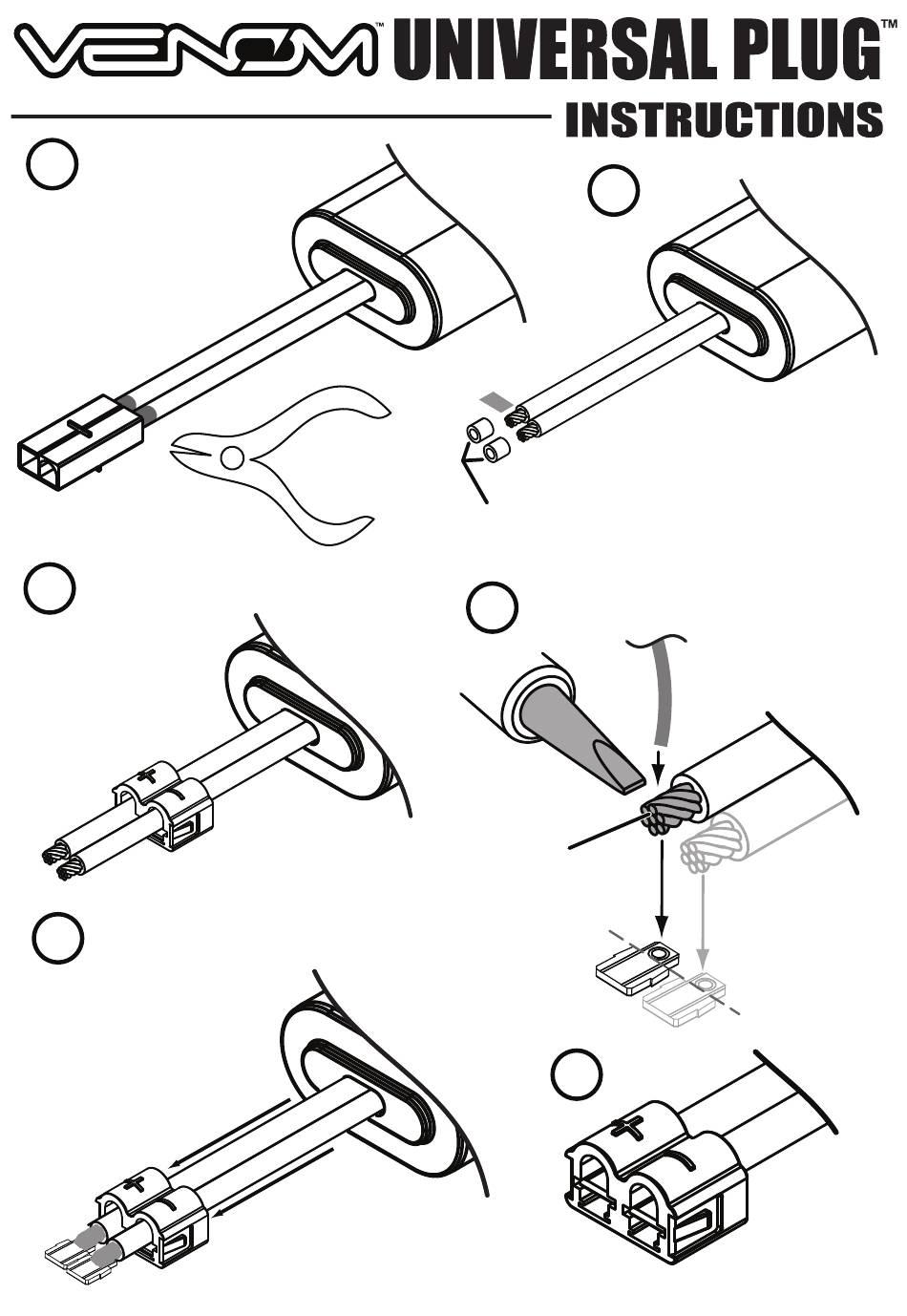

1
CUT EXISTING CONNECTOR
FROM BATTERY. NOTE: CUT ONE
WIRE AT A TIME TO PREVENT
SHORTING THE BATTERY.
2
1
3
PLACE PLUG ONTO
THE WIRES
NOTE: MAKE SURE
POLARITY IS
CORRECT.
5
PULL PLUG TOWARD THE
SOLDERED TERMINALS
UNTIL THE TERMINALS
HAVE SNAPPED INTO
THEIR PROVIDED
SLOTS.
© Copyright 2012 Venom Group International
NOTE: MAKE SURE TWO
ENDS DO NOT TOUCH.
YOU RISK SHORTING
OUT THE BATTERY.
2
(1/8in or 4mm)
REMOVE INSULATION
USING A SOLDERING IRON
4
SOLDER TERMINAL TO WIRE END.
SOLDER
APPLY
HEAT
HOLD WIRE DOWN
TO TERMINAL WITH
THE "O" SIDE UP.
6
ASSEMBLED PLUG
PATENT PENDING
REMOVE 1/8" (4mm) OF
INSULATION FROM END
OF WIRE WITH WIRE
STRIPPERS.
NOTE: TOUCH SOLDERING TO END
OF HEATED WIRE, NOT THE IRON.
DO NOT SOLDERING PAST
TERMINAL BARBS!
1645-2
