Summary of Contents for METRONOME TECHNOLOGIE CD One-Signature

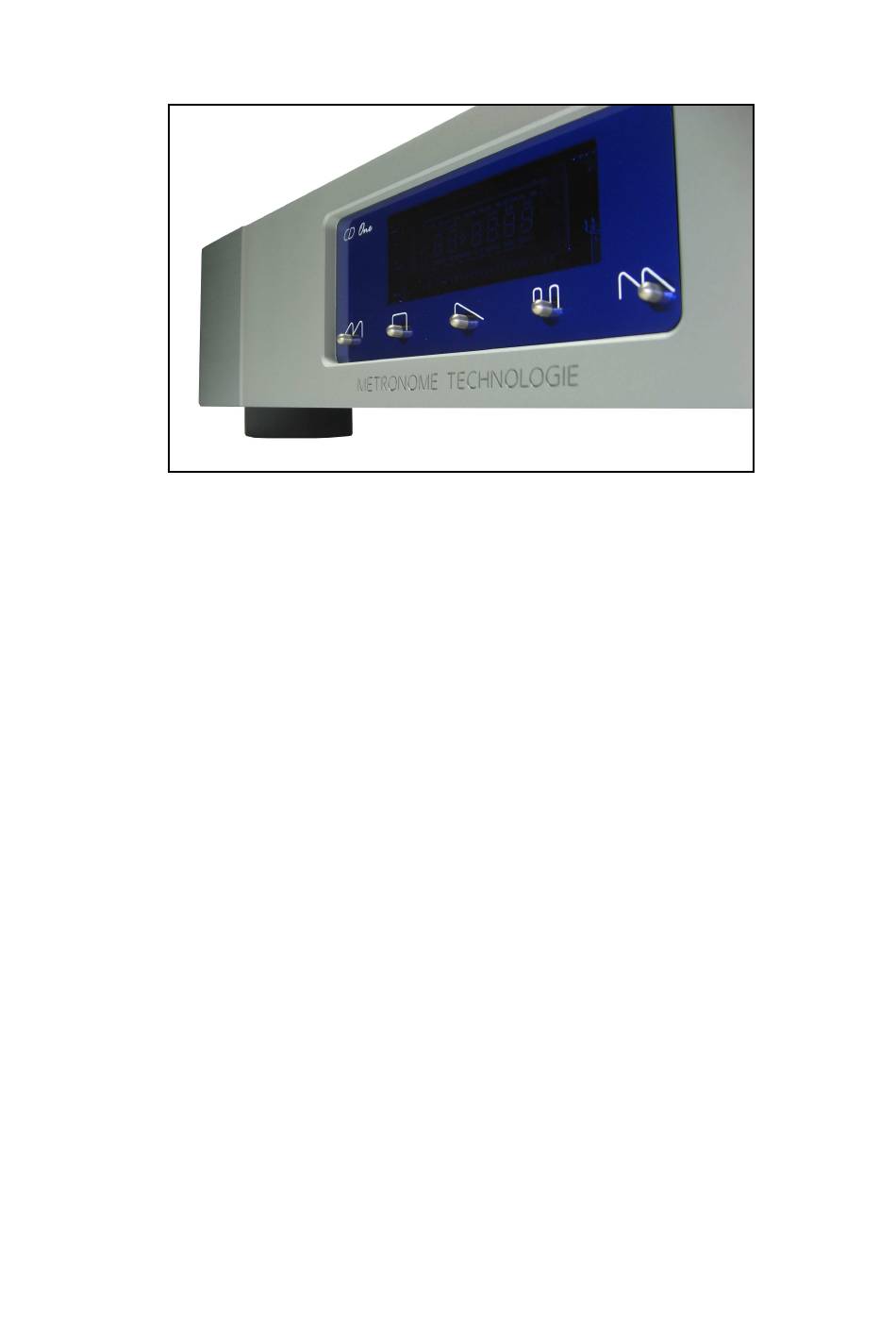

- Page 1 CD One Signature...
- Page 2 M E T R O N O M E M E T R O N O M E M E T R O N O M E M E T R O N O M E T E C H N O L O G I E T E C H N O L O G I E T E C H N O L O G I E T E C H N O L O G I E...
-
Page 3: Table Of Contents
Table of contents 1 - Important safety instructions 2 - Company profile 3 - Introduction 4 - Unpacking 5 - Utilization 6 – CD one Signature CD Integrated 6-1 Installation 6-2 Front view 6-3 Back view 6-4 Utilization 6-4-1 Power on 6-4-2 Listening 6-4-3 Display off 6-4-4 Digital and analog outputs... -
Page 4: Important Safety Instructions
1 - Important safety instructions ATTENTION - So as to ovoid any risk of fire or electrical shock, maintain this unit on a dry place. Do not expose under rain. - Before connecting and using this product, we recommend you to read attentively and fully the present manual. -
Page 5: Company Profile
Giner. METRONOME TECHNOLOGIE METRONOME TECHNOLOGIE METRONOME TECHNOLOGIE METRONOME TECHNOLOGIE has developed over the years a wide range of High End products. Our products are designed by a team around Dominique Giner: CD transport & integrated, Digital to Analog Converters, Integrated and Power Amplifiers, Pre-amplifiers and now Turntable Gaïa. -
Page 6: Introduction

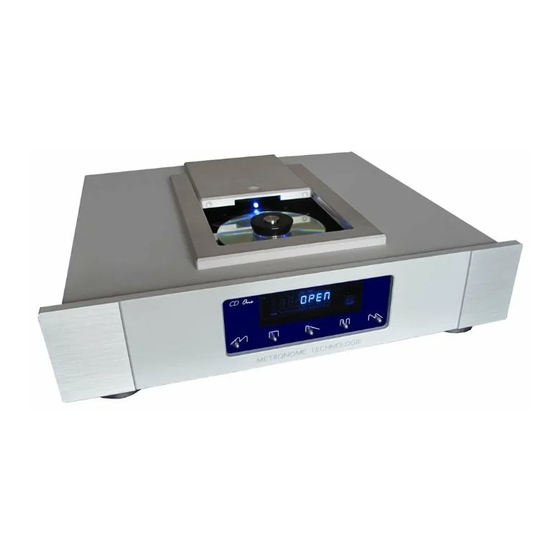

Congratulations on purchasing the METRONOME TECHNOLOGIE CD One Signature CD Integrated. If you desire to contact METRONOME TECHNOLOGIE to ask us any information on your purchase or for a technical detail please connect you to our web site: www.metronome-technologie.com The Top loaded CD Integrated is made around material selected for their ability to deliver the best sound. -
Page 7: Unpacking
4 - Unpacking: The CD One Signature CD Integrated has been packed in 1 specially designed box. - Unpack carefully the machine: attention, to lift the unit, it is recommended to have the help of a second person. - Please preserve carefully packages and protections, they will be able to be useful for the shipment of the unit in case of maintenance. -
Page 8: Utilization
A - Turn off the CD One Signature CD Integrated drive. B - Check fuses C - If there is no difference, please contact Metronome Technologie factory. The display on the front panel indicates the state of the unit: when the dispaly is alight, the power supply is operational. -
Page 9: Cd One Signature Cd Integrated
6 – CD One Signature CD Integrated: 6-1 Installation: Install the CD One Signature CD Integrated on the hi-fi unit or a stable and strong support. Do not install directly on a carpet or an inflammable material. Do not put any object on the top and take care to put the clamp on its support when you don't use the drive. -
Page 10: Back View
6-3 Back view: On the back of the CD One Signature CD Integrated: Power entry connector & fuse compartment: To plug the electrical network cable and change fuses if broken. Power switch ON/OFF: Push down to switch on the power supply and push up to switch off . -
Page 11: Utilization
6-4 Utilization: 6-4-1 Power on: Now you can switch on the CD One Signature. To do this, push switch [8] on lower position. If the CD One Signature’s drawer is open, the display indicates "OPEN". The CD One Signature CD Integrated can be switched on during a long period however for a prolonged absence, we advise you to switch it off, with the switch [8] on the rear panel of the machine. -
Page 12: Remote Control
7 - Remote Control: Remote control On the top of the CD One Signature’s Remote Control: Please unpack carefully the remote control. Please preserve carefully packages and protections, they will be able to be useful for the shipment of the unit in case of maintenance. For cleaning the remote control, please use a sweet and no abrasive cloth. - Page 13 ● Direct access to the disk tracks by pressing on [0] to [9] keys. ● PLAY TRACK function by pressing on the key: ● NEXT TRACK function by pressing on key: ● PREVIOUS TRACK function by pressing on key: ● PAUSE function by pressing on key: | | ●...
-
Page 14: Technical Specifications
8 - Technical Specifications: ● PICKUP MECHANISM: - CDM 12 PRO II V6.8 ● DIGITAL OUTPUT: 1 output - RCA S/PDIF 75 OHMS - Output sample Frequency: 44.1 KHz ● ANALOG OUTPUT: - Unbalanced: 2.5 V RMS @ 0dB - 600 Ohms - Connector RCA - Balanced: 2.5 V RMS @ 0 dB - 600 Ohms -Connector XLR - Total Harmonic Distortion: -95dB Max - Gain Error: 0.12dB Max... -
Page 15: Warranty
TECHNOLOGIE product for a 2 years period from the purchase date TECHNOLOGIE TECHNOLOGIE TECHNOLOGIE In the event of failure of your product, METRONOME TECHNOLOGIE METRONOME TECHNOLOGIE METRONOME TECHNOLOGIE will repair, METRONOME TECHNOLOGIE readjust and, should the occasion arise, replace the units providing that all the clauses contained in the warranty are met. - Page 16 Warning: Potential Shock Hazard TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. This product uses high voltage. There are no operator serviceable parts inside. Refer servicing to qualified personnel only. Observe all warnings and instructions marked on the product.
- Page 17 SAFETY INTRUCTIONS Before operating your METRONOME TECHNOLOGIE equipment, please read all instructions and precautions carefully and completely. 1. ALWAYS disconnect your entire system from the AC mains before connecting or disconnecting any cables, or when cleaning any component. 2. A three-conductor AC mains power cord which includes an earth ground connection must be used.
- Page 18 Certificate of conformity e hereby certify that your Metronome Technologie Metronome Technologie Metronome Technologie Metronome Technologie Model : CD One Signature CD Integrated Has been produced in our factory located in France. very possible quality control measure was taken to ensure that your have acquired the most perfect and reliable product.
