Summary of Contents for Neomatica ADM35
- Page 2 ADM35H (hereinafter referred to as sensor). The manual describes sensor operation, procedure of its installation and its integration with the monitoring system using the related tracker from the devices manufactured by Neomatica LLC.
-
Page 3: Table Of Contents
9 Scope of supply ............................17 10 Acceptance certificate ........................17 Annex A. Sensor usage with Teltonika FMB trackers ................18 Annex В. Instructions for setting up the sensor via «nRF Connect» application ......21 Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 4: Application

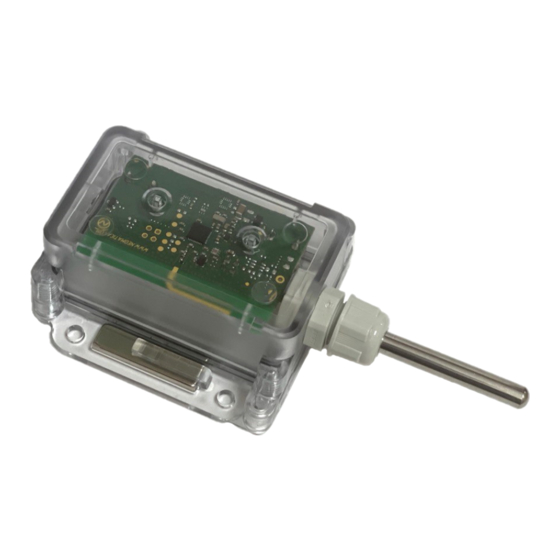

Figure. 1 - View of the sensor The ADM35H (figure 2) model contains a measuring element that measures relative humidity level, but the accuracy of temperature measurement is less than that of ADM35. Figure. 2 - View of the sensor... -
Page 5: Technical Features Of Adm35
• Dimensions, mm, not more than: 129 (73 without detector) x 68 x 32; • Mounting seat size, mm, not more than: 73 x 68; • Weight: nor more than 105 g Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 6: Technical Features Of Adm35H
• Dimensions, mm, not more than: 124 (73 without detector) x 68 x 32; • Mounting seat size, mm, not more than: 73 x 68; • Weight: not more than 105 g Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 7: Design And Operation Of The System
The signal level of -100 dBm is considered as critically low, at this level it is recommended to change the installation location. The signal level of -70 dBm is considered as normal for stable Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 8: Setting
It is recommended to activate this sensor only when it is necessary to use it, because its activation leads to an increase in energy consumption. When the Hall sensor is activated, an extraordinary exit from the sleep state and sending readings may happen. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 9: Adm Ble-Configurator
• view of the current sensor readings; • assessment of the signal level when passing through obstacles; • assessment of the battery status; • determination of the sensor address; • determination of the sensor firmware version. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 10: View Of The Readings In "Adm Ble-Configurator" Application
• Archive. • When the «Archive» option is active, readings are recorded at a set frequency. The readings of all active sensors are recorded in the archive with reference to time. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... - Page 11 Selecting data transfer mode via BLE or BLE Long Range Bluetooth Long Range technology allows increasing the distance from the sensor to the receiving device and to increase the reliability. The receiving device should Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021...
-
Page 12: Report Generation In "Adm Ble-Configurator" Application
• Select the time period for which you want to generate a report. • Send the report or open it in your smartphone. The report is saved as a table in csv format. File save path /Neomatica/ADM_BLE_Configurator/reports. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 13: Firmware Update Of The Sensor
GPRS or SMS. It is also possible to configure the sensor in the graphical interface of the «ADM Configurator» application using the Bluetooth interface. Up to 5 sensors of ADM35(H) can be connected to one tracker. One sensor can be connected to several trackers simultaneously Catching the sensor can be performed manually and automatically. -
Page 14: Manual Adding Of Sensors And Checking The List Of The Sensors Added
• Open the tab «Bluetooth». • Place the sensors close to the tracker. • Click «Autostart» and wait for the complete of the process. • The caught sensors will be displayed below. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 15: Adding Sensors With The Help Of Commands
BLESENSORINFO X – display of the data for the sensor under number X, where X – number of the device from the BLESENSOR sensors list. BLESENSORINFO – command without parameters displays data about all caught sensors; Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 16: Storage And Transportation
When there are signs of oxidation or other proofs of liquid penetration in the sensor housing; -sensors with signs of electrical and/or other damages caused as a result of unacceptable changes in external power network parameters or improper use of the terminal; Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... -
Page 17: Marking And Packaging
Device name Quantity Comments Wireless multifunctional sensor ADM35(H) 10 Acceptance certificate Wireless multifunctional sensors ADM35(H) in the amount of _____ pcs are considered to be ready for operation Date of manufacture: Manufacturer: «Neomatica»LLC 614087, Russia,Perm, 24A Malkova Str., office 6. -
Page 18: Annex A. Sensor Usage With Teltonika Fmb Trackers
«connection» and the serial number of the sensor under configuration. In the «connection1» subform, select the “Advanced” option as the operating mode. The subform will automatically expand and will look as follows: Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... - Page 19 The table of data received from ADM sensor should be filled as follows: You can do the same to configure 3 sensors Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021...
- Page 20 The light level is transmitted to the server in the float format. To convert it to a normal form, it is necessary to perform the appropriate conversion on the server side. Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021...
-
Page 21: Annex В. Instructions For Setting Up The Sensor Via "Nrf Connect" Application
6. Close to the field TX Characteristic you can see three arrows pointing downwards. Click onto them, they will appear to be crossed out. Now the sensor is ready to receive your commands; Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021... - Page 22 “Disconnect” button in the upper-right corner. If the sensor firmware version is lower than 0x06 version, reboot the sensor by turning off the power (remove the battery and wait for 3 minutes). Neomatica LLC, Bluetooth sensor ADM35, ADM35H, version 1.1 dd 02.07.2021...
