rc-tool Alti-DX2 User Manual

User's Manual
The Alti-DX2 is an altimeter sensor for Spektrum telemetry
receivers with X-BUS port or the Spektrum telemetry module
TM1000.
Alti-DX2 measures the current altitude above ground level.
The Alti-DX2 is designed specifically for model aircrafts, where
smallest dimensions, very low weight and simple handling is
required.
It is equipped with a barometric sensor and a 32-bit processor
and therefore has an excellent sensitivity and a fast response
time.
Alti-DX2 is connected directly to a Spektrum telemetry receiver
or the Spektrum telemetry module TM1000. No separate power
supply is required.

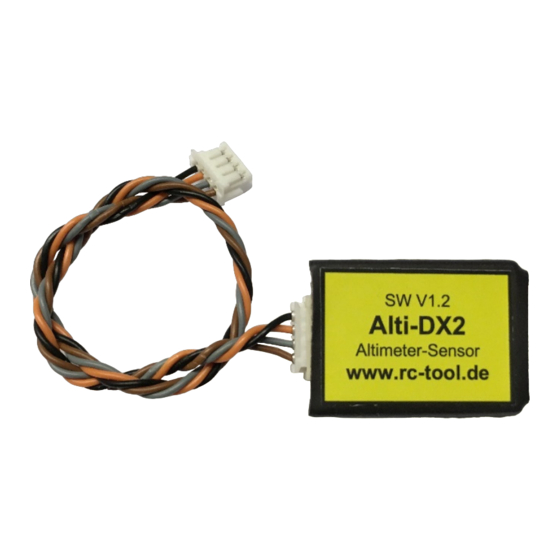

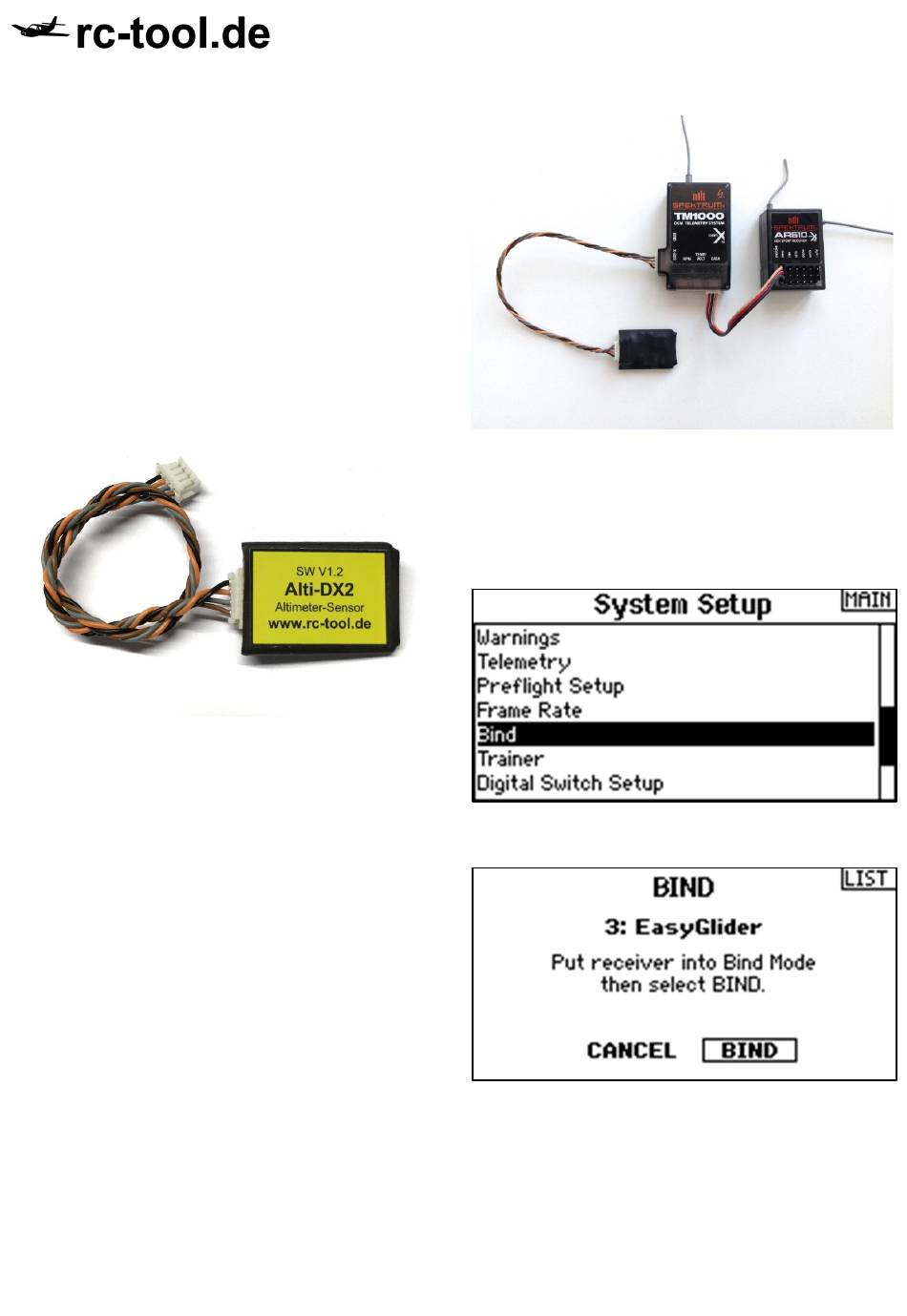

Figure 1: Altimeter Sensor Alti-DX2

Installation

1.
Alti-DX2 is connected to the X-BUS port of a Spektrum telemetry
receiver or the Spektrum telemetry module TM1000 via the
cable supplied.
After power on the receiver, the Alti-DX2 calibrates to the
surrounding air pressure and transmits an altitude of zero
meters. If the sensor is moved up or down, the measured
altitude is transmitted to the transmitter via the telemetry
system.
The height can be displayed in feet or meters. The corresponding
setting must be made on the transmitter.
The following steps show how to setup the Spektrum DX6 G2/G3
transmitter (software version 2.05).
The setting process for other transmitters, receivers and
software versions may differ slightly from the procedure
described here. The description is therefore only for guidance:
1. Power off the transmitter
2. Connect Alti-DX2 to the "X-BUS" port and if the TM1000 is
used connect the "DATA" port to the "DAT" port of the
receiver.
Altimeter Sensor
Figure 2: Connection Scheme Alti-DX2 - TM1000 - Receiver
3. Press and hold the "BND" button on the TM1000 while the
receiver is connected to the power supply. The LED of the
receiver starts flashing and is waiting for the "bind" signal
from the transmitter.
4. Switch on the transmitter with the scroll wheel pressed.
Select "Bind" in the "System Setups" menu (Fig. 3).
Figure 3: The "Bind" function in the System Setup
5. In the "Bind" menu click "Bind" (Fig. 4)
Figure 4: The "Bind" menu
Alti-DX2
January 2020
