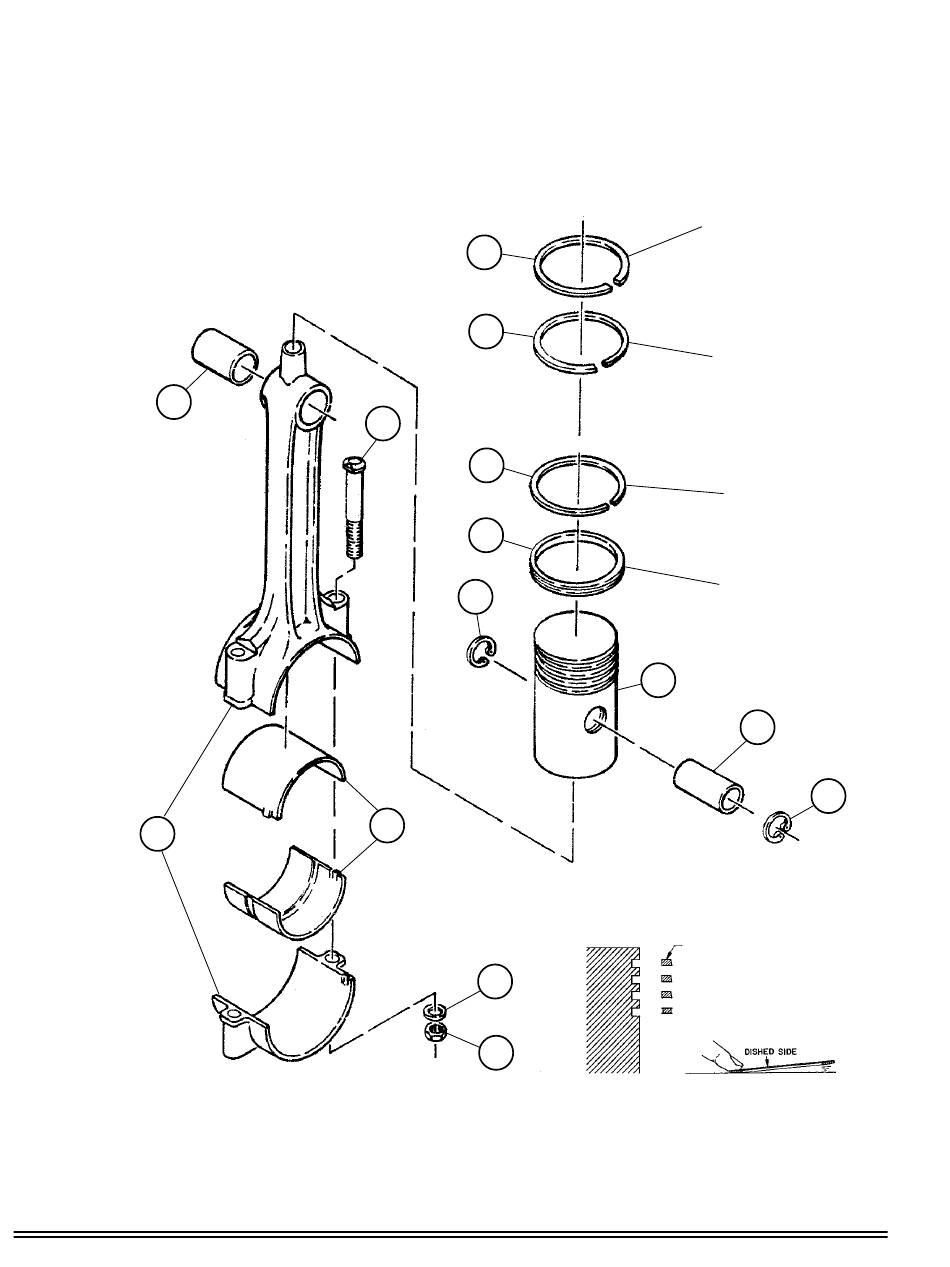

CONNECTING ROD & PISTON GROUP 110439
CONNECTING ROD & PISTON GROUP 110439
CONNECTING ROD & PISTON GROUP 110439
CONNECTING ROD & PISTON GROUP 110439
CONNECTING ROD & PISTON GROUP 110439
(high pressure)
1.2
1.1
QR 310
50214-105, March 2005
6
6
1.3
6
5
4
7
1.4
8
11
TOP
GROOVE
SECOND
GROOVE
THIRD
GROOVE
BOTTOM
GROOVE
3
Pip mark
or "T"
on top of ring
Be sure to stagger ring gaps !
