1

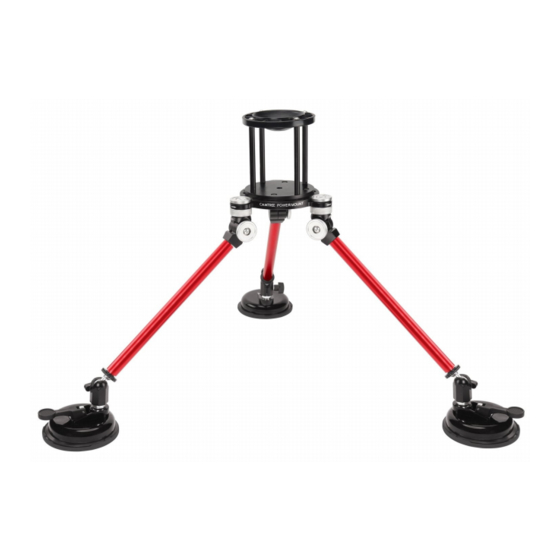

Power V2 Suction Mount Camera Gripper
(G-PM-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
3x Ball Tilt Head
2 x Rope Hooks
5x Rubber Grippers
Aluminum Rods
75mm Bowl
Head
1/4" & 3/8"
Camera Mounting
Hard Case
2x Ropes
Platform
Bolt
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for Camtree Power V2
Summary of Contents for Camtree Power V2
- Page 1 Power V2 Suction Mount Camera Gripper (G-PM-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Gripper Setup Suction cup mounts can be affixed to just about any smooth surface on any vehicle. Large pin on the side of each unit, suction mounts are good to go. Screw in the Ball Tilt Head on suction cups. Adjustable Ball Tilt Heads allow for an extensive range of lockable positions for Aluminum Rods.
- Page 3 Now fix both suction cup with metal loops on your vehicle. Attach one end of Rope with metal Hooks to camera mounting platform and another end to Metal loop of Suction cup. Tighten the Rope properly. Now loosen the four Allen bolts on Camera platform, align 75mm bowl with it.
- Page 4 Attach Rope Hooks to your vehicle, then attach metal hooks to Rope Hooks and tighten rope properly to secure your gripper. You can also attach your camera set up directly to camera mounting platform with provided screw. The Camera mounting platform of Power Mount Gripper has three leg attachment points that are each fitted with two positive locking ratchet joints, one for tilt and one for swivel.
- Page 5 YOUR CAMTREE POWER V2 SUCTION MOUNT CAMERA GRIPPER ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
