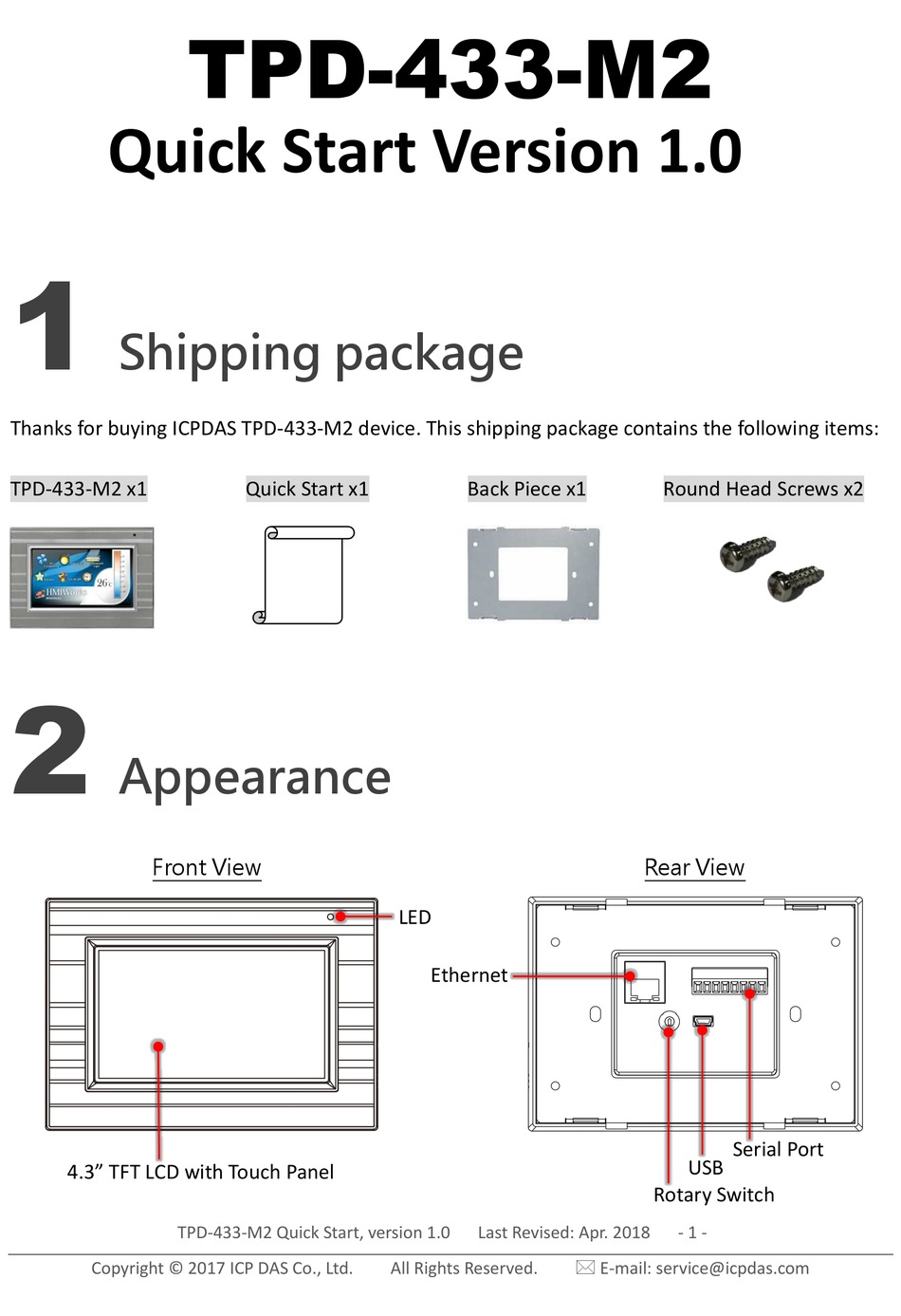

Quick Start Version 1.0
1
Shipping package
Thanks for buying ICPDAS TPD-433-M2 device. This shipping package contains the following items:
TPD-433-M2 x1
2
Appearance
Front View
4.3" TFT LCD with Touch Panel
TPD-433-M2 Quick Start, version 1.0
Copyright © 2017 ICP DAS Co., Ltd.
TPD-433-M2
Quick Start x1
Back Piece x1
LED
Ethernet
Last Revised: Apr. 2018
All Rights Reserved.
Round Head Screws x2
Rear View
Serial Port
USB
Rotary Switch
- 1 -
E-mail: service@icpdas.com
