FTR Touch Quick Reference Card

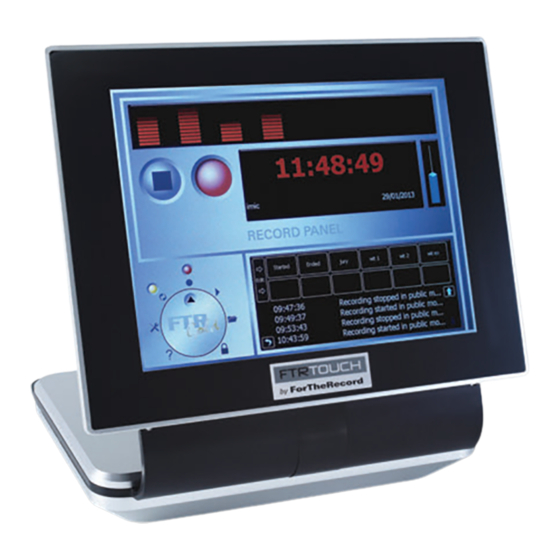

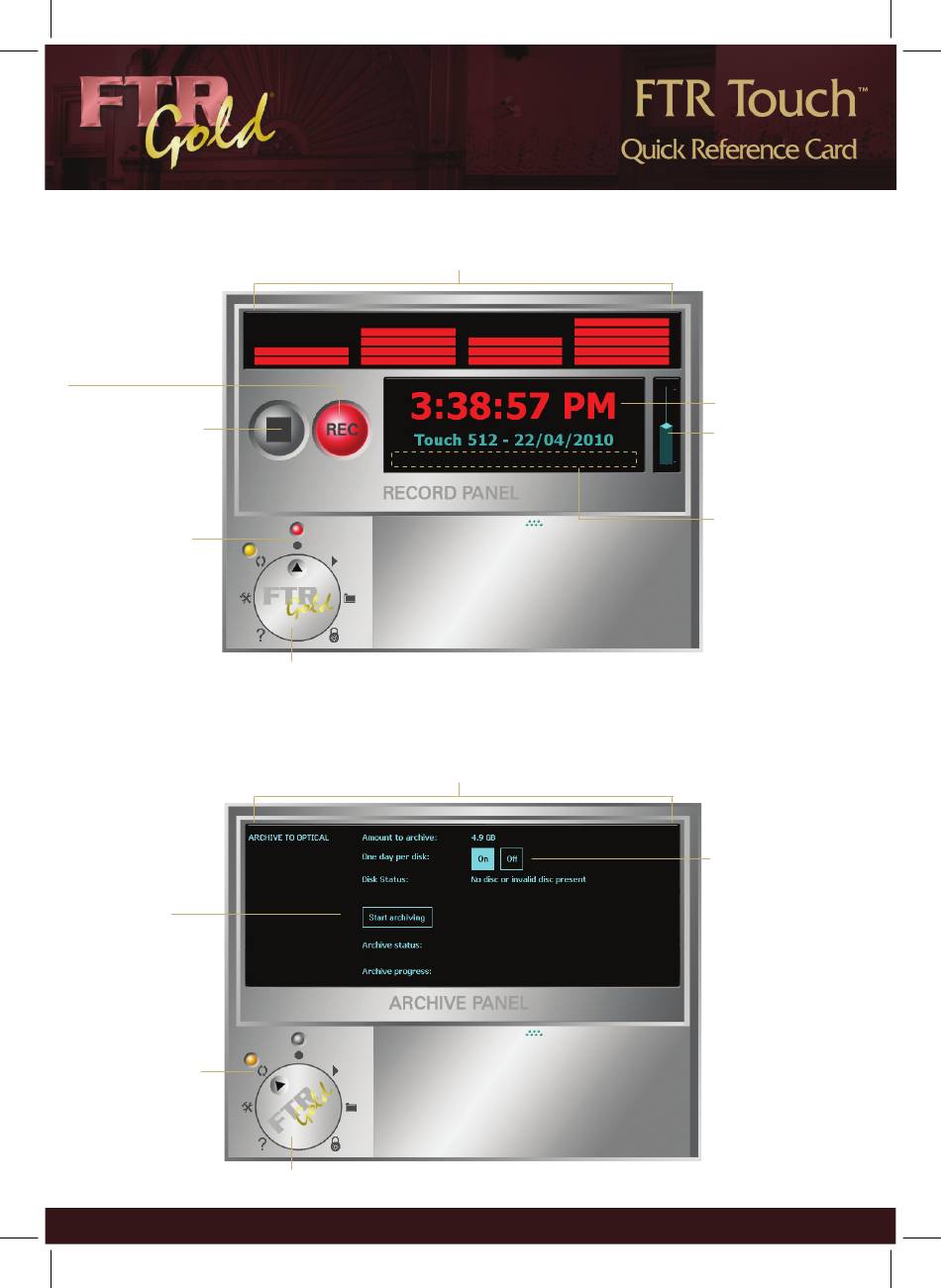

Record Panel

Start Record Button
Touch to start recording.
Stop Record Button
Touch for 3 seconds to
stop recording.
Record Panel Icon
Includes a Record Status
LED that shows when
recording is in progress.
Mode Dial -

Archive Panel

Showing Archive to
Optical
For details on archiving
to network see the
user's guide.
Start Archiving
Insert a blank disc and
touch to start the creation
of an archive CD/DVD.
Archive Panel Icon
Includes an Archive
Status LED which is
yellow when recordings
are yet to be archived.
Mode Dial -
FTR Gold-QRC-Touch-5.3-Front 20100514
Channel Recording Levels
Red when recording, grey when not recording
Rotate dial to Record Panel icon or touch the Record Panel icon.
Archive Panel
Rotate dial to Archive Panel icon or touch the Archive Panel icon.
Record Time Display
Confidence Monitor
Volume
Touch and drag to the
required volume.
Message Area
Displays messages as
required.
One day per disc
Touch On if you want
each disc to be limited to
a day of recording.
It is best practice to
archive all recordings
before shutting down the
FTR Touch unit.
Monitor the Archive
Status LED for confirma-
tion that all recordings are
archived.
