Avix A11707 Owner's Manual

Electric leaf blower/vacuum/mulching
Hide thumbs

Advertisement

Quick Links

Download this manual

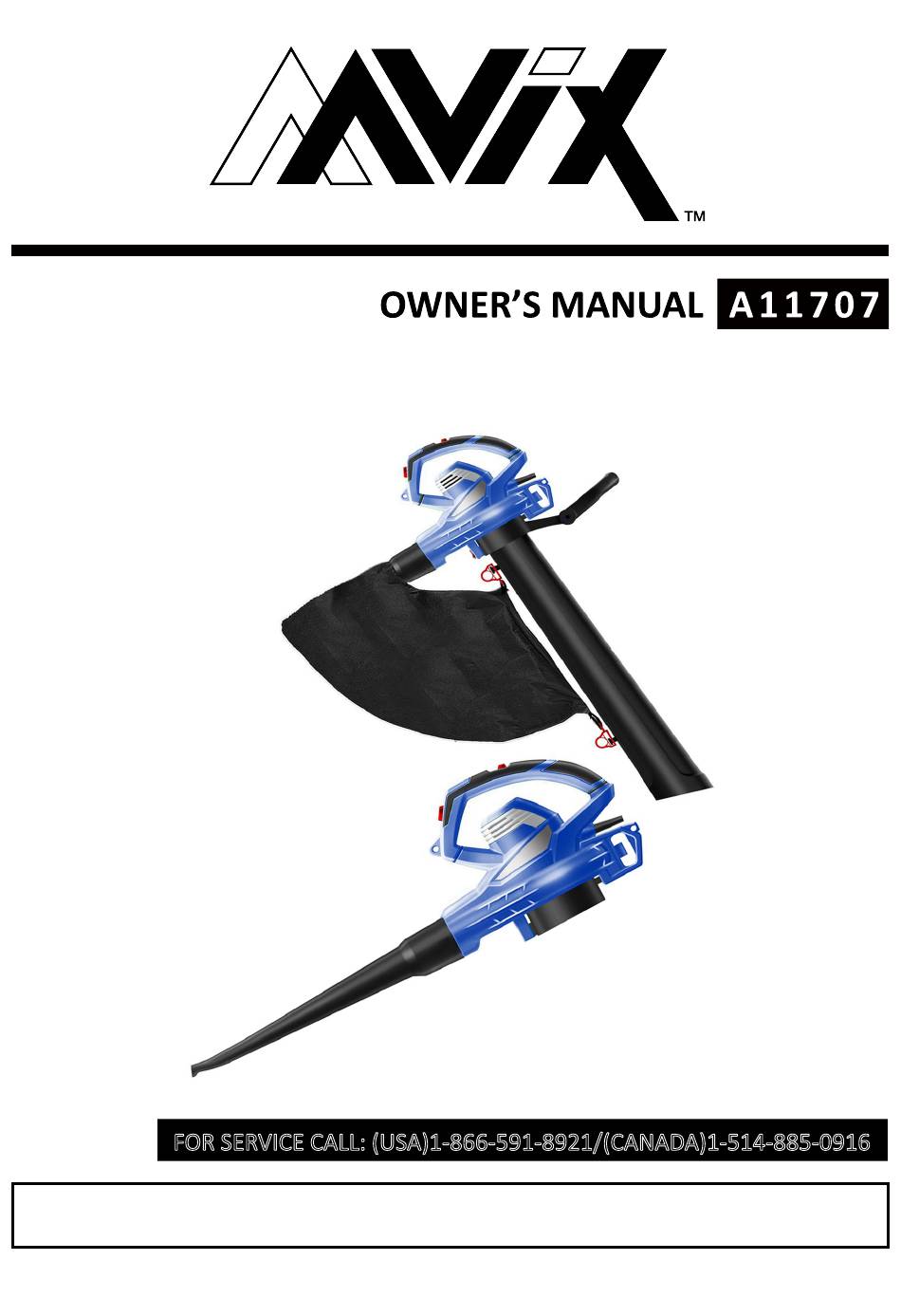

A A V I X
O U T D O O R S
ELECTRIC LEAF BLOWER/VACUUM/MULCHING
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit, You are responsible for operating the product properly & safely.
Version: V1.20171102

Advertisement

loading
Need help?

Need help?

Do you have a question about the A11707 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avix A11707

  • Page 1 A A V I X O U T D O O R S ELECTRIC LEAF BLOWER/VACUUM/MULCHING FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit, You are responsible for operating the product properly & safely. Version: V1.20171102...

  • Page 2: Table Of Contents

    WARNING READ ALL INSTRUCTIONS BEFORE OPERATING! Follow all instructions. Save all warnings and instructions for future reference. These instructions below are for your safety. Please read through them thoroughly before using. Familiarize yourself with them to reduce hazards like personal injuries and damage to property.
  • Page 3 7) Ground Fault Circuit interrupter (GFCI) use, appliances should be stored indoors in protection should be provided on the dry, and high or locked-up place - out of reach circuit(s) or outlet(s) to be used for the of children. gardening appliance. Receptacles are 17) Maintain Appliance with Care - Keep available having built-in GFCI protection and cutting edge sharp and clean for best...

  • Page 4: Symbols

    personnel could result in injury to the user or damage to the product. • This blower vacuum is intended for residential use only. Commercial use of this product is prohibited and will void the manufacturer's warranty. (B) CONNECT PLUG AND RECEPTACLE •...

  • Page 5: Specifications

    Use a hair net. Remove plug from the mains immediately if the cable is damaged or cut SPECIFICATIONS Model# A11707 Rated Voltage 120V~60Hz Rated Power 12Amp No-load Speed 8000 - 14000 min Max. Air Speed 280km/h(174m/h) Max.

  • Page 6: Know Your Blower / Vacuum / Mulching

    KNOW YOUR LEAF BLOWER / 11. Upper Blower Tube VACUUM / MULCHING 12. Intake Cover 13. Cord Retainer 14. Shoulder Strap ASSEMBLY WARNING!: ENSURE THE TOOL IS TURNED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS. Assembling the Blower Tube 1.
  • Page 7 NOTE: Ensure the blower tube is pushed fully 2. Place the intake cover on the suction onto the housing otherwise the motor will not opening as shown then rotate clockwise 90 start. degrees. Vacuum-Mulcher Mode Setup 1. To install the vacuum tube you must remove the protective intake cover.
  • Page 8 Extension Cord Retainer The cord retaining hook is used to “anchor” an extension lead (not included) when it is connected to the power cord of the tool. It prevents the extension lead from being accidentally disconnected from the blower vacuum’s power cable or shaken loose during use.

  • Page 9: Operation

    On/Off Switch 1. To turn ON push the on/off switch right to the ON(I) position. 2. To quickly unclip the blower vacuum, press either side of the buckle. 2. To turn OFF push the on/off switch to the left OFF(O) position. Power Setting Adjustment Variable speed provides greater control when using the blower vacuum, the blow and vacuum...
  • Page 10 Hold the blower vacuum firmly, move the on/off switch right to the ON position, point the jet of air in front of you and move forward slowly. Move the blower vacuum from side to side, with the nozzle several inches above the ground. Be careful where you point the jet of air as it can move heavy material and cause injury or damage to bystanders.

  • Page 11: Maintenance

    MAINTENANCE WARNING! ENSURE THE BLOWER VAC IS DISCONNECTED FROM THE POWER 4. Pull away the vacuum tube assembly from SUPPLY BEFORE PERFORMING ANY OF the body of the blower vac. THE FOLLOWING OPERATIONS. Clearing Debris To access the impeller, remove the vacuum tube and collection bag.

  • Page 12: Troubleshooting

    stop motor immediately. Abnormal vibration cleaning do not use solvents but a moist soft usually indicates a mechanical problem cloth only. Never let any liquid get inside the continued operation could lead to injury or blower vacuum; never immerse any part of the damage.
