Summary of Contents for Epcom XMRA8

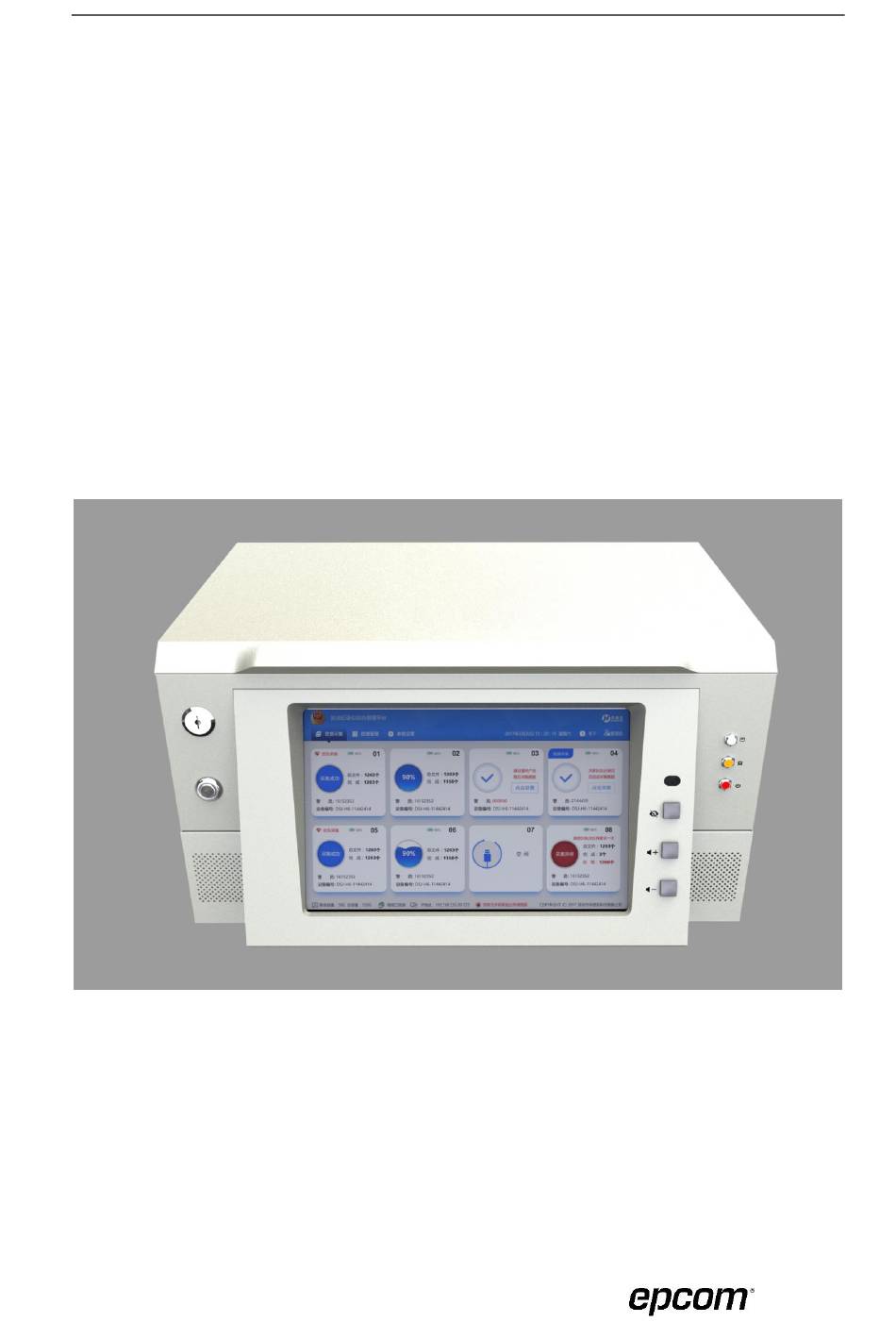

- Page 1 Manual for Multi-cell docking station XMRA8 1 / 10...
-
Page 2: General Introduction
1 General introduction XMRA8 is a mult-cell docking station, which design for the body camera to achieve data exporting, uploading and battery recharge, it support total 8 channel camera slots working at the same time, it can upload the recorded files from the camera to the FTP server directly without local buffer, which is a very important part of the body worn camera total solution. -
Page 3: Indicator Light
3.1 Button operation instruction Button name Description Power on/off Press the button gently to start up the machine in shutdown mode; button Press the button for 3 seconds, the screen will pop-up the shutdown tips. Volume button Increase or decrease the volume of speaker Screen off In any mode, press the button to screen off, system enter power-save mode. -
Page 4: Gui Introduction
3.3 GUI Introduction 3.3.1 Icon display Icon Name Function definition Ready BWC is not be inserted, or inserted but not detected Connected Means the docking detected the camera, and start to mount. The data on the BWC can’t upload to FTP server, which Export error means the network is disconnected or the FTP server is incorrect. - Page 5 3.3.2 Data import Start up the unit, insert the BWC to the dock, the data on the BWC will be uploaded instantly and automatically, the unit displays “ ”, it means the working mode. During this process, the acquisition cell will show acquisition unit No., battery level, officer No., product SN and so on.
-
Page 6: Log Management
3.3.3 Log management This part is for operation log search and checking. The log include which device is connected, the uploading status is success or failed, log exported and so on. 6 / 10... - Page 7 3.3.4 System setting In this page, you can setup the FTP server information, and setup the system data/time. Brightness:Adjust the brightness of the touch screen. Date/time: The option is Manual or Auto; Manual means you can setup the data/time manually; Auto means when the device connect to internet, it will sync the date/time automatically.
- Page 8 Remark:Please make sure the directory for firmware upgrade is correct. 3.3.5 Device information Click the About button, it will pop-up the window to display all the information about the device, as follow: : Means the firmware version of the docking station. : Means the FTP connection station, green means the connection is normal.
- Page 9 9 / 10...
- Page 10 3.4 Recharge This Multi-cell docking station can support one or multiple BWC charging simultaneously, and shows the charging status. Each USB port can mostly offer 1.2A charging current. 10 / 10...
