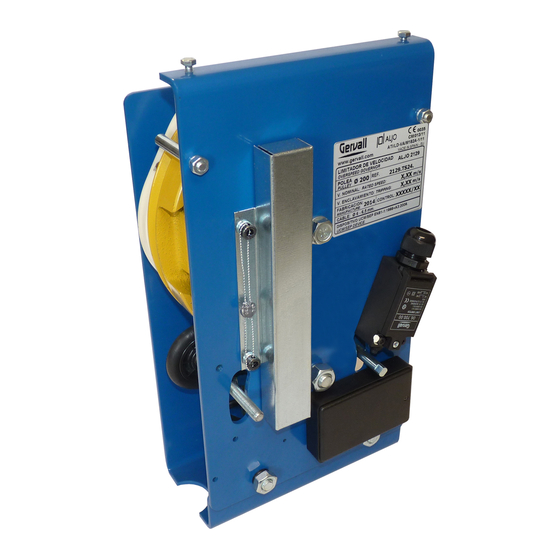

Overspeed Governor ALJO 2129
Maintenance and assembly instructions
ϕ (mm) Overspeed contact
Ref.
2129.PSA2 200
2129.DSA2 200
2129.TSA2 200
2129.TK24 200
2129.TK48 200
2129.TK190 200
2129.TK230 200
2129.ZSA24 200
2129.ZSA230 200
2129.ZK24 200
2129.ZK190 200
2129.ZK230 200
4.- Blocking-Unblocking of the Overspeed Governor.
The overspeed governor has upward and downward blocking. Can be used indiscriminately mounted right or left (both directions of rotation).
The bloking speed may range from one direction to another of 4% and 8%. The overspeed governor can be mounted ONLY in
downwards, too (in these cases the reference will be 2129.B-----).
4.1.- Manual blocking.
It is possible to carry out the manual tripping of overspeed governor, to activate the safety gear, pushing downwards the tripping device of

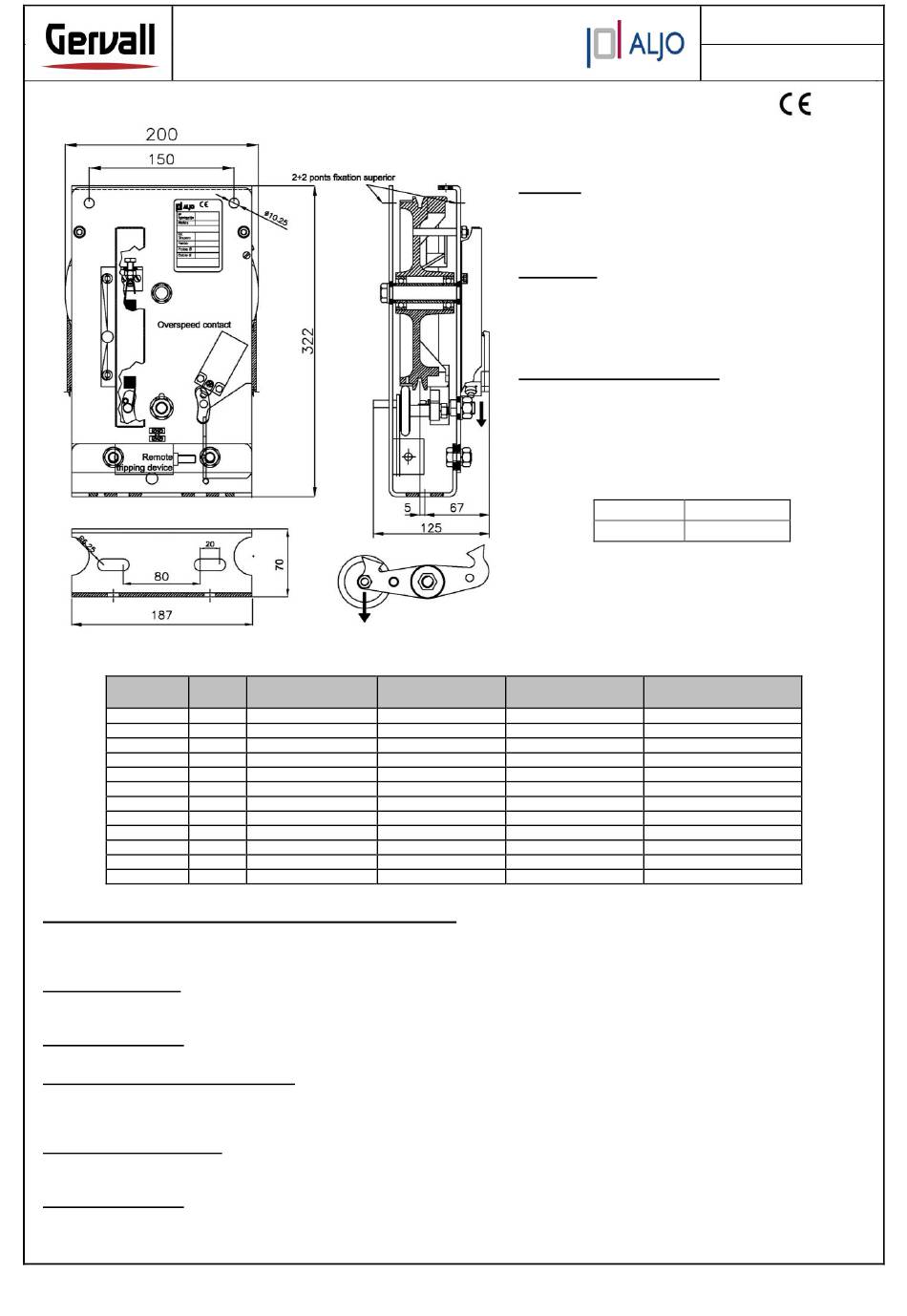

overspeed governor, indicated in the arrow in the diagram.
4.2.- Remote blocking.
There is a solenoid to produce the tripping of the overspeed governor. There are different tension supplies of the solenoid.
4.3.- Mechanical and electrical blocking.
When the rotation speed of the overspeed governor reaches the speed at which it has been calibrated and sealed, the electrical contact is
activated, which indicates the control panel to brake the machine and decelerrate the car. If this is not enough, the overspeed governor will
block mechanically and as a result activate the safety gears and the stoppage of the car on the guide rails.
4.4.- Electrical contact reset.
The over speed switch has to be reset when it has been opened. This will be reset manually (machine room), automatically or remote reset
to 24 VDC (4,2 A) o 230 VAC (0,5 A) and will be after the mechanical reset of the overspeed governor.
4.5.- Mechanical reset.
When the overspeed governor is triggered, its rope is maintained in a locking position being required the displacement of the car in the
opposite direction of
which the blocking was produced for the mechanical resetting.
APLICACIONES ELECTROMECÁNICAS GERVALL, S.A. Dirección: Eusebi Millán, 5-7 Pol. Ind. Roquetes 08800 Vilanova i la Geltrú,
(1 NC) Manual
(2 NC+1NO) Auto
(1NC+1NO) Auto
(1NC+1NO) Auto
(1NC+1NO) Auto
(1NC+1NO) Auto ED / 190 VDC (0,3 A)
(1NC+1NO) Auto ED / 230 VAC (0,25 A)
2NC (Remote reset)
2NC (Remote reset)
2NC (Remote reset)
2NC (Remote reset) ED / 190 VDC (0,3 A)
2NC (Remote reset) ED / 230 VAC (0,25 A)
Barcelona – España Tels. 34-938 930 228 Fax 34-938 935 590 www.gervall.com
1.- Seal.
The adjusted sealed points of the overspeed governor
should not be manipulated. The adjustments are
produced in the workshop and cannot be varied.
2.-Cables.
The ropes to be used are Ø 6 mm - 6.5 mm (6x19+1)
(8x19+1).
Avoid getting the rope greasy when lubrication procedures
are carried out in the lift.
3.- Fixture and Assembly.
To assemble the overspeed governor it will be necessary to
apply Hilti type wads or similar of M12x100E. The
overspeed governor will be fixed on these wads in the
middle of two drills situated in the base, or better still, by
means of screws if pre-drilled guides have been installed in
the floor.
Remote tripping Remote reset contact Tensora / Tension Pulley
---
---
---
ED / 24 VDC (1,9 A)
ED / 48 VDC (1 A)
--- 24 VDC (4,2 A)
--- 230 VAC (0,5 A)
ED / 24 VDC (1,9 A) 24 VDC (4,2 A)
190 VDC (0,5 A)
230 VAC (0,5 A)
2014/33/EU
Rated speed Tripping speed
< =1,60 m/s 0,30 - 2,20 m/s
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
--- 12.064.0A / 12.064.0M
12.064.0A / 12.064.0M
12.064.0A / 12.064.0M
12.064.0A / 12.064.0M
12.064.0A / 12.064.0M
12.064.0A / 12.064.0M
IM 2129 IN 02
Pag.: 1 / 2
1027
ATI/LV/001
