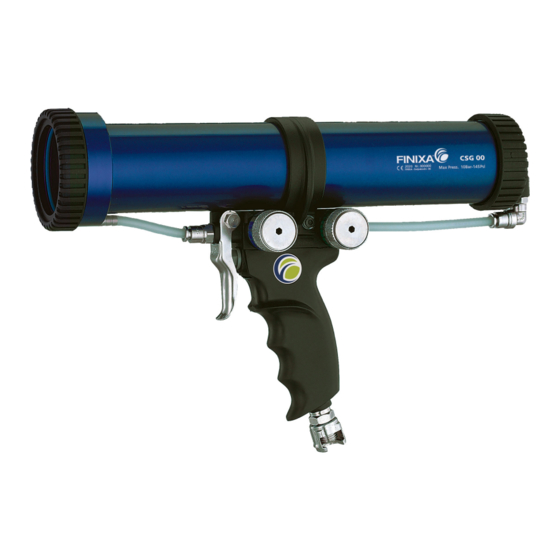

COMBI SEALANT GUN
Pneumatic caulking gun for applying and spraying one-component adhesives and sealants.
Allows the application of all kinds of single-component sealants (in aluminium or plastic cartridges) in various
finishes .

Applying sprayable sealant

1
Open the cartridge
4
Connect the compressed air at
a pressure of about 6 bar and
close both the pressure regu-
lators (3 and 4), turning them
in a clockwise direction.
For more information, contact us
2
Screw the nozzle (7) onto
the cartridges and fit it in-
side the gun after removing
the front ring nut.
5 Slightly open the front regu-
lator (3).
6 Pull the trigger (2)
info@finixa.com
MANUAL CSG 00
COMBI SEALANT GUN

Scope of supply

1. Compressed air gun (max 8 bar)
2. Trigger
3. Pressure regulator
4. Pressure regulator
5. External nozzle for coarse structure
(Volkswagen type) - CSG 02
6. External nozzle for fine structure (Renault type) - CSG 03
7. Internal nozzle for spray sealant applications - CSG 01
8. Adapter for non-sprayable sealants and adhesives.
3 Put the external nozzle of
your choice (5 or 6) on the
gun and lock it in place.
7 Now gently open the back
regulator (4) and adjust the
product supply
8 By adjusting the front re-
gulator (3) and the spray-
ing distance you can change
the spraying pattern and the
structure .
CODE BY0943177A ED.N°1 - 06/01/2020
