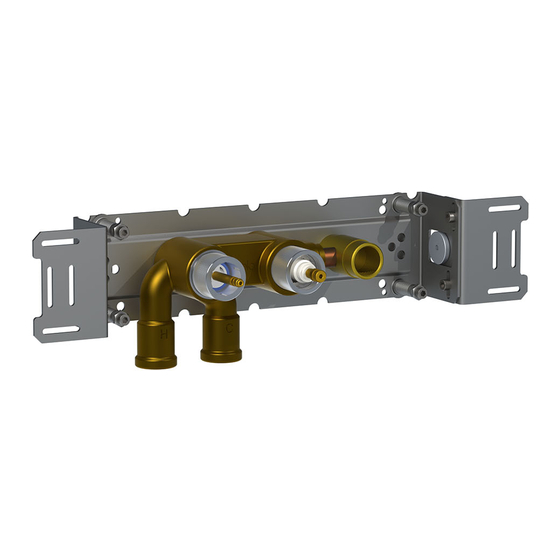

VOLA 5100, 5100X, 5200, 5200V, 5300
Fitting instruction
Monteringsvägledning
Montageanleitung
Montage hanleiding
Monteringsvejledning
Manuel de montage
G3
2
www.vola.com
mnt_5000_V10_40999007
02/2010 - 06/2020
© VOLA A/S
5 703182 429298
L
L1
L2
L3
L4
H
H1
490 mm
355 mm
133 mm
A
19 1/2"
14"
5 1/4"
54 mm
78 mm
95 mm
130 mm
2 1/2"
3 1/16"
3 3/4"
5"
570 mm
435mm
212 mm
B
23"
17"
8 3/8"
A: 5100, 5100X
L
L1
L4
L4
L2
L3
B: 5100X
L
L1
L4
L4
L2
L3
VOLA A/S • Lunavej 2 • DK-8700 Horsens • Tel. +45 7023 5500 • Fax +45 7023 5511 • sales@vola.dk • www.vola.com
96 mm
3 - 15 mm
3 3/4"
1/8 - 5/8"
70 mm
2 3/4"
G5
3
3/4"
US:
3/4" NPT
Max. 30 mm
Max. 1 1/8"
70 mm
2 3/4"
Max. 30 mm
Max. 1 1/8"
?
5200: 5200V + 200M
A: 5200V
L
L1
L4
L2
L3
Data, 3 Bar/43.5 Psi:
1A
5100:
5200V:
5300:
3 - 15 mm
70 mm
1/8 - 5/8"
2 3/4"
Max.: 10 Bar/145 psi
M5
6
Extension
Verlängerung
3
3/4"
US:
3/4" NPT
7
Fitting of extension
Montage von verlängerung
L1 + 10 mm
L1 + 3/8"
VR5250
70 mm
2 3/4"
A: 5300
225 mm
8 3/4"
H
VR2019+, VR2119+
58 mm
2 1/4"
Extension, retrofit
l/min.
gpm.
Max. 65°C, 150°F
Verlängerung, nachträglicher Einbau
35
9.3
Forlængerdele, eftermontering
35
9.3
52 - 0 mm
35
9.3
USA:
Minimum flow rate 1.8 gpm.
AUS - Hot water inlet:
Max. 50°C, 122°F. (AS 4032)
Forlængerdele
Verlengstukken
Förlängning
Modification
mm VR5250
VR2019
3 - 15 Std.
Std.
Tiles:
15 - 25 +10
+10
Fliesen:
25 - 35 +20
+20
Fliser:
+
Tegels:
35 - 45 +30
+30
Carreaux:
45 - 55 +40
+40
55 - 65 +50
+50
Montering af forlængerdele
Montage van de verlengstukken
Montering av förlängning
Montage des rallonges
12 mm
Förlängning, eftermontering
Aanpassing na montage
Modification aprés installation
-15 - 0 mm
mm VR5250
VR2019
37 - 49 Std.
Std.
27 - 37 +10
+10
17 - 27 +20
+20
+
7 - 17 +30
+30
-3 - 7 +40
+40
-15 - -3 +50
+50
2100/2200/2300/2400
VR2250:
VR1400:
VR2019:
35 - 47 mm Standard
Standard
Standard
25 - 35 mm VR2250+10
VR1400+10
VR2019+10
15 - 25 mm VR2250+20
+
VR1400+20
+
VR2019+20
5 - 15 mm VR2250+30
VR1400+30
VR2019+30
-5 - 5 mm VR2250+40
VR1400+40
VR2019+40
-15 - -5 mm VR2250+50
VR1400+50
VR2019+50
1
