Garrett GM24k Quick Start Manual

1. Attach the lower rod to the searchcoil. Put rubber washers inside the recess

area on the lower stem, then insert bolt and nut.

2. Assemble the three rod sections to best fit your body

3. Carefully wrap and secure the cable around the shaft of the detector

4. Connect the coil cable to the back of the control box

5. Insert the battery pack

6. Insert headphones into back of detector

Garrett Electronics

1881 W. State St.

Garland, TX 75042 USA

Visit garrett.com to download full-length GM24k User's Manual.

ASSEMBLY

Prospecting Metal Detector

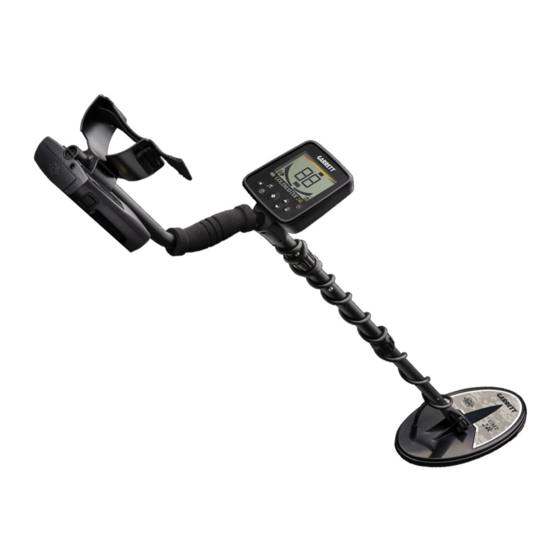

Original GM24k detector

Table of Contents

Do you have a question about the GM24k and is the answer not in the manual?

Page 1 Prospecting Metal Detector Quick Start Guide Visit garrett.com to download full-length GM24k User’s Manual. ASSEMBLY 1. Attach the lower rod to the searchcoil. Put rubber washers inside the recess area on the lower stem, then insert bolt and nut. 2. Assemble the three rod sections to best fit your body 3.
Page 2 GM24k Interface Target ID # Visual Target ID Ground strength in Higher number, Ground Scan mode Better chance of gold Beep Mode On Backlight On Iron Cancel On TracLock On Sensitivity Volume Level SAT/Threshold Level Audio Mode Power On/ SAT +/-...
Page 3 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Garrett Electronics, Inc. could void your authority to operate this product. CE COMPLIANCE This device operates within the following frequency range and maximum power output: (a) Frequency band in which the radio equipment operates - 46.696kHz - 47.904kHz...
