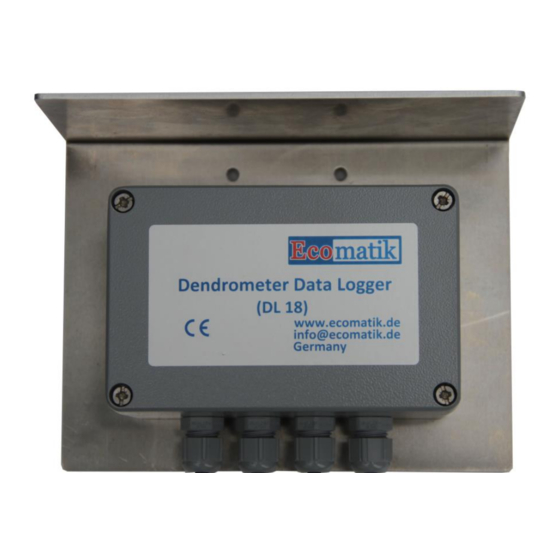

- Page 1 ECOMATIK GmbH DL 18 Muenchner Str. 23 D-85221 Dachau/Germany Data Logger Tel.: +49 8131 260 738 Fax: +49 8131 260 736 e-mail: info@ecomatik.de website: www.ecomatik.de User Manual Version 2019...
- Page 2 Dendrometer Data Logger DL18 1. Introduction Thank you for purchasing our ECOMATIK DL 18 data logger set. The DL 18 is an out- standing choice to be used in combination with ECOMATIK dendrometers (all models), temperature sensors (leaf: LAT-B2; air, surface, tissue, soil: T-Surface/-Tissue/-Soil), air temperature and humidity sensor (T/RH-Sens), soil moisture sensor (EM 35) or light sen- sors (PAR: EM 20, Pyranometer: EM 25).
- Page 3 To install the software from the USB Stick: Insert the stick in your computer, select the folder Ecomatik\software\windows\Hoboware_Free_Setup.exe for Windows computer or ecomatik\software\mac\Hoboware_Free_Installer.dmg for Mac computer 6. Configuring the logger The software has many features. For dendrometers you mainly need only 4 functions (fig.
- Page 4 Dendrometer Data Logger DL18 Launch Data Logger Data Logger Readout Satus Export Serial No of Logger connected Fig. 4 Main functions for dendrometer use Launching logger: Connect the logger to USB port Click the Launch icon on the toolbar (This displays the logger’s Launch window looking similar to the following) Fig.
- Page 5 Dendrometer Data Logger DL18 Select measuring function Adapter Cable, Cable-2.5-Stereo (0-2.5 Volts DC) (fig. 6) Fig. 6 Measuring mode for dendrometer: Cable-2.5-Stereo (0-2.5 Volts DC) Select Logging Interval and other parameters Fig. 7 A typical configuration for 4 dendrometers without Scaling (LCD units V) Delayed Start Click for Lauching Logger.
- Page 6 Data conversion with the scaling function of the data logger The scaling function of the DL 18 can be used to automatically convert raw volt signals from dendrometer measurements into micrometers. For channels connected with other sensor types (LAT-B2, T-Surface/-Tissue/-Soil, T/RH-Sens, soil moisture), please do not use the scaling function.
- Page 7 Dendrometer Data Logger DL18 Confirm the input and back to the Launch logger window. Delayed Start Click for Lauching Logger (Fig. 9). Fig. 9 A typical configuration for 4 dendrometers with scaling (LCD units micrometer) 8. Technical Specifications 1 900 000 readings Memory If you connect 4 dendrometers, and collect data every 30 minutes, the memory will store data of 7900 days...
