- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-IP2HE and ALF-IP2HD 1080P HDMI over IP Encoder and Decoder...
- Page 2 Statement Thank you for choosing this product, please read this user manual carefully before using this product. The functions described in this version are updated. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation.
- Page 3 Safety Precaution Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................2 Overview ....................2 Package Contents ..................2 Panel ......................3 Encoder ..................... 3 Decoder ..................... 3 Application...................... 4 Specification ....................6 Trouble Shooting ................... 7 Warranty ......................8... -
Page 5: Introduction
Introduction Overview ALF-IP2HE / ALF-IP2HD is a networked AV encoder/decoder adopting the latest H.265 compression technology. The encoder/decoder supports resolution up to 1080P@60Hz and supports using the VDirector App (IOS version) to control, users can easily build an IP matrix or a video wall on iPad. - Page 6 Decoder: ALF-IP2HD ALF-IP2HD Decoder x 1 Power Adapter (DC 12V 1A) x 1 Exchangeable US Plug x 1 Exchangeable EU Plug x 1 Phoenix Male Connectors (3.5 mm, 3 Pins) x 2 Mounting Ears (with Screws) x 2 ...
-
Page 7: Panel

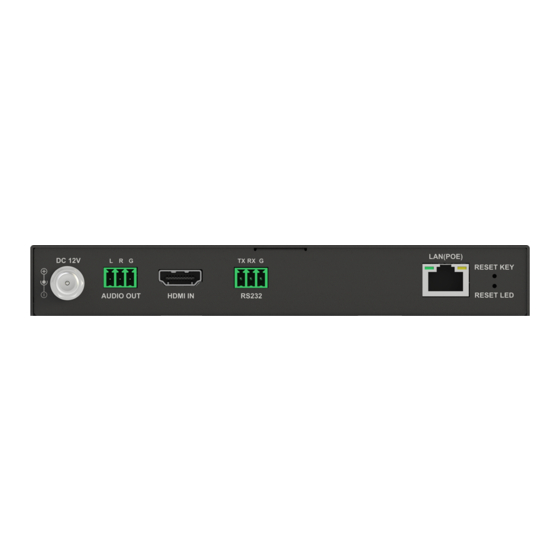

Panel Encoder Front Panel & Rear Panel Power LED Status LED Reset Reset LED Power Audio Out HDMI In RS232 Connector LAN (PoE) Decoder Front Panel & Rear Panel Status LED Info/Source(2s) Power LED Reset Reset LED Power Audio Out HDMI Out RS232 Connector... -
Page 8: Application
Application 1 – 1: Extender Encoder Decoder HDMI RS232 HDMI RS232 Projector Laptop 1 – n: Splitter Switch Encoder Decoder HDMI HDMI Decoder HDMI DVD Player m - n: Matrix/Video Wall To configure matrix and video wall, perform the following: Scan the QR code or search "VDirector"... - Page 9 the VDirector will start searching for online devices, and the following main screen will appear: Name Description Logo This logo can be changed to a new one. System Click this button to enter system configuration page for Configuration the functions: Button 1) Naming and Sequencing;...
-
Page 10: Specification
Specification Video Encoder Decoder Input Port 1 x HDMI 1 x LAN Input Resolutions up to 1080P@60Hz up to 1080P@60Hz Output Port 1 x LAN 1 x HDMI Output Resolutions up to 1080P@60Hz up to 1080P@60Hz Video Protocol H.265 Video Compression Audio Encoder Decoder... -
Page 11: Trouble Shooting
Trouble Shooting Do the network switch and the wireless router require specific settings? The network switch does not require specific settings. If the wireless router enables DHCP function, ensure the DHCP IP address assignments does not start with "169.254". Why can't the VDirector find online devices? Ensure the network switch's broadcasting function is not disabled intentionally. -
Page 12: Warranty
Warranty Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship on this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever. - Page 13 1.10.2 Replace this product with a direct replacement or with a similar product deemed by the Company to perform substantially the same function as the original product; or 1.10.3 Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.
