GinSan GS-401 Technical Sheet

TECHNICAL SHEET

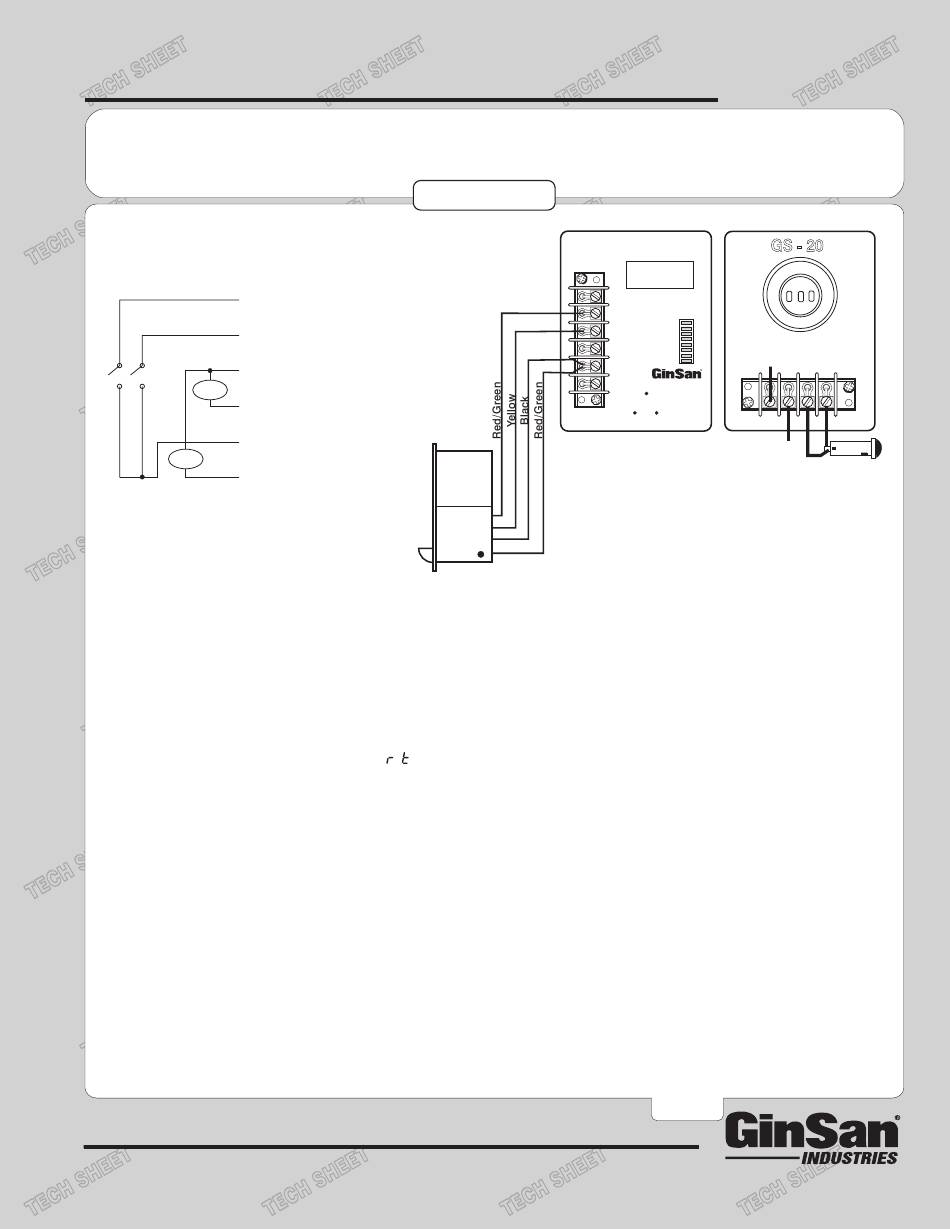

Wiring Instructions and Information for GS-401 with
optional GS-20 Low Time Alarm Buzzer
(5) A
(4)
Coin
Opt. (3)
Input
Aux
Input Load
) 2
(2
1)
(
GS-20
(A)

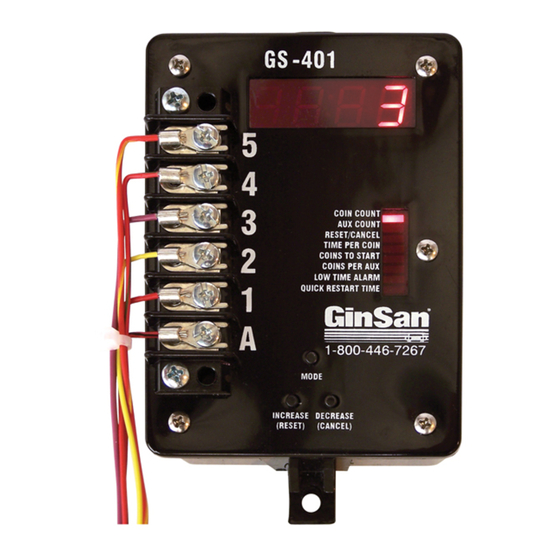

Timer Modes - Press the "MODE" button until the LED is lit next to the desired mode. The display will show the count
or setting of that mode.
No Mode - Displays time accumulated in seconds and counts down.
Coin Count - Displays the total amount of coins deposited. The amount will change each time a coin is deposited.
"Coin Count" ranges from 0 to 9999.
Aux Count - Displays the total amount of pulses received on the Aux input. The amount will change each time an
Aux input is received. "Aux Count" ranges from of 0 to 9999.
Reset/Cancel - While in the Reset/Cancel mode, the timed cycle will be cancelled when the Decrease (Cancel) button
pressed. The Coin and Aux counts will be reset when the Increase (Reset) button is pressed and held
until the display reads
Time per Coin - Time per Coin is the amount of time in seconds each coin is worth. Press the "Increase" or "Decrease"
button to change the value between 1 to 511 seconds. i.e. A wash cost $1.25 for 4 minutes. Therefore 4
minutes x 60 seconds = 240 seconds. Take 240 sec divide by 5 coins to start = 48 sec per coin.
Coins to Start - Coins to Start is the amount of coins it takes to start the timer. Press the "Increase" or "Decrease" button
to change the value between 1 to 31 coins.
Coins per Aux -
Coins per Aux is the amount of coins it takes to equal one aux pulse; i.e. 1 aux pulse = $1.00 = 4
quarters, therefore the Coins per Aux = 4. Press the "Increase" or "Decrease" button to change the value
between 1 to 31 coins.
Low Time Alarm - Low Time Alarm mode allows you to adjust how much time is left when the Low Time Alarm turns on.
Press the "Increase" or "Decrease" button to change the value between 1 to 120 seconds.
Quick Restart Time - During the Quick Restart Time, customer can insert 1 coin to restart the wash after the timer has turned
off. Press the "Increase" or "Decrease" button to change the value between 1 to 60 seconds.
3611 3 Mile Road NW
PN 77108
ux
input
Coi
n input
24
VAC Common
4 VAC Load (Timed Hot)
24VAC Hot
Sensorton
Low Time Alarm
Acceptor
Output
PN 77042
takes about 3 seconds).
S
Grand Rapids, MI 49534
GS- 4 0 1
5
4
3
2
1
A
INCREASE
(RESET)
Coin
www.GinSan.com
877.785.1897
Optional Low Time Alarm
(77063)
GS - 20
0000
COIN COUNT
AUX COUNT
RESET/CANCEL
TIME PER COIN
To A
COINS TO START
COINS PER AUX
terminal
LOW TIME ALARM
QUICK RESTART TIME
MODE
DECREASE
(CANCEL)
To 3
terminal
Page 1
T / G - 4 4 3
Optional
24VAC Light
9 / 1 5
