Summary of Contents for Fumex PORTA-FLEX 200

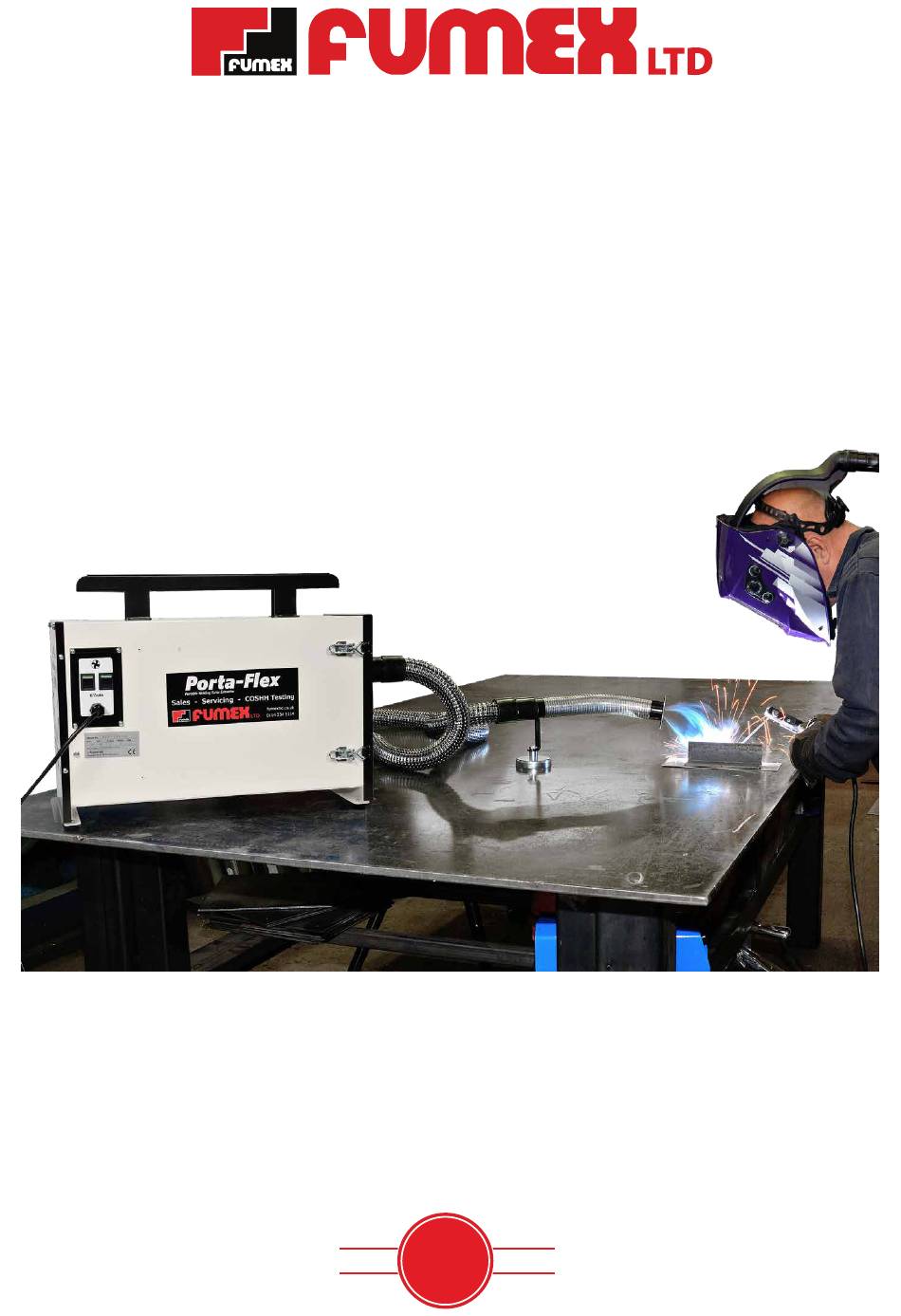

- Page 1 Operation & Maintenance User Manual for PORTA-FLEX 200 & 400 (Twin Motor) 2020 1980 YEARS...
- Page 2 Page 6 Overview Thank you for purchasing the Fumex Porta-Flex 200/400 welding fume extractor. Our Porta-Flex 200 & 400 are user- friendly, portable units, designed to capture harmful welding gases at source. Ideal for use in confined spaces or difficult to reach locations, making them ideal for general service and repair work.
- Page 3 Quick Start Guide BEFORE USE Check the power supply cable for damage, if any damage is visible, it must only be replaced by the manufacturer or qualified electrician to avoid a hazard. Check that the extraction hose is not split or damaged, as this will reduce the efficiency of the unit. To protect against electrical shock, do not immerse the power supply cable, plug or extractor in water or other liquid.
- Page 4 The Porta-Flex must be disconnected from the power supply BEFORE undertaking any maintenance. All Porta-Flex 200 or 400 units should be COSHH tested at least every 14 months, to ensure compliance to HSE 258. Fumex Ltd have a team of dedicated COSHH engineers who operate all over the UK, please call us for details.
- Page 5 Slowly withdraw the old filter horizontally and Install a new Fumex cartridge filter into the place in a plastic bag and then seal the bag extractor. Using non-genuine filters will void the with tape.
- Page 6 1+1kW - 110V - 50~60Hz - Air flow: 230m3/h DIM. 200/400 650mm(W)x250mm(D)x450mm(H) Weight 15Kg (Unit only) Fumex Limited, Unit 11/10, Hillfoot Industrial Estate, 23 Hoyland Road, Sheffield S3 8AB Tel: 0114 234 1114, Fax: 0114 234 1441, Email: info@fumexltd.co.uk Web: www.fumexltd.co.uk Doc REF: QMSQF 32...
