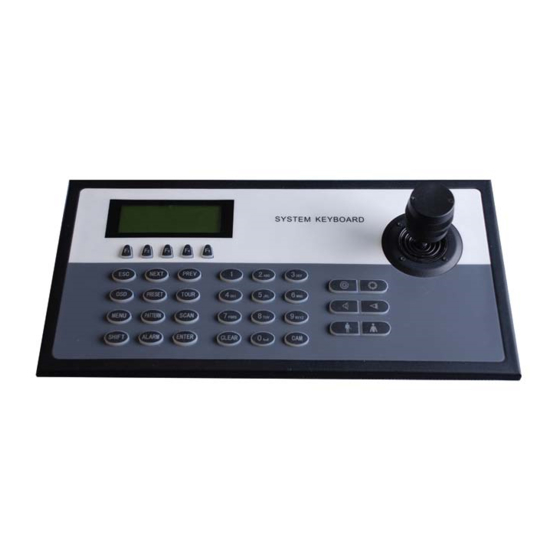

5820B Keyboard Control NVR Guide
Tiandy Technical Support Team 25/08/2020
Description
Manual to introduce how to use 5820B Keyboard control NVR.
Prerequisites
◾ 5820B Keyboard
◾ NVR
Set up steps
1. Enter Keyboard Settings

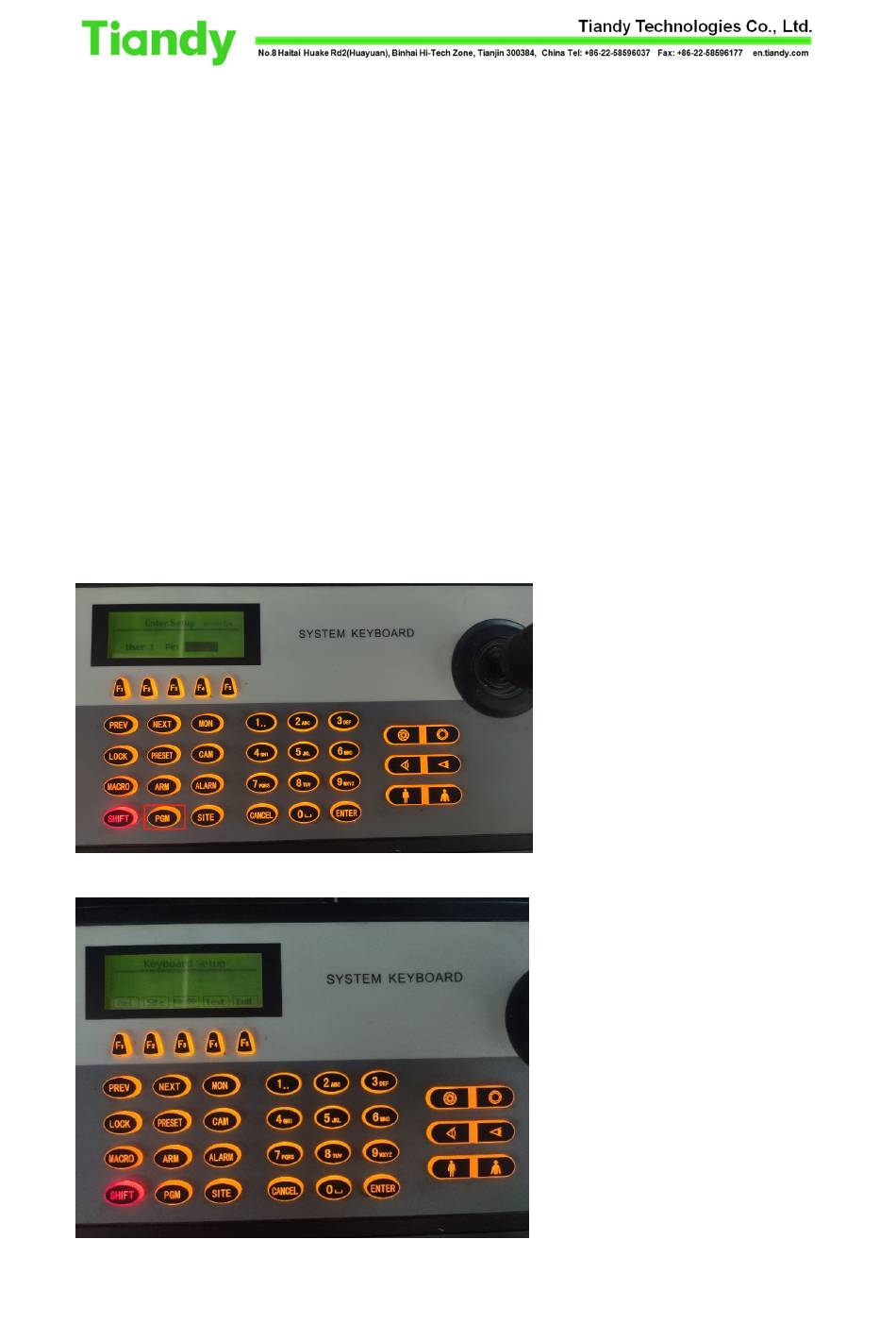

(1) Press 【PGM】 button; then Power on. Then you can see the Keyboard setup login
interface.
(2) Keyboard supports 4 users (user ID is 1, 2, 3, 4), 6‐digit password and default password is
000000.
(3) After input the username and password. Press 【ENTER】, and you can see the setup menu.
