Summary of Contents for Smarttech LPC-2.DI6
- Page 1 USER MANUAL Longo programmable controller LPC-2.DI6 Digital Input module Version 5 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0) 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
- Page 2 Longo programmable controller LPC-2.DI6 Written by SMARTEH d.o.o. Copyright © 2012, SMARTEH d.o.o. User Manual Document Version: 005 July 1, 2012...
- Page 3 Longo programmable controller LPC-2.DI6 STANDARDS AND PROVISIONS: Standards, recommendations, regulations and provisions of the country in which the devices will operate, must be considered while planning and setting up electrical devices. Work on 100 .. 240 V AC network is allowed for authorized personnel only.
- Page 4 Longo programmable controller LPC-2.DI6 Longo programmable controller LPC-2.DI6 1 DESCRIPTION...................1 2 FEATURES..................2 3 INSTALLATION..................3 3.1 Connection scheme..............3 3.2 Mounting instructions..............5 3.3 Module labeling................6 4 TECHNICAL SPECIFICATIONS..............7 5 CHANGES ..................8 6 NOTES...................9...
- Page 5 Longo programmable controller LPC-2.DI6 1 DESCRIPTION LPC-2.DI6 is used as standard digital input module for eight connections to 24 V DC external sources. Module is galvanic isolated from the rest of the LPC-2 system. It can be used in a wide range of operation where sensors and devices connected to the LPC-2.DI6 module provide 24 V DC signals...

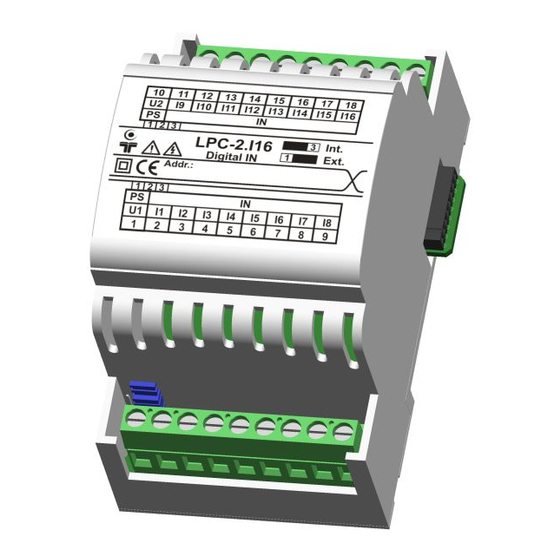

- Page 6 Longo programmable controller LPC-2.DI6 2 FEATURES Figure 1: LPC-2.DI6 module. Table 1: Technical data Eight external 24 V DC digital inputs, galvanic isolated Flexible input for wide use of operation Standard DIN EN50022-35 rail mounting...
-
Page 7: Installation
Longo programmable controller LPC-2.DI6 3 INSTALLATION 3.1 Connection scheme Figure 2: Connection scheme LED5 - LED8 LED1 - LED4 24 V Table 2: IN IN1.1 (I+) Digital input in reference to IN1.2, 0..24 V DC 24 V DC digital input IN1.2 (I-) - Page 8 Longo programmable controller LPC-2.DI6 Table 2: IN IN5.9 (I+) Digital input in reference to IN5.10, 0..24 V DC 24 V DC digital input IN5.10 (I-) Reference Reference to 24 V DC IN6.11 (I+) Digital input in reference to IN6.12, 0..24 V DC 24 V DC digital input IN6.12 (I-)
-
Page 9: Mounting Instructions
Mounting instructions: 1. Switch OFF main power supply. 2. Mount LPC-2.DI6 module to the provided place inside an electrical panel (DIN EN50022-35 rail mounting). 3. Mount other LPC-2 modules (if required). Mount each module to the DIN rail first, then attach modules together through K1 and K2 connectors. -
Page 10: Module Labeling
Longo programmable controller LPC-2.DI6 3.3 Module labeling Figure 5: Labels on housing Label 1 (MC3 sample): Label 2 (MC3 sample): Label 1 description: 1. LPC-2.MC3 is the full product name. 2. P/N:225MC3040001001 is the part number. 225 – general code for product family, •... -
Page 11: Technical Specifications
Longo programmable controller LPC-2.DI6 4 TECHNICAL SPECIFICATIONS Table 6: Technical specifications Power supply from internal BUS Power consumption 0.25 W Nominal input voltage 24 V DC Max. input voltage 35 V DC Number of digital inputs Off / “0” input signal voltage <... - Page 12 Longo programmable controller LPC-2.DI6 5 CHANGES The following table describes all the changes to the document. Date Description 1.7.2012 CGP General update . 11.5.2010 Updated warranty permanence. 30.6.2005 The initial version, issued as LPC-2.DI6 module UserManual.
- Page 13 Longo programmable controller LPC-2.DI6 6 NOTES...
