omni

WIRELESS OMNIDIRECTIONAL SPEAKER

User manual

Table of Contents

Need help?

Do you have a question about the omni and is the answer not in the manual?

Questions and answers

Summary of Contents for SPOTTUNE omni

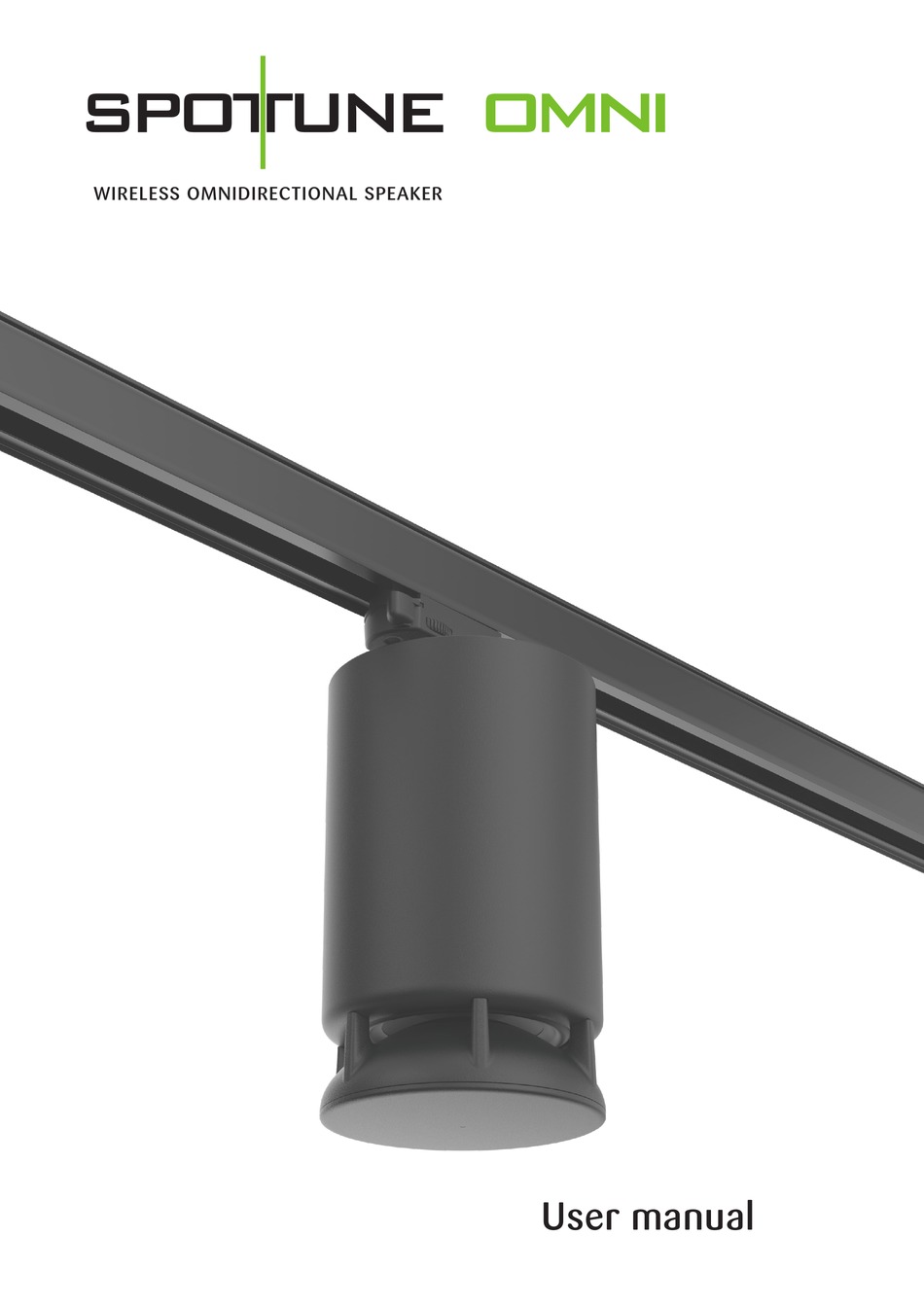

Page 1 WIRELESS OMNIDIRECTIONAL SPEAKER User manual...
Page 3: Table Of Contents
INDEX Important remarks Page 4 Important safety instructions Page 6 Introduction Page 8 Setting up Page 10 Packaging content Page 12 Technical speciﬁcations Page 13 Compliance & License Page 14...
Page 4: Important Remarks
IMPORTANT REMARKS WARNING Risk of electric shock Do not open The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to per- sons.
Page 5 Take to the nearest electrical and electronic waste treatment centre. NOTE Spottune company accepts no liability for any damage that may be caused to people, ani- mal or objects due to failure to comply with the warnings above. 5 5 5 5...
Page 6: Important Safety Instructions
Switching off the TRACK ADAPTOR GLOBAL GA 69 all the functions and light indica- tors of the SpotTune Omni will be stopped and fully disconnected from mains is done. TRACK ADAPTER GLOBAL GA 69 connects with the Nordic Aluminium Lighting Track system.
Page 7 Equipment is connected to a socket-outlet with earthing connection by means of a pow- er cord. The marking information is located at the bottom of apparatus. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shal not l be placed on the apparatus.
Page 8: Introduction
INTRODUCTION Spottune Omni The Spottune Omni speaker is acoustically designed to radiate sound in all directions whereas a traditional loudspeaker is optimized toward a frontal listening position “Sweet spot listening”. The 360° sound radiation is advantageous in environments where the aim is to evenly distribute the sound to give the same listening experience across the room.
Page 9 I or II Pair button. For pairing speaker with Connection established / GREEN light ready Spottune Stream - Transmitter RED flash No connection to Spottune Stream RED light Standby, no music signal from stream.
Page 10: Setting Up
Nordic aluminium will not be liable for. Unbox and connect Spottune Omni speaker to power source, at its final place ment, following the in- structions below. Choose the phase (1, 2 or 3) before fastening into the track or afterwards.
Page 11 • Spottune Omni is automatically installed as “ZONE 1” - if you want to change the speaker to “ZONE 2” press & hold for 2 sec “Zone button” on Spottune Omni speaker, to toggle between “ZONE 1” and“ZONE 2”. •...
Page 12: Packaging Content
PACKAGING CONTENT Spottune Omni packaging contains: • 1x Spottune Omni speaker - For TRACK: Mounted with TRACK ADAPTOR GLOBAL GA 69 - For CORD: Mounted with 5 meter, double insulated cord. • User Manual...
Page 13: Technical Specifications
White / Black / Grey Speciﬁcations Wireless Smart Speaker, Digital amplification DSP Bass extension Full-tone closed box system Acoustic 3D design Omni (360°) Sound radiation Powerful 4-inch extended range-driver Plug n’ Play Frequency Audio frequency range 50-15000Hz Max SPL 100dB Ampliﬁcation...
Page 14: Compliance & License
COMPLIANCE & LICENSE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation.
Page 16 I Denmark www.spottune.com...
