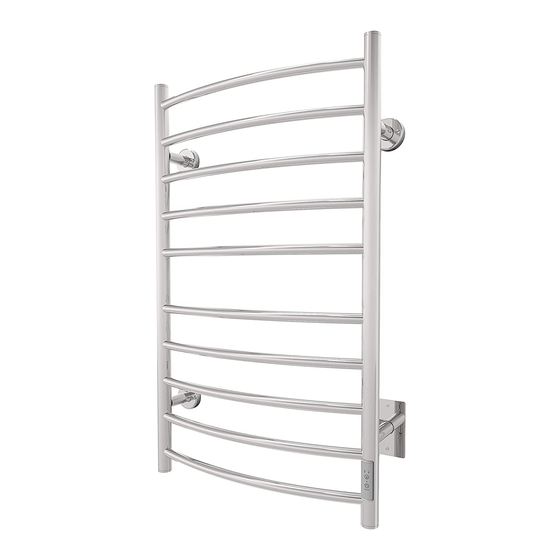

towel warmer
Model OD-0910
SPECIFICATION
Voltage: AC120V
Rated power: 100 W (OD-0910-SS, OD-0910-BR) 135 W (OD-0910-MB)
Unit size: 870 X 530 mm
This towel warmer is intended for the use in bathrooms or laundry areas. Read the instruc-
tions carefully before operating.
1
8
Please read the wall-mounted installation carefully to understand how to install on your ideal location of the wall.
Please use the services of a certified electrician for the apparent wireless installation of this product.
Make sure to complete the installation before using it.
Plug the power cord into an electrical outlet for the apparent wire installation.
Switch ON/OFF : Press button ON/OFF, product will start to work, if you want to stop it, press the button again.
The timer can be adjusted to 2 h (hour) or 4 h (hour). Press the button to select the right time.
Please turn it off and take the plug out from the outlet if you are not using it.
Frequency: 60Hz
3+1
3+1
Hardwire installation
4
8
84.00 mm
115.00 mm
C:\dessin classé compagnie\Odass\round tube.asm
70.00 mm
bolt
2
1
wire hole
1
92.00 mm
