Summary of Contents for RC Systems SenSmart 6000

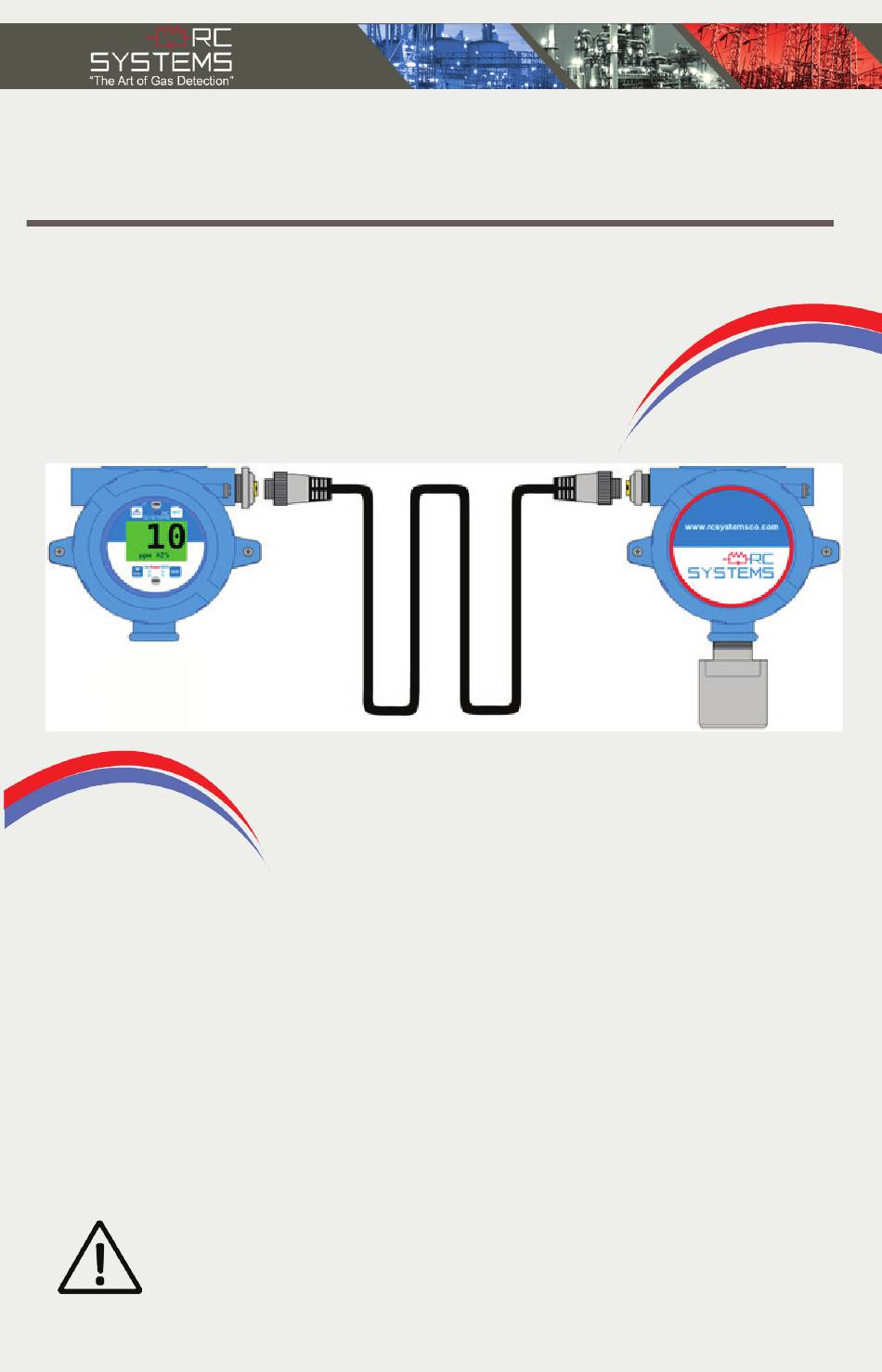

- Page 1 Remote Sensor SenSmart 6000 Installation Guide Flammable & Toxic Gas Detectors Smart Alarm Controllers Fire & Gas System Engineering Technical Service & Support Warning: Read & understand contents of this manual prior to operation. Failure to do so could result in serious injury or death.
-
Page 2: Getting Started
Gas Detector Installation and Power-up What you need (not included) Small Flathead Screwdriver Phillips Screwdriver (for poly enclosure) Wire (RC Systems recommends: Belden 3124A Multi-Conductor wire or equivalent.) Installation of Gas Detector Remove windowed lid from unit. AL Enclosure -... - Page 3 SenSmart 6000 wiring Connect 10-30VDC power lead to TB1.1. (See Figure 1) Connect Common (ground) lead to TB1.4 (See Figure 1) FOR ANALOG OUTPUT: Connect signal lead to TB1.2. (Channel 1) and/or TB1.3 (Channel 2) (4-20mA Out) (See Figure 1) FOR ETHERNET OUTPUT: Connect Ethernet cable to J3.
-
Page 4: Remote Sensor Installation
REMOTE SENSOR INSTALLATION SenSmart 6000 Remote Wiring Instructions Follow the steps below to first connect the SenSmart 6000 I/O Board to the Remote Sensor: Verify SenSmart 6000 is powered off. Remove lid from SenSmart 6000 and remote sensor Connect (24V) TB.1.1on the Remote sensor board to the10-30VDC power supply on SenSmart 6000 I/O board (TB1.1). - Page 5 REMOTE SENSOR INSTALLATION Connecting to the Remote Sensor Terminating Resistors: If using a single remote sensor the terminating resistor jumper should be placed in position A on the remote sensor board (J2) and the sensor transmitter (TR1) by lifting and repositioning. If using two remote sensors on a single comm port (daisy chained), the remote sensor installed closeest to the transmitter should have the terminating resistor jumper in...
- Page 6 Figure 2 - Remote Sensor Power Up www.rcsystemsco.com...
-
Page 8: Configuration Instructions
When configuring a remote sensor for the SenSmart 6900 DUAL transmitter, be sure to configure Channel 2 first. Entering Configuration Mode: From the Transmitter (SenSmart 6000): 1. Swipe Edit on the transmitter using a magnet. 2. Swipe Down until Comm Settings is highlighted. - Page 9 6. Swipe Edit to assign the selected channel to the Remote Option Board. (warning will appear “this will modify channel config” Swipe edit to select OK). 7. Highlight Exit Program Mode. 8. Swipe Edit to exit program mode. If using two Remote Sensor Option Boards, repeat the above configuration steps for Channel 1.
-
Page 10: Complete Setup
COMPLETE SETUP Finalize Installation Replace display and tighten thumb screws. Replace enclsoure lid. Apply power to unit and observe power up screen. After the warm up period, observe gas type and gas concentration on screen. Using the magnet wand, swipe Down Key on the display. Follow on-screen prompts to perform calibration. - Page 12 R.C. Systems provides 24/7 superior technical support from experts right here in our local facility. If you are in need of any assistance during the setup of this product, you may contact our main office and your call will be directed appropriately. At R.C.
